Page 25
'ahead' “Warm-up” Mode. Both engines will then be 'HI'
idle.
CAUTION: Adjust potentiometer R8 for 'HI' idle, only with the control lever in the
'AHEAD' detent and the indicator light blinking. Otherwise you may be
trying to adjust 'HI' idle when you are in 'LO' idle Mode.
7.2 PRIMARY STATION ISOLATION SWITCH
One SPST (single pole single throw) switch can be mounted at
the primary station (Station 1). When the switch is CLOSED,
control remains at the primary station and other stations cannot
take control. When the switch is OPEN, all stations can take
control by means of their station transfer button. Use a quality
toggle switch with screw connections and crimped wire
terminals. See Single Screw Figure 15 and Twin Screw Figure
14.
7.3 ALARM CAPABILITY
The MicroCommander Actuator offers a single alarm connection
that OPENS with a control power failure or circuit malfunction.
The 585 Actuator's alarm connection point is a single connection
Station
Isolation
8-Conductor
Cable
Port Actuator
Isolation
8-Conductor
Cable
Orange
White
Violet
White
Violet
1
2
1
-
+
8
7
6
5
4
3
2
1
Isolation
0660A-580
Violet
1
8
7
6
5
4
3
2
1
Violet
Starboard Actuator

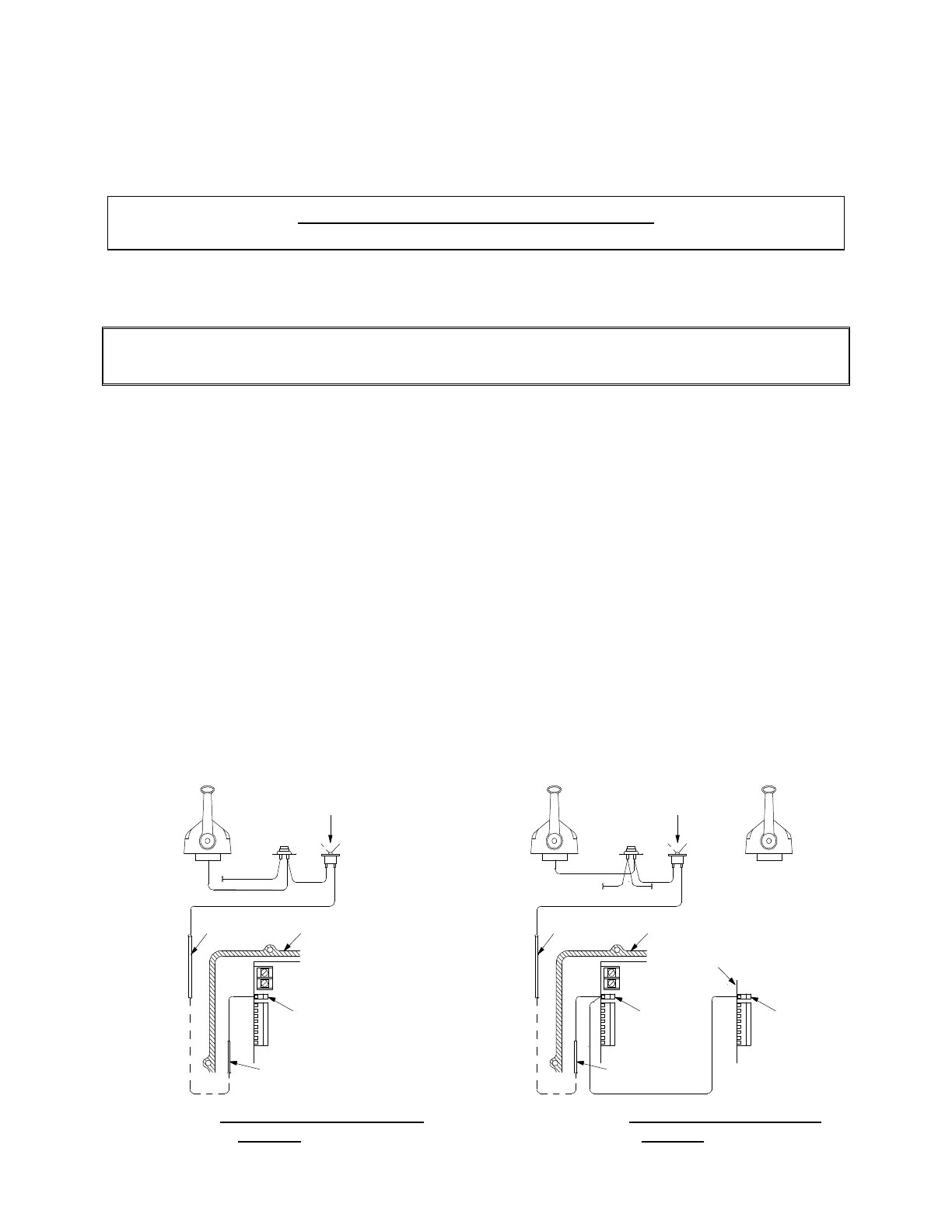

Figure 14 – Twin Screw – Primary
Station
Station
Isolation
8-Conductor
Cable
Actuator
Isolation
8-Conductor
Cable
0659A-580
Orange
White
Violet
White
Violet
1
2
1
-
+
8
7
6
5
4
3
2
1
Figure 15 – Single Screw – Primary
Station
