Page 6
underside, consider using a Weather Mounting Control Box
available from Mathers Controls Inc.
D) Retrofit applications will need to plan an adapter pad to cover
the old control cutout and to mount the control head.
Adapter and cover pads are available from Mathers Controls
Inc.
3.3 DC POWER SOURCE
The MicroCommander Actuator requires a battery source (12,
24 or 32 volts DC) protected by a 10 ampere circuit breaker. It
is not recommended to use engine starting batteries on 12 volt
systems, because the cranking voltage may be too low. It is
important to keep the length of power cable short to reduce
voltage drop. The 14 gauge twisted pair power cable, should
not exceed 20 feet (6m). If individual wires are used for supply
(+) and return ( - ) then the total wire length should not exceed
40 feet (12m).
DC Power Panel
Circuit Breaker
10 Ampere
Red
Black
To
Actuator
Off On
To DC Common
10460-585
Fuse
Battery Bank
12, 24, or 32 VDC
To
Actuator
Red
Black
To DC Common
Battery Bank
12, 24, or 32 VDC
Circuit Breaker
10 Ampere
Off On
Relay
Optional Key Switch or
On/Off Switch

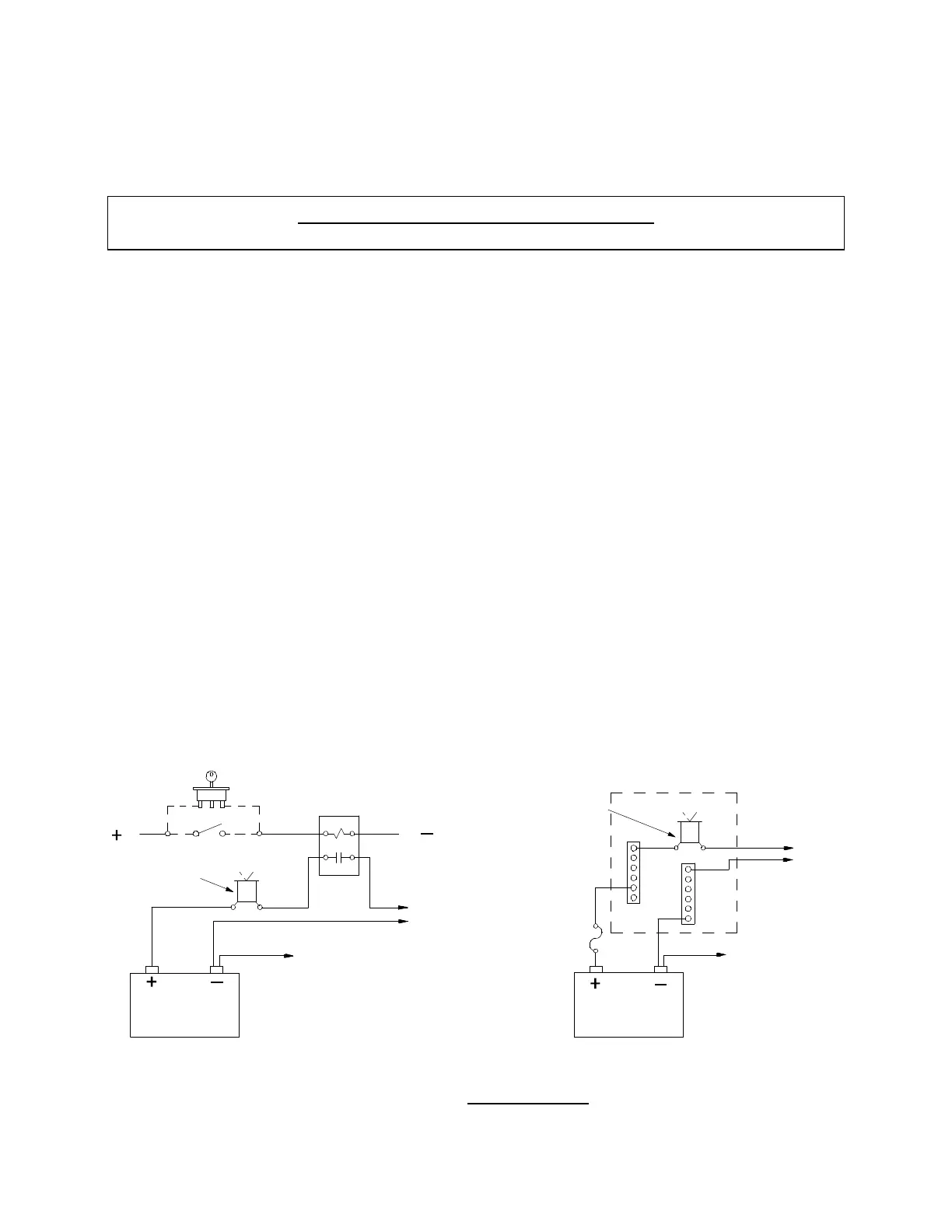

Figure 3 – Power Source
