9.3 OUTBOARD AND I/O CABLE CONNECTION KITS
• ENGINE MAKE
Chrysler 1975 & later 300465
Evinrude/Johnson 55-235 H.P. 1978 to date 301729
Mercury 40-300 H.P. 301901
Mercruiser I/O 302123
OMC Sterndrive I/O 300557
Volvo I/O Engine and out drive brackets are provided by
10. UNIVERSAL MOUNTING FOR 33C TYPE CABLE
(4,8mm)
7-3/8"
(187mm)
1/4"
Diameter
(6,4mm)
Lever
2-3/4"
Maximum
Movement
(70mm)
Ball Joint
31126
1/4"-28 UNF
Stud
Jam Nut
Shim
31638
Cable Clamp
31509
33C
Cable
Fabricate Bracket to match
dimensions shown
1"
(25,4mm)
TYP
7/32"
Diameter
(5,8mm)
90
10246A

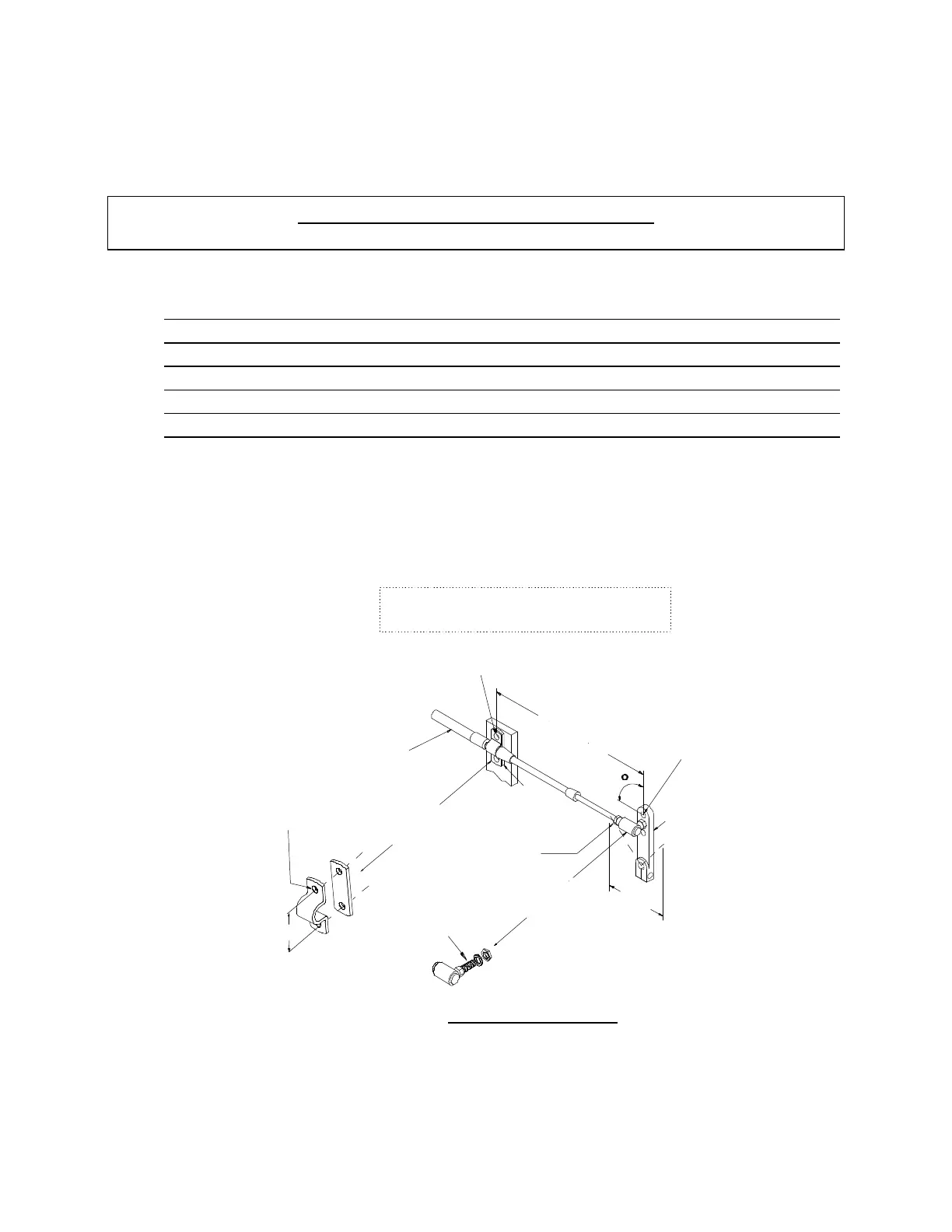

Figure 19 - Universal Mounting
