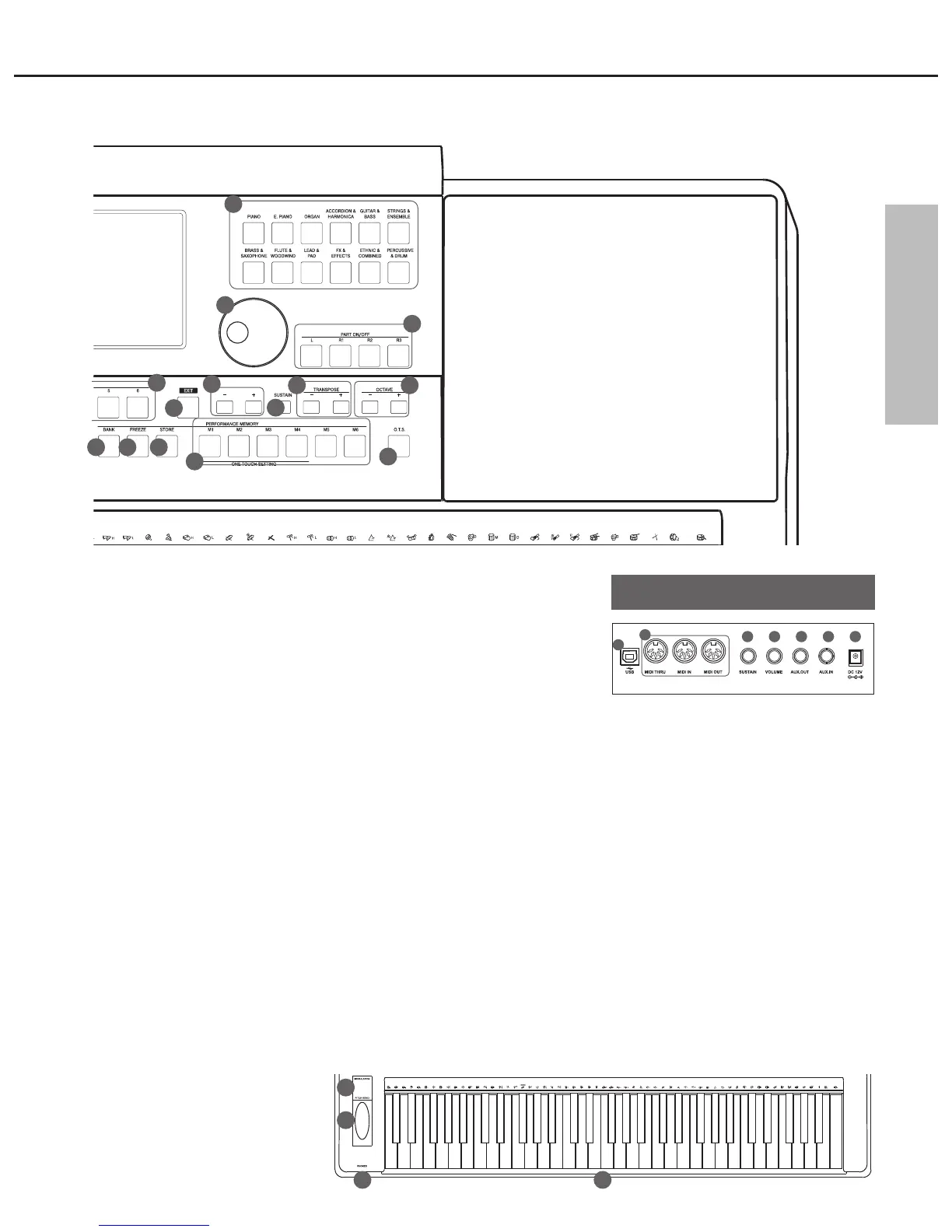

Panel & Display Description
27. MULTI PAD BUTTONS
Add spice to your performance
with special dynamic phrases
by pressing them.
28. VOICE BUTTONS
Enter the VOICE SELECT
interface. You’ll select a voice
category.
29. DATA DIAL
Change the value of current
selection.
30. PART ON/OFF BUTTONS
Turn LEFT, RIGHT1, RIGHT2,
RIGHT3 on or off individually.
31. EXIT BUTTON
Exit the current interface and
return to the previous display.
32. +, - BUTTONS
Increase and decrease the
value by 1.
33. SUSTAIN BUTTON
Turn the sustain effect on or
off.
34. TRANSPOSE+, TRANSPOSE-
BUTTONS
Adjust the TRANSPOSE value.
35. OCTAVE+, OCTAVE-
BUTTONS
Adjust the OCTAVE value.
36. BANK BUTTON
Select a performance memory
bank.
37. FREEZE BUTTON
Turn the FREEZE function on or
off.
38. STORE BUTTON
Save the panel setups to one of the
performance memories.
39. M1-M6 BUTTONS
PERFORMANCE MEMROY:
Recall the panel setups from one of
the performance memories.
O.T.S (M1-M4):
Call up all the settings (voice,
effect, etc) that match the current
style.
40. O.T.S. BUTTON
Switch to the O.T.S. function.
41. MODULATION BUTTON
Apply a vibrato effect.
42. PITCH BEND
Bend note up and down.
43. PHONES
Connect the headphones to the
keyboard.
44. USB PORT
Connect the USB storage device.
Rear Panel
1. USB JACK
Connect to a computer.
2. MIDI IN/OUT/THRU JACKS
Connect other products equipped
with a MIDI interface.
3. SUSTAIN JACK
Connect a sustain pedal.
4. VOLUME JACK
Connect a volume pedal.
5. AUX. OUT JACK
Connect to your amplifier/audio.
6. AUX. IN JACK
Connect any external audio source,
such as an MP3 or CD player.
7. DC 12V
Connect DC 12V power adaptor.
(Optional)
