SECTION - 6 DRIVE SYSTEM AND ENGINE INSTALLATION
90-899883183 DECEMBER 2007 Page 25 / 54

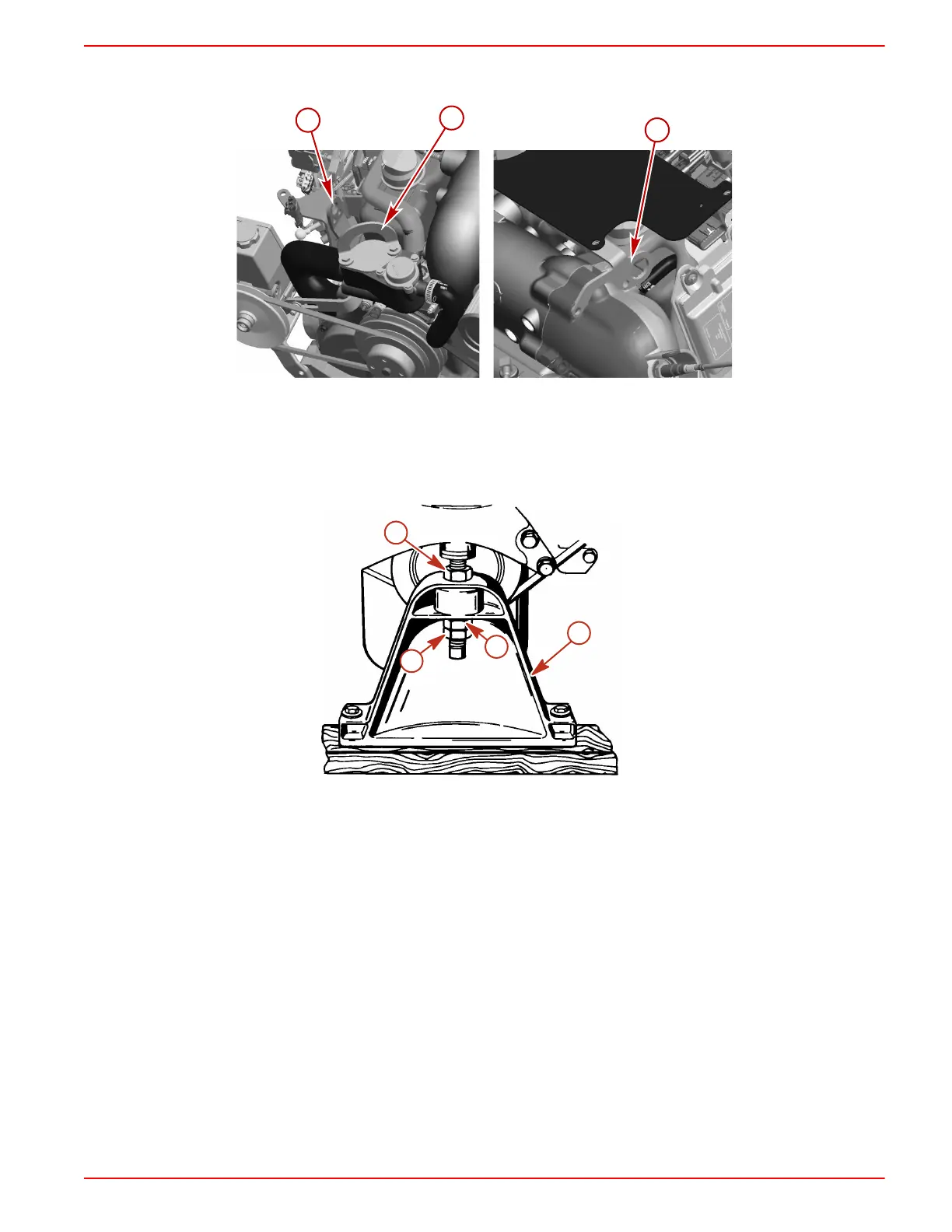

IMPORTANT: The center lifting eye (on the thermostat housing) is for engine alignment only. Do
not use the center lifting eye to lift the entire engine.
a - Engine lifting eyes b - Center lifting eye
2. Attach the front or side mounts.
3. On center engine mount models, loosen the engine mount adjustment nut, locknut, and jam
nut.
a
b
c
d
7787
Center engine mount model
a - Center engine mount
b - Adjusting nut
c - Locknut
d - Jam nut
