DRIVE SYSTEM AND ENGINE INSTALLATION SECTION - 6
Page 26 / 54 90-899883183 DECEMBER 2007

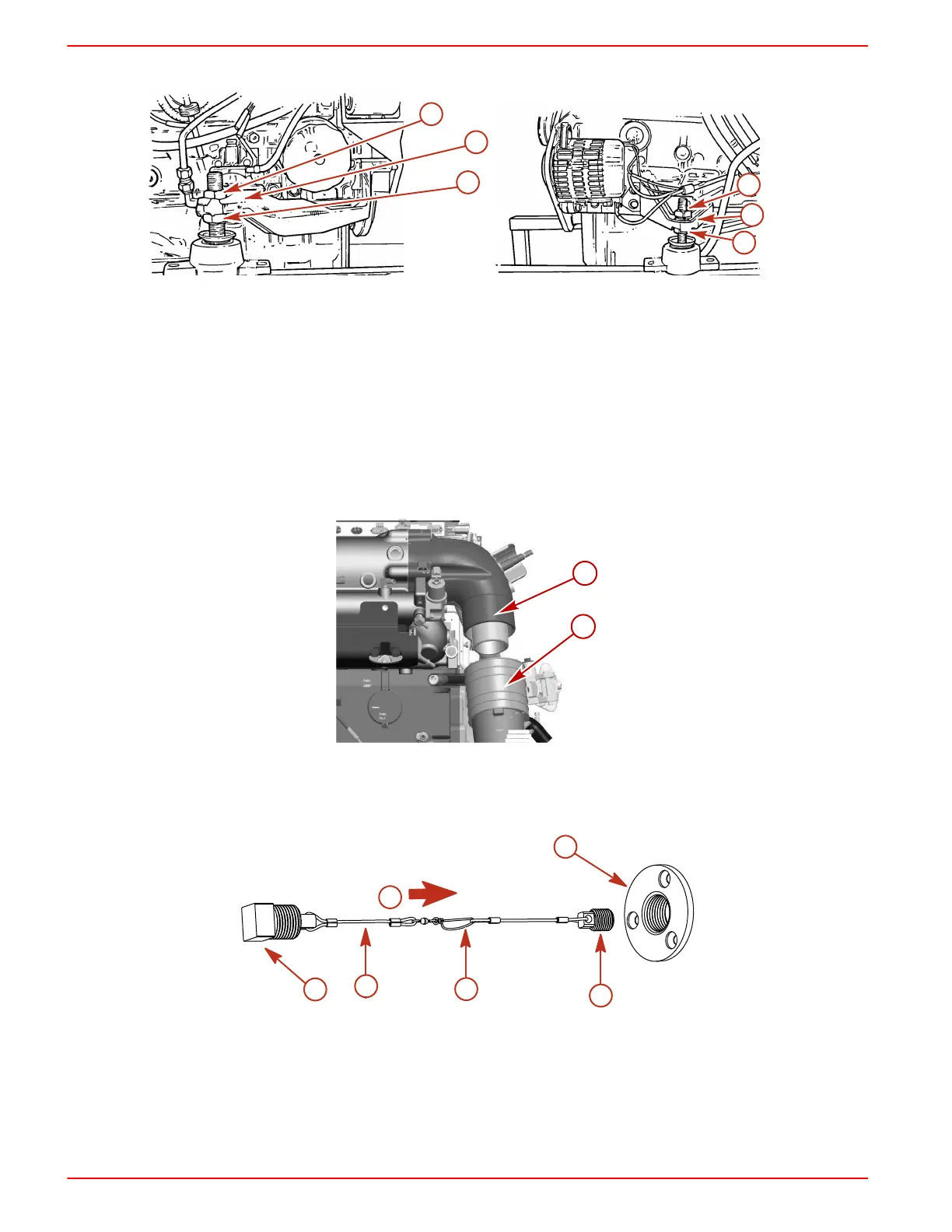

4. On side mount models, loosen both side engine mount adjustment nuts.
c
b
a
7789
7791
a
b
c
3.0 MPI side mount model
a - Engine mount (2)
b - Adjustment nut (2)
c - Jam nut (2)
NOTE:
On side mount models, an installation jig (91‑806794A1) can be used to align and adjust
engine mounts. Refer to instructions with the fixture for proper use.
5. Lift the engine into position in the boat using an overhead hoist.
6. Align the elbow with the exhaust tube.
7. To ease installation, apply soap and water into the exhaust tube.
a
b
32841
a - Exhaust elbow
b - Exhaust tube
8. If equipped with quick drain oil, complete the following procedure:
c
d
e
a
b
f
7771
a - Bilge drain plug
b - Tether
c - Quick oil drain hose plug
d - Flange
e - Toward interior of boat
f - Clip
a. Push the end of the oil drain hose out of the boat hull through the flange.
