POWERHEAD
Page 4A-48 90-855347R1 JANUARY 1999

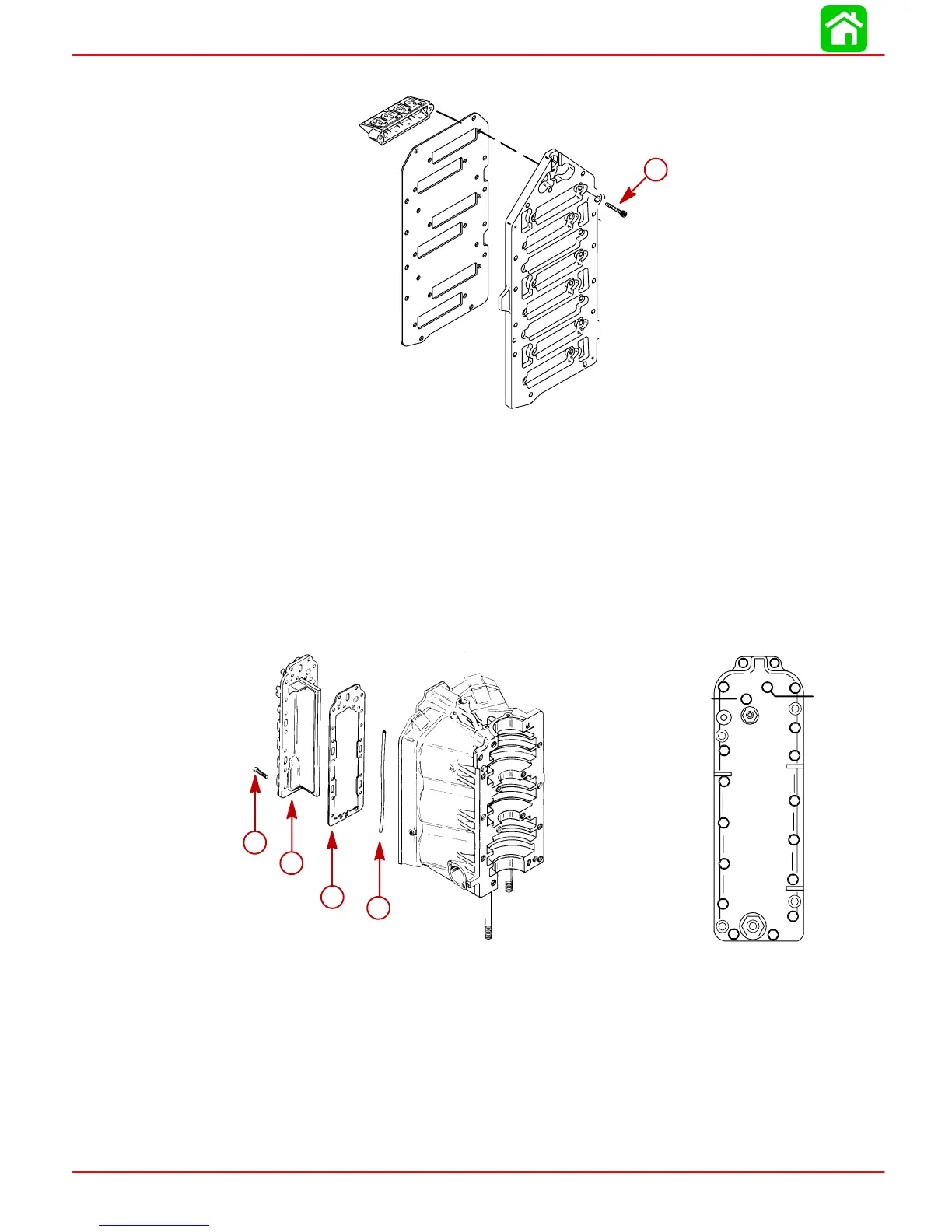

Assembly of Reed Blocks to Intake Manifold
a
a
a-Torque to 105 lb. in. (12 N·m)
Assembly of Exhaust Divider Plate to Block
1. Place exhaust divider seal into slot in block.
2. Install exhaust divider plate with gasket.
3. Clean bolt threads with Loctite 7649 Primer (92-809824).
4. Apply Loctite 271 to bolt threads and torque bolts to 16.5 Ib. ft. (22 Nm).
5. Torque exhaust divider plate bolts in following sequence. Torque bolts to 16.5 lb. ft.
(22 N·m). Add Loctite 271 to threads.
56167
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16 17
18
19
10
50805
a
b
c
d
a-Divider Seal
b-Exhaust Divider Plate
c-Gasket
d-Attaching Bolt
To Next Page
