LEFT HAND NON-RATCHETING
90-855347R1 JANUARY 1999 Page 6B-49

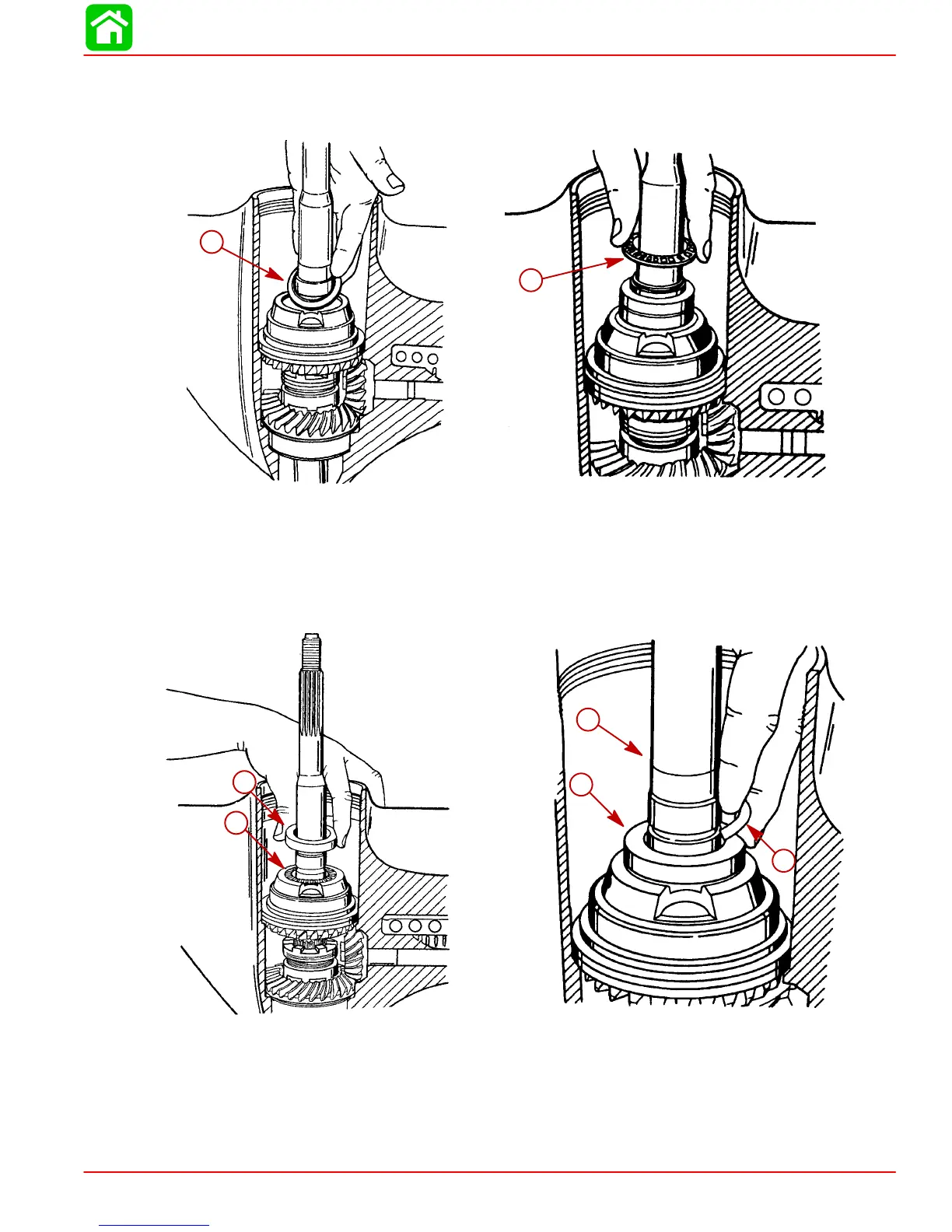

17. Install thrust race on top of bearing adaptor.
18. Apply Quicksilver Super Duty Gear Lubricant to small thrust bearing and install bear-
ing on thrust race.
55108
55107
a
b
a-Thrust Race
b-Thrust Bearing
19. Install thrust collar with its STEPPED SIDE DOWN toward the small thrust bearing.
20. Pull up slightly on the propeller shaft to gain access to the groove on the shaft for the
keepers. Install the 2 keepers into the groove and lower the propeller shaft.
55110
55109
c
d
e
a
b
a-Thrust Collar
b-Thrust Bearing
c-Propeller Shaft
d-Keepers (2)
e-Thrust Collar
