LEFT HAND NON-RATCHETING
Page 6B-50 90-855347R1 JANUARY 1999

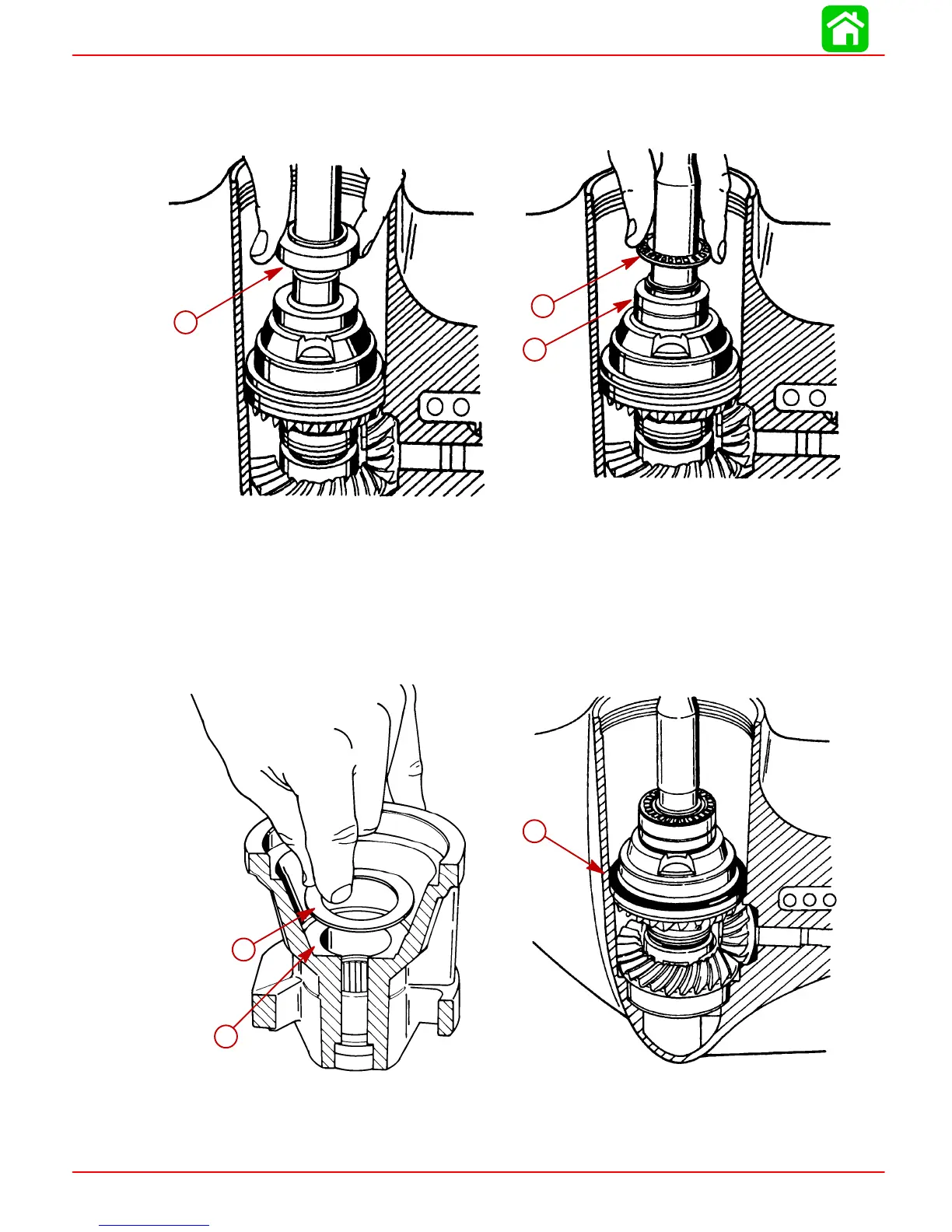

21. Install second thrust collar with its stepped side UP.
22. Apply Quicksilver Super Duty Gear Lubricant to the second thrust bearing and install
it on top of the second thrust collar.
55112
a
b
c
a-Thrust Collar
b-Thrust Bearing
c-Thrust Collar
23. Apply Quicksilver Super Duty Gear Lubricant to to second small thrust bearing race
and install race to the surface inside of the bearing carrier.
24. Apply Quicksilver 2-4-C w/Teflon Marine Lubricant to bearing carrier O-ring. Install
O-ring onto bearing adaptor.
55113
50779
a
b
c
a-Thrust Race
b-Bearing Carrier Race Surface
c-O-ring
