8 - ATTACHMENTS AND OPTIONAL EXTRA
8 - 14

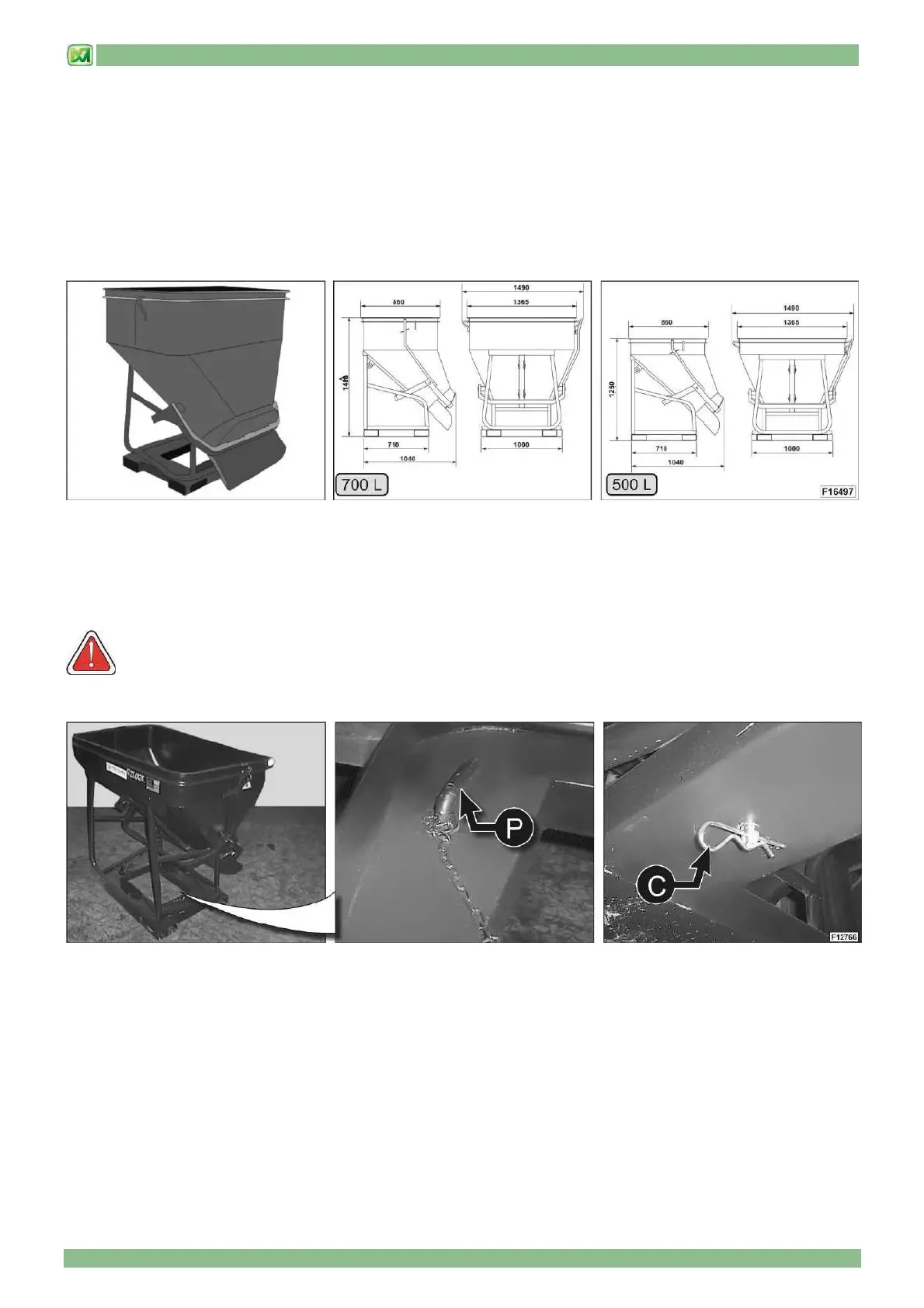

• CONCRETE SKIP
(500 l)
- Weight: 255 kg
- Door opening: Manual (A1400) or Hydraulic (A1410)
- Max capacity: 500 l
(700 l)
- Weight: 275 kg
- Door opening: Manual (A1420) or Hydraulic (A1430)
- Max capacity: 700 l
To assemble the concrete skip on the machine proceed as follows:
- Insert the forks into the appropriate locations
- Fix the forks to the concrete skip inserting the relative pins "P" into the relative slots,
- Insert spring clips "C".
The skip can be mounted both on the front or side in relation to the machine.
WARNING!
Always ensure that the pins are correctly mounted to prevent the risk of the tools accidentally becoming unhitched.
The concrete may be unloaded in two ways, according to the chosen configuration:
- MANUAL
- HYDRAULIC
MANUAL
Open the concrete unloading flap by means of lever "L".
Re-close once all the concrete has been unloaded.
SYSTEM
Connect the hydraulic hoses "I" of the attachment to the hydraulic fittings located on the boom head.
The concrete unloading flap is hydraulically opened by means of cylinder "M" controlled by the attachment control lever located
inside the cab (see relative paragraph in the chapter entitled "CONTROLS AND INSTRUMENTS").
Once operations are complete disconnect the hydraulic hoses "I" and replace in their respective holders.
