MI 3152(H) EurotestXC (2,5 kV) Tests and measurements
106
Fault Loop resistance is indicative and calculated from Uc result (without additional proportional
factors) according to: 






.

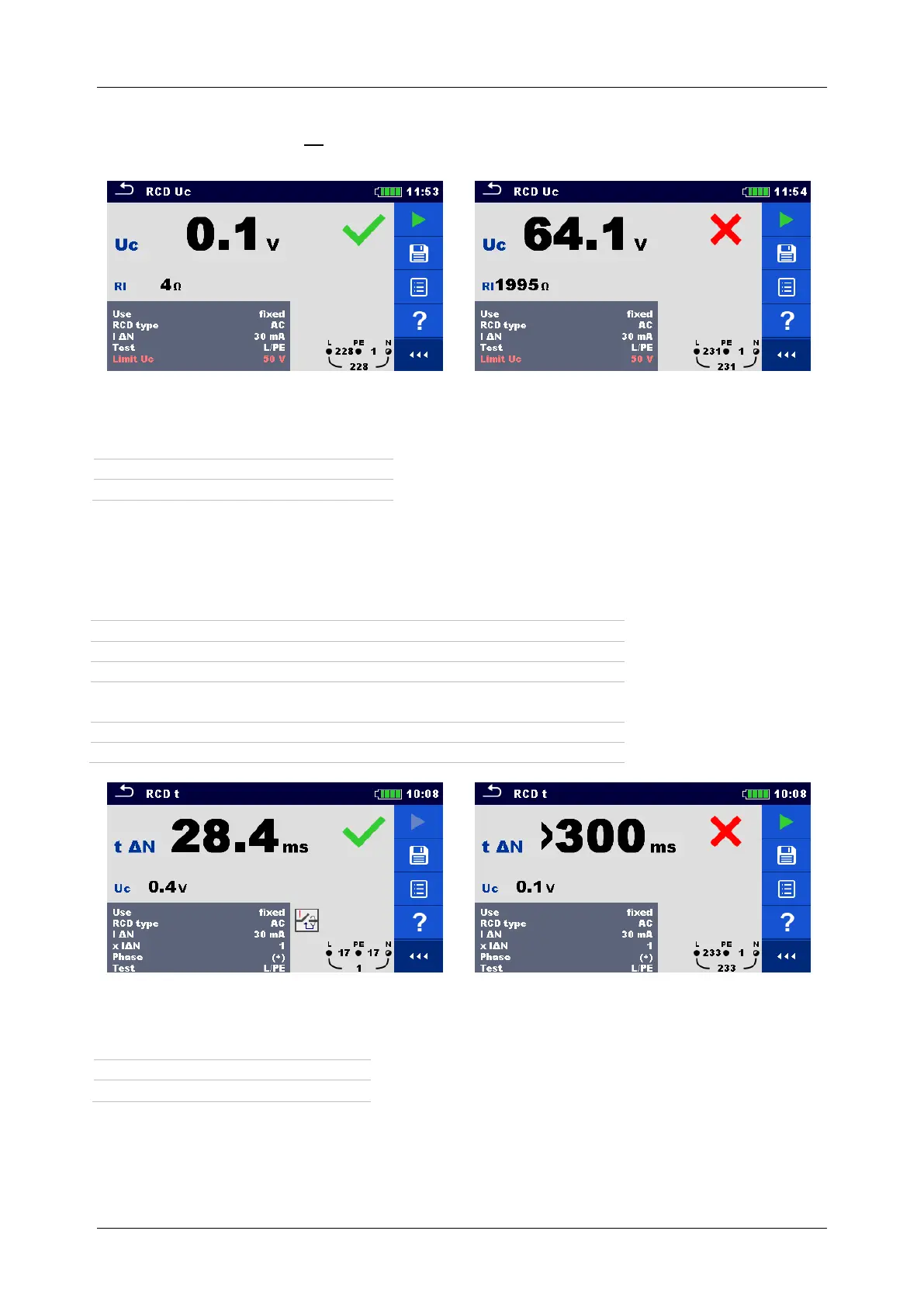

Figure 7.28: Examples of Contact voltage measurement result
Test result / sub-results
Uc
Contact voltage
Rl
Calculated fault loop resistance
7.7.2 RCD t – Trip-out time
Test procedure
 Enter the RCD t function.
 Set test parameters / limits.
 Connect test cable to the instrument.
 Connect test leads or Plug commander to the object under
test, see Figure 7.27.
 Start the measurement.
 Save results (optional).
Figure 7.29: Examples of Trip-out time measurement result
Test results / sub-results
t ∆N
Trip-out time
Uc
Contact voltage for rated I
N
