MI 3152(H) EurotestXC (2,5 kV) Tests and measurements
92
 Stop the measurement.
 Save results (optional).

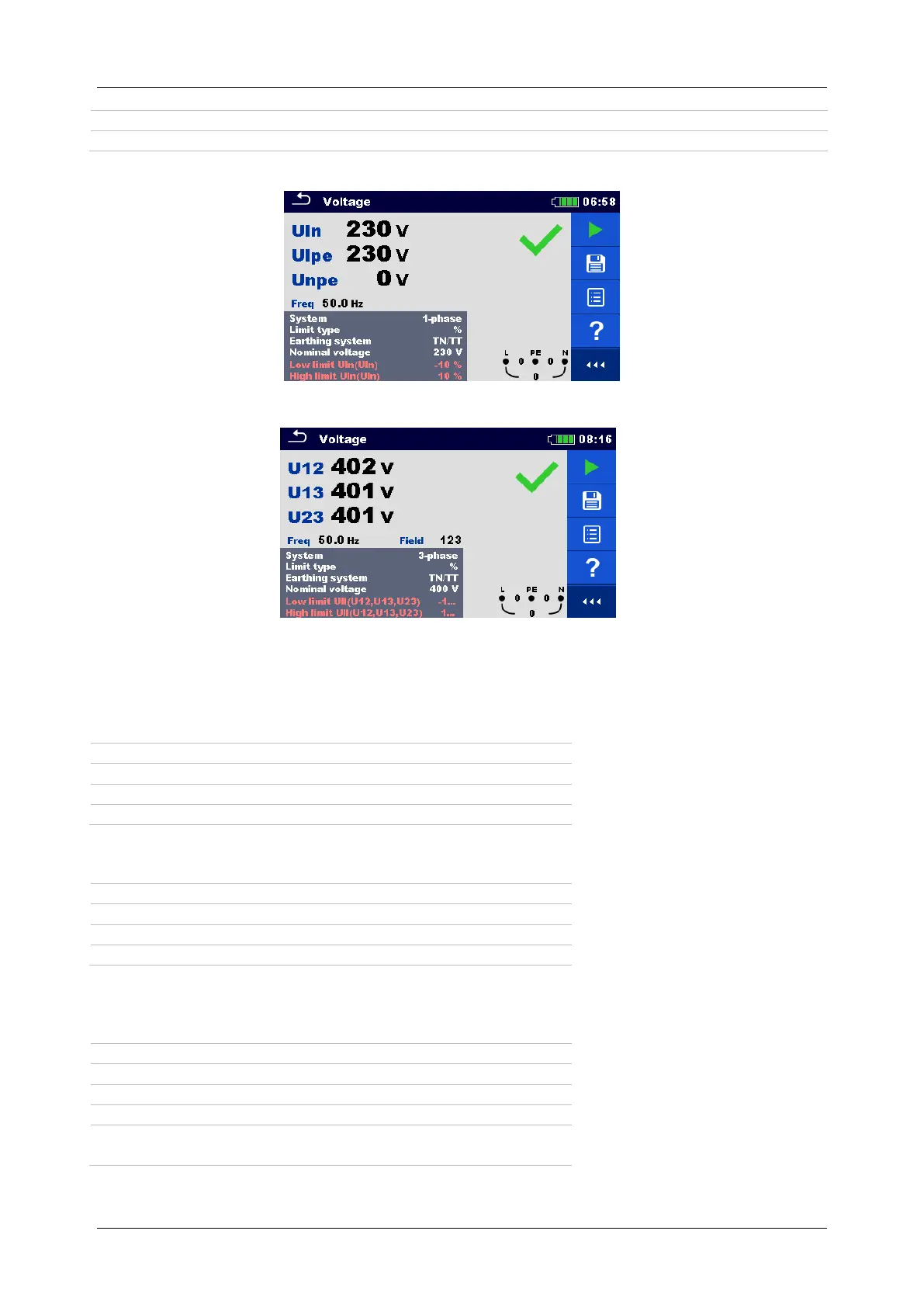

Figure 7.4: Example of Voltage measurement in single-phase system
Figure 7.5: Examples of Voltage measurement in three-phase system
Measurement results / sub-results
Single-phase TN/TT system
Uln
voltage between phase and neutral conductors
Ulpe
voltage between phase and protective conductors
Unpe
voltage between neutral and protective conductors
Freq
frequency
Single-phase IT earthing system
U12
voltage between phases L1 and L2
U1pe
voltage between phase L1 and PE
U2pe
voltage between phase L2 and PE
Freq
frequency
Three-phase TN/TT and IT system
U12
voltage between phases L1 and L2
U13
voltage between phases L1 and L3
U23
voltage between phases L2 and L3
Freq
frequency
Field
1.2.3 - correct connection – CW rotation sequence
3.2.1 - invalid connection – CCW rotation sequence
