7.17 Ro – Specific earth resistance

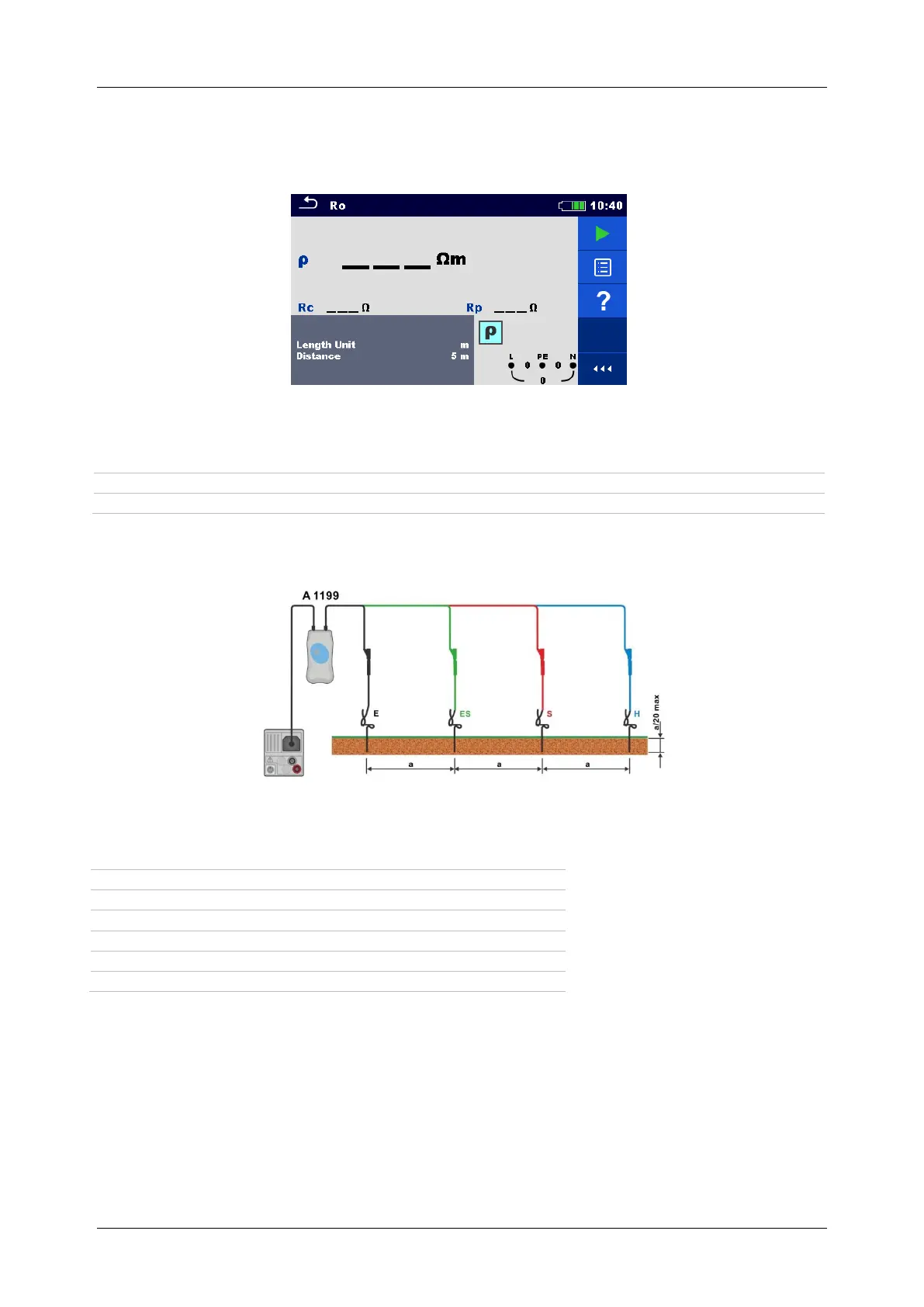

Figure 7.59: Earth Ro menu
Measurement parameters / limits
Length Unit
Length Unit [m, ft]
Distance
Distance between probes [0.1 m ... 29.9 m] or [1 ft ... 100 ft]
Connection diagram
Figure 7.60: Specific earth resistance measurement
Measurement procedure
 Enter the Ro function.
 Set test parameters / limits.
 Connect A 1199 adapter to the instrument.
 Connect test leads to earth probes, see Figure 7.60.
 Start the measurement.
 Save results (optional).
