7.24 llumination

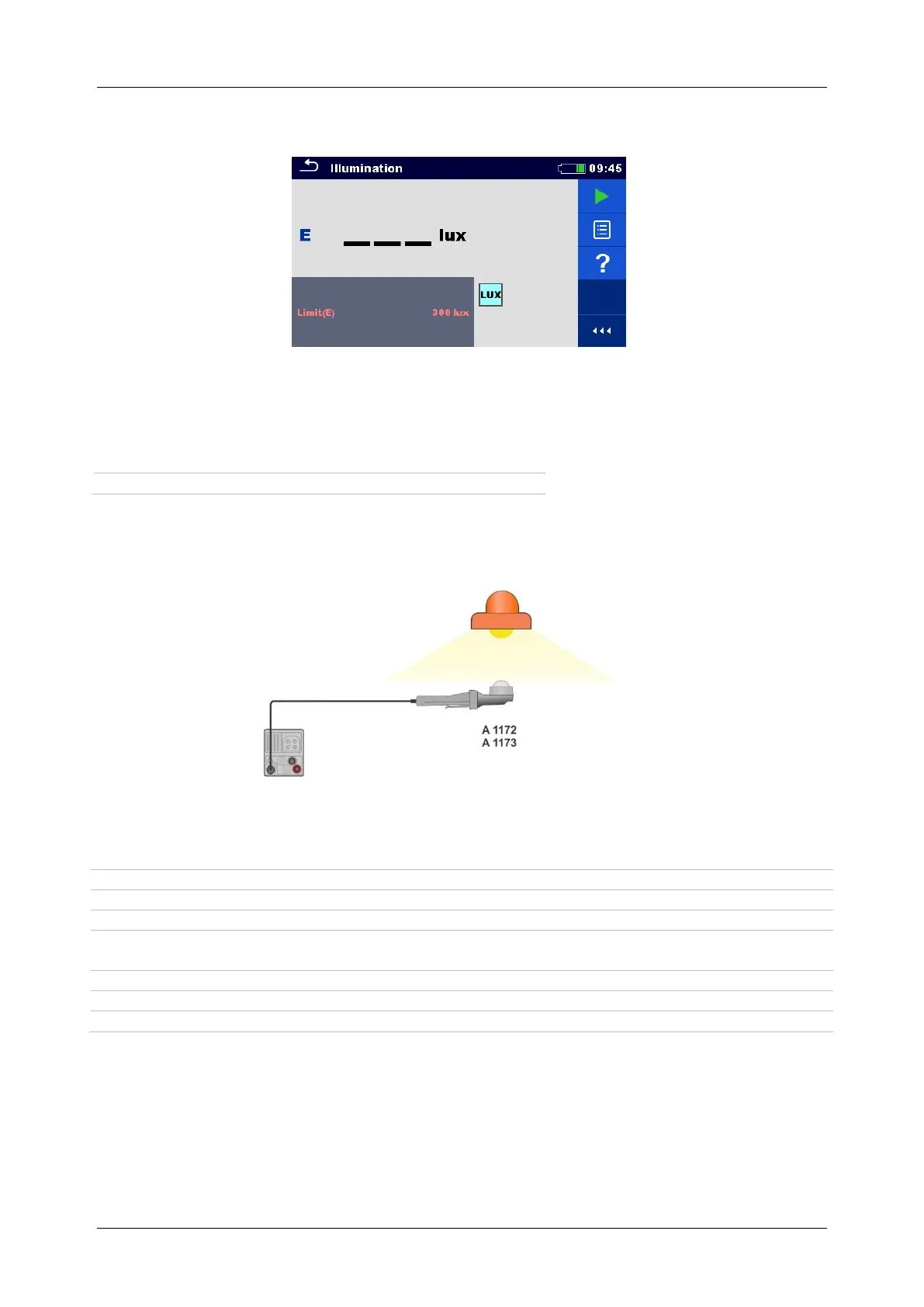

Figure 7.81: Illumination measurement menu
Measurement parameters / limits
Limit(E)
Minimum illumination [Off, 0.1 lux ... 20 klux]
Probe positioning
Figure 7.82: LUXmeter probe positioning
Measurement procedure
 Enter the Illumination function.
 Set test parameters / limits.
 Connect illumination sensor A 1172 or A 1173 to the instrument.
 Take the position of LUXmeter probe, see Figure 7.82.
Make sure that LUXmeter probe is turned on.
 Start the continuous measurement.
 Stop the measurement.
 Save results (optional).
