METREL EurotestXC MI 3152 User Manual

MI 3152(H) EurotestXC (2,5 kV) Tests and measurements
130

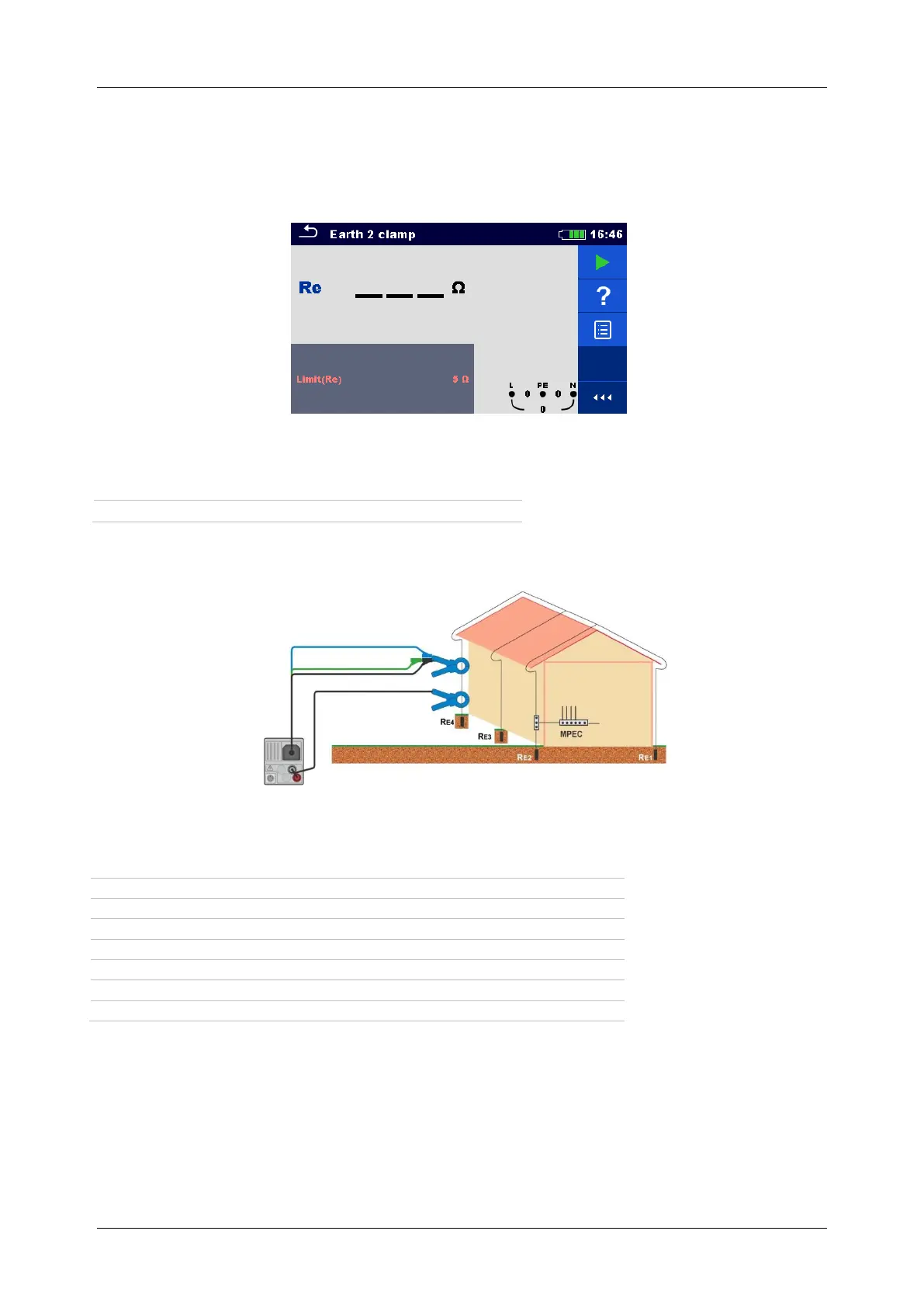

7.16 Earth 2 clamp – Contactless earthing resistance
measurement (with two current clamps)
Figure 7.56: Earth 2 clamps menu
Measurement parameters / limits
Limit(Re)
Maximum resistance [Off, 1  ... 30 ]
Connection diagram
Figure 7.57: Contactless earthing resistance measurement
Measurement procedure
 Enter the Earth 2 clamp function.
 Set test parameters / limits.
 Connect test cable and clamps to the instrument.
 Clamp on object under test, see Figure 7.57.
 Start the measurement.
 Stop the measurement.
 Save results (optional).
