MI 3152(H) EurotestXC (2,5 kV) Tests and measurements
138
7.20 Currents

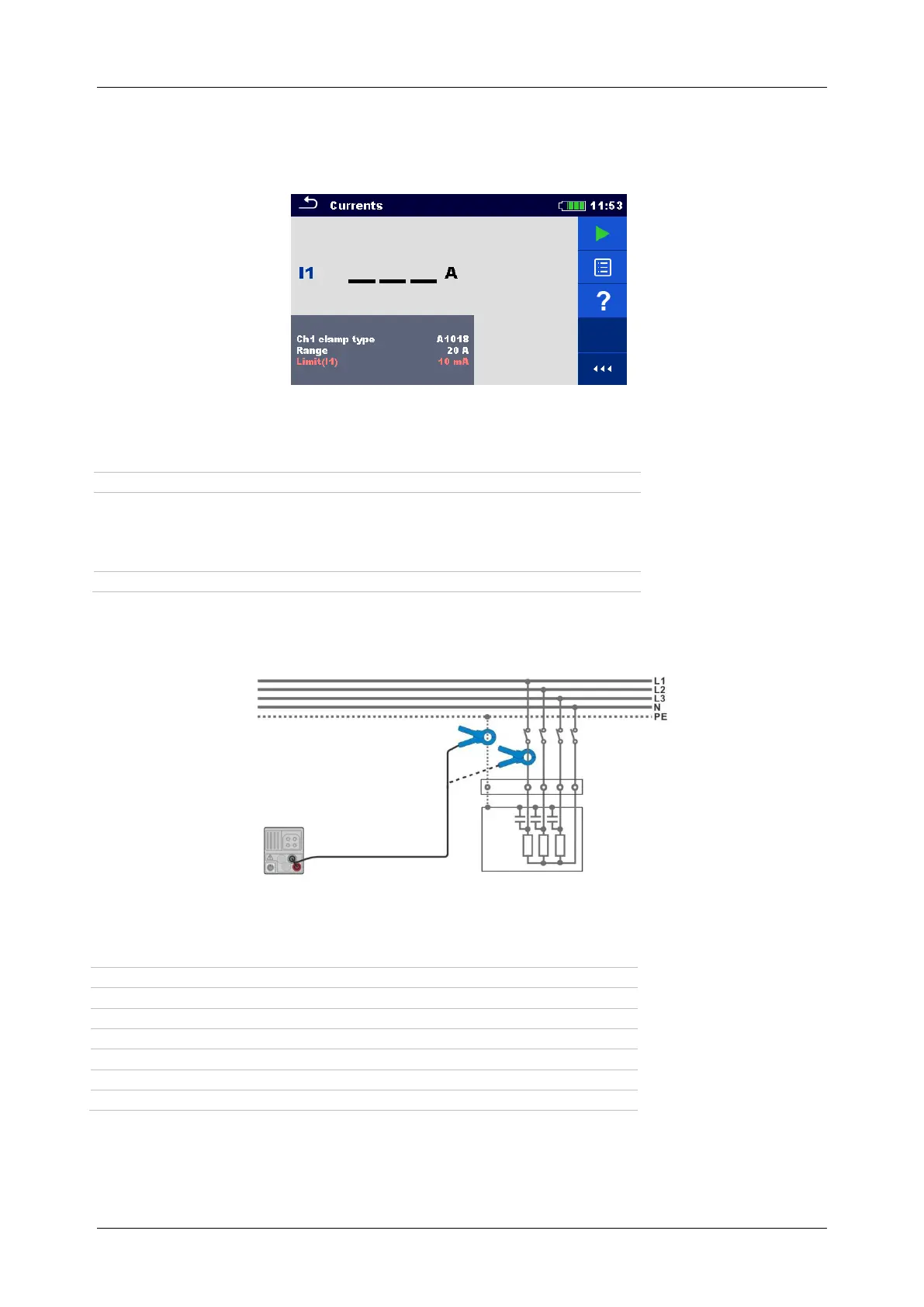

Figure 7.68: Current menu
Measurement parameters / limits
Ch1 clamp type
Current clamp adapter [A1018, A1019, A1391]
Range
Range for selected current clamp adapter
A1018 [20 A]
A1019 [20 A]
A1391 [40 A, 300 A]
Limit(I1)
Max. PE leakage [Off, 0.1 mA ... 100 mA]
Connection diagram
Figure 7.69: PE leakage and load current measurements
Measurement procedure
 Enter the Currents function.
 Set parameters / limits.
 Connect the current clamp to the instrument.
 Connect the clamp to the object under test, see Figure 7.69.
 Start the continuous measurement.
 Stop the measurement.
 Save results (optional).
