7.23 Rpe – PE conductor resistance

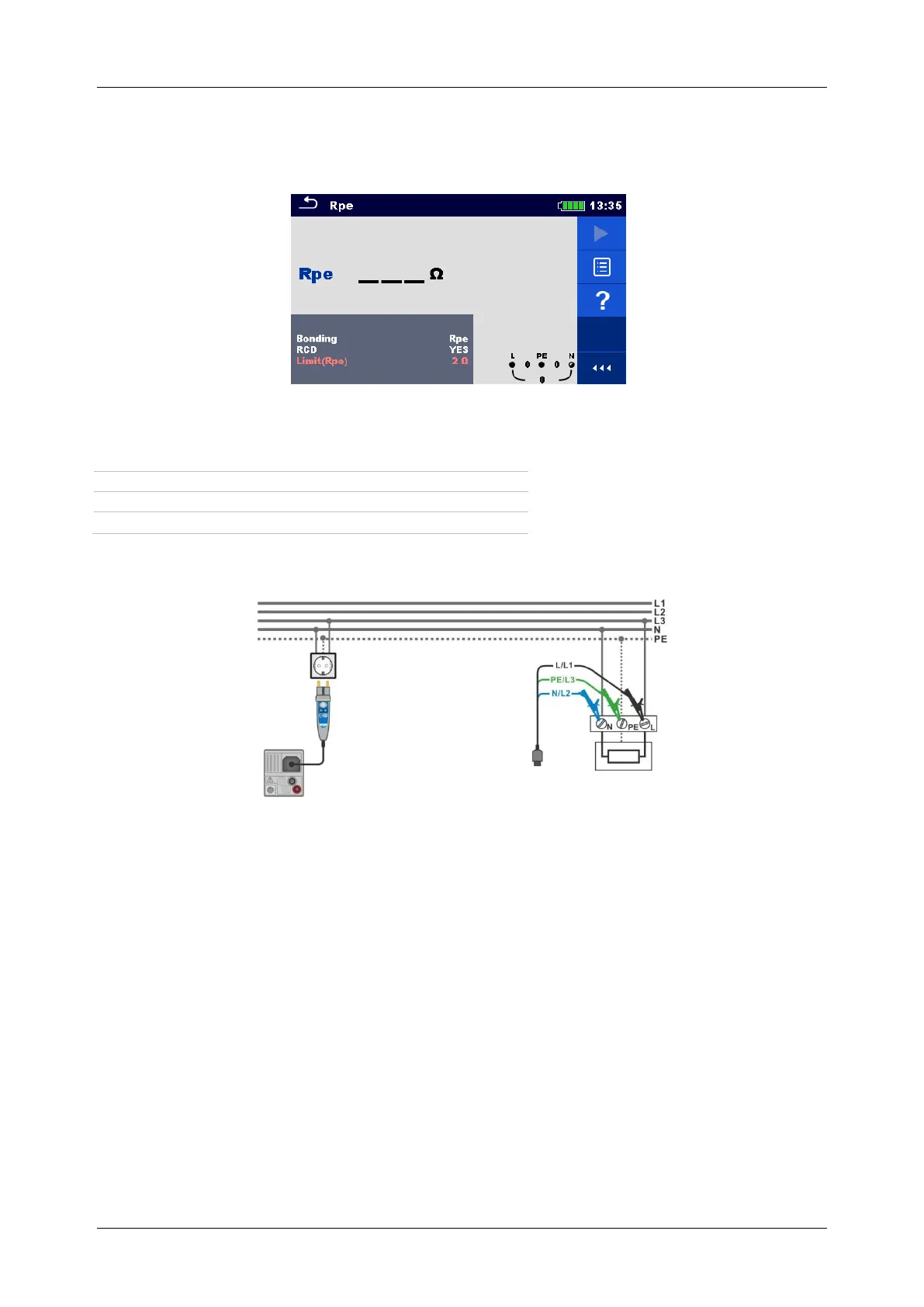

Figure 7.78: PE conductor resistance measurement menu
Measurement parameters / limits
Bonding
[Rpe, Local]
RCD
[Yes, No]
Limit(Rpe)
Max. resistance [Off, 0.1  ... 20.0 ]
Connection diagram
Figure 7.79: Connection of Plug commander and 3-wire test lead
