METREL EurotestXC MI 3152 - Single Test (Measurement) Screens

MI 3152(H) EurotestXC (2,5 kV) Single tests
76
Cross selector
This selection mode is the fastest for working
with the keypad.
Groups of single tests are organized in a row.
For the selected group all single tests are
displayed and easy accessible with up /down
keys.
Last used
Last 9 made different single tests are displayed.
6.1.1 Single test (measurement) screens
In the Single test (measurement) screens measuring results, sub-results, limits and parameters
of the measurement are displayed. In addition on-line statuses, warnings and other info are
displayed.

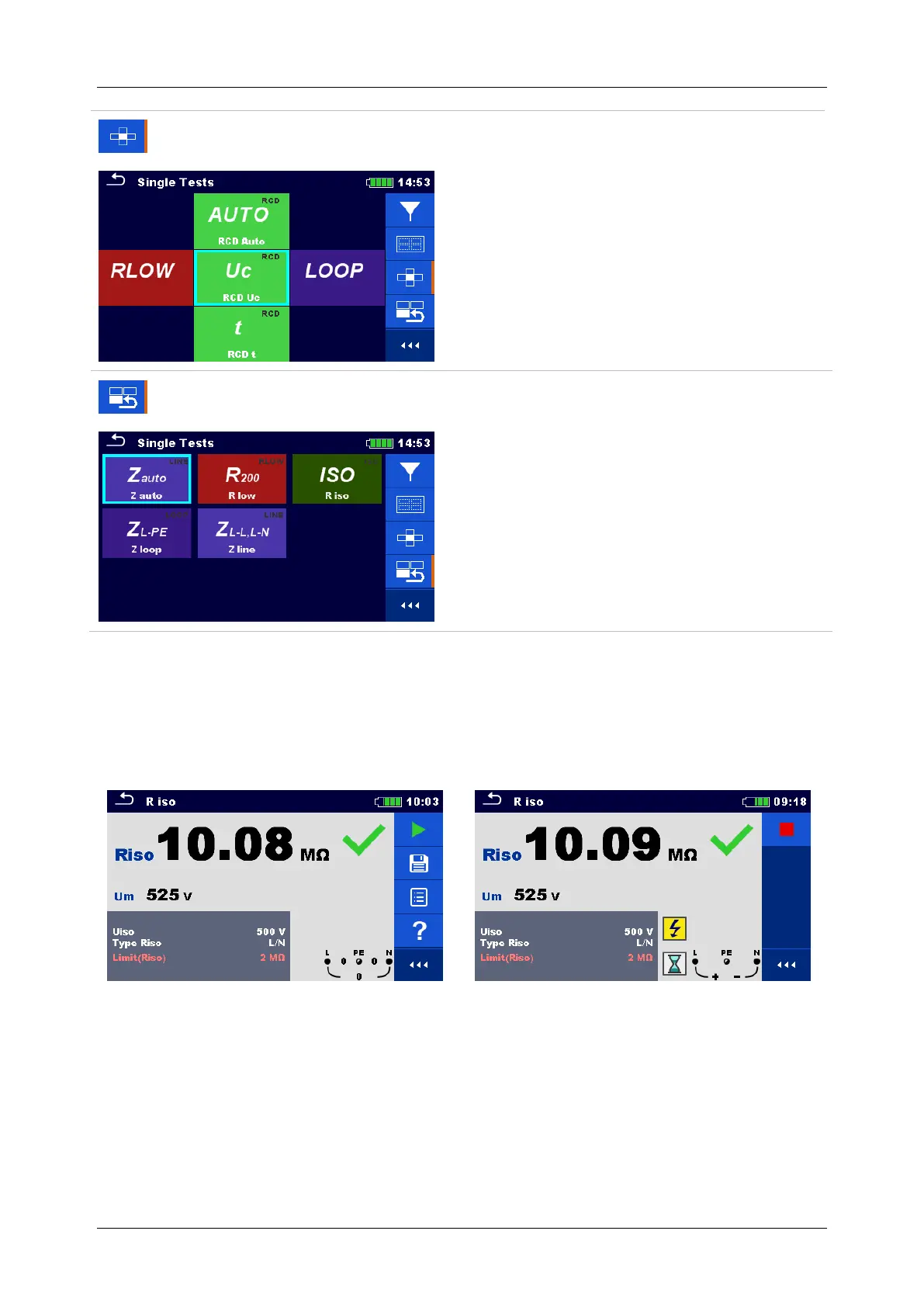

Figure 6.1: Single test screen organization, example of insulation resistance
measurement
