METREL EurotestXC MI 3152 User Manual

MI 3152(H) EurotestXC (2,5 kV) Tests and measurements
161

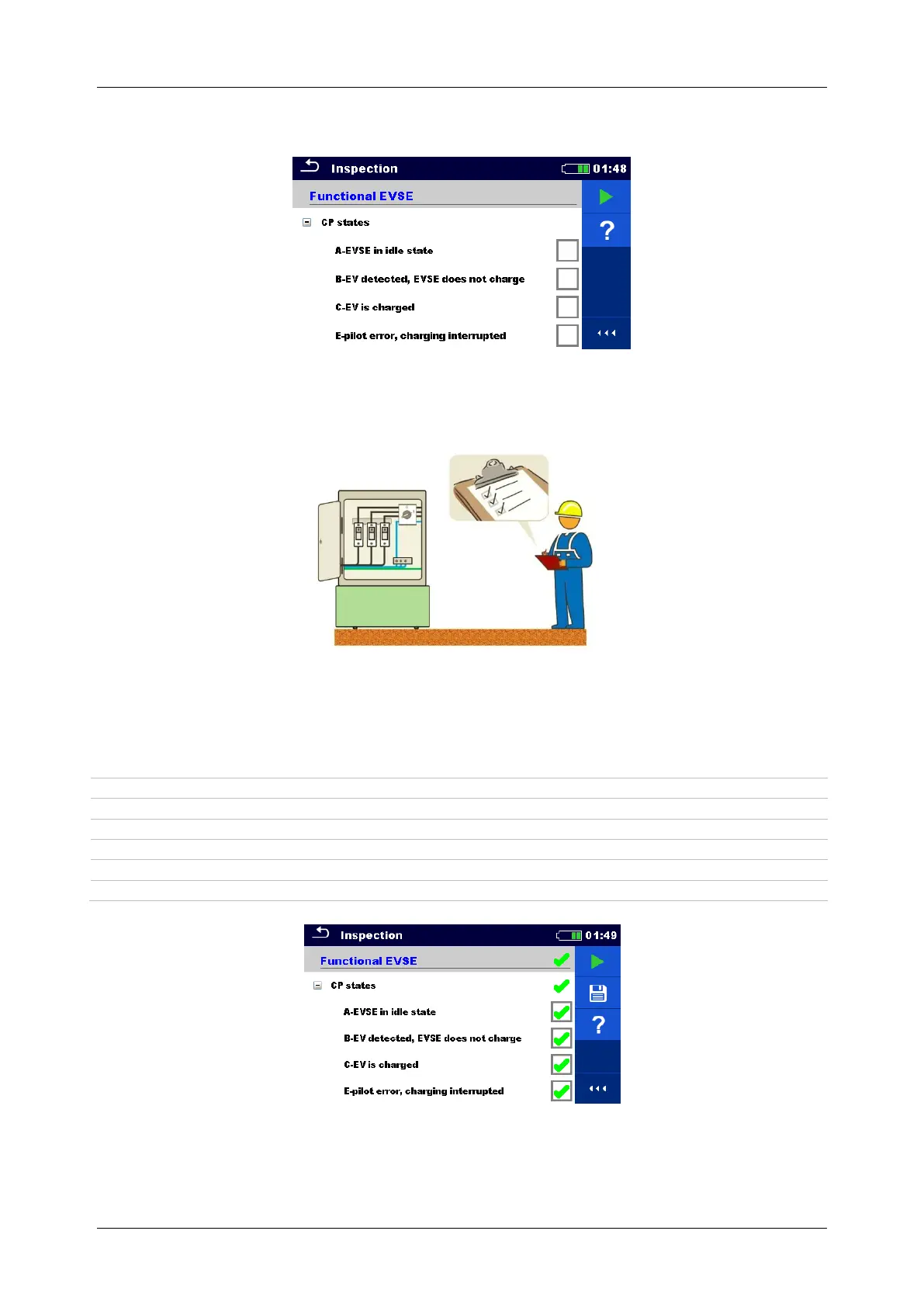

7.31 Functional inspections
Figure 7.103: Example of Functional inspection menu
Inspection
Figure 7.104: Functional inspection test circuit
Functional inspection procedure
 Select the appropriate Functional Inspection test from Function menu.
 Start the inspection.
 Perform the inspection of the item under test.
 Apply appropriate ticker(s) to items of inspection.
 End inspection.
 Save results (optional).
Figure 7.105: Example of Functional inspection results
