MI 3152(H) EurotestXC (2,5 kV) Instrument description
18
3.2 Connector panel

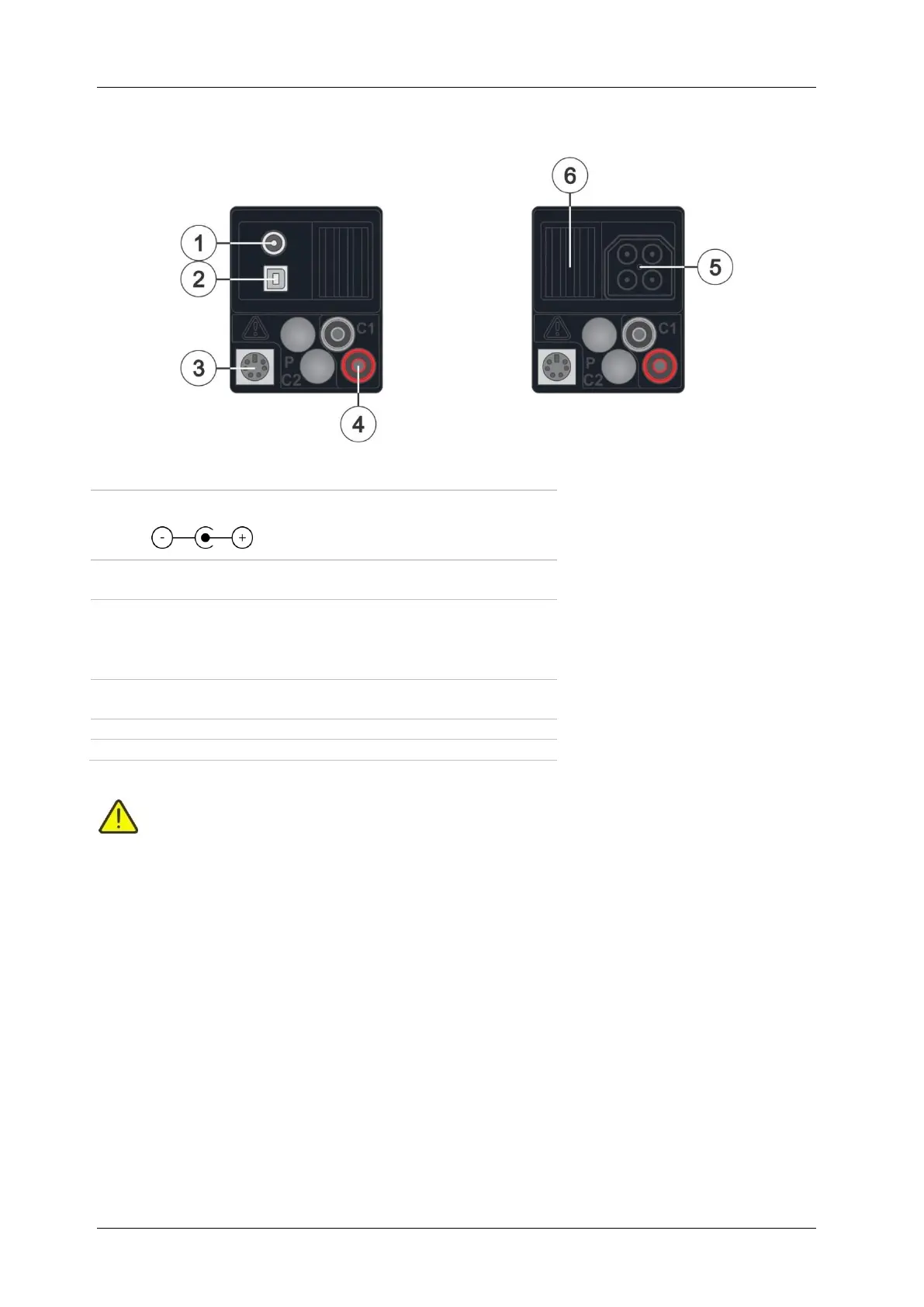

Figure 3.2: Connector panel
1
Charger socket
2
USB communication port
Communication with PC USB (2.0) port
3
PS/2 communication port
Communication with PC RS232 serial port
Connection to optional measuring adapters
Connection to barcode / RFID reader
4
C1 inputs
Current clamp measuring input
5
Test connector
6
Protection cover
Warnings!
 Maximum allowed voltage between any test terminal and ground is 550 V!
 Maximum allowed voltage between test terminals on test connector is 550 V!
 Maximum allowed voltage on test terminal C1 is 3 V!
 Maximum short-term voltage of external power supply adapter is 14 V!
