MI 3152(H) EurotestXC (2,5 kV) Tests and measurements
140

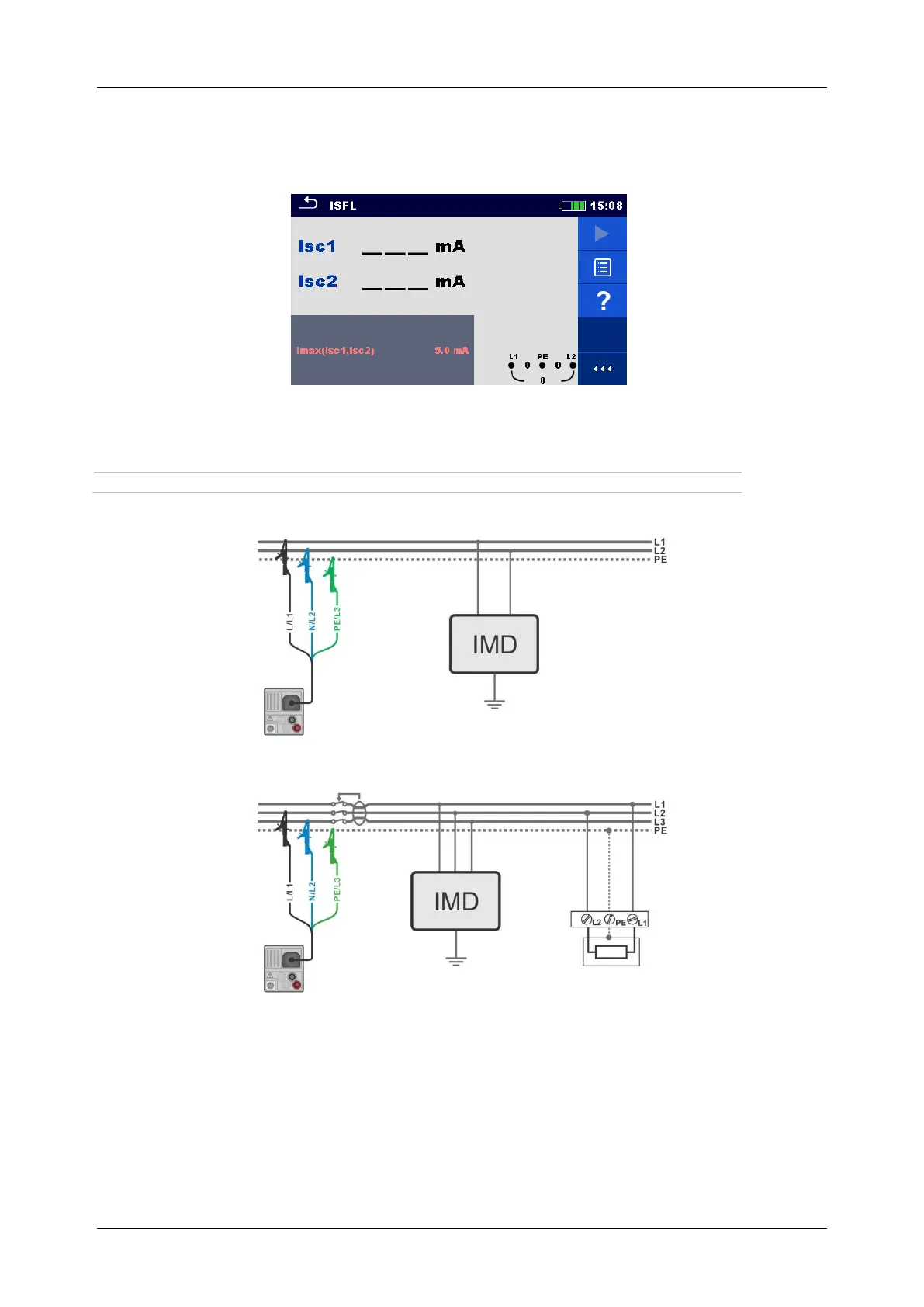

7.21 ISFL – First fault leakage current (MI 3152 only)
Figure 7.71: ISFL measurement menu
Measurement parameters / limits
Imax(Isc1, Isc2)
Maximum first fault leakage current [Off, 3.0 mA ... 19.5 mA]
Connection diagrams
Figure 7.72: Measurement of highest First fault leakage current with 3-wire test lead
Figure 7.73: Measurement of First fault leakage current for RCD protected circuit with 3-
wire test lead
