Memory Organizer is a tool for storing and working with test data.
5.1 Memory Organizer menu
The data is organized in a tree structure with Structure objects and Measurements. EurotestXC
instrument has a multi-level structure. The hierarchy of Structure objects in the tree is shown on
Figure 5.1.

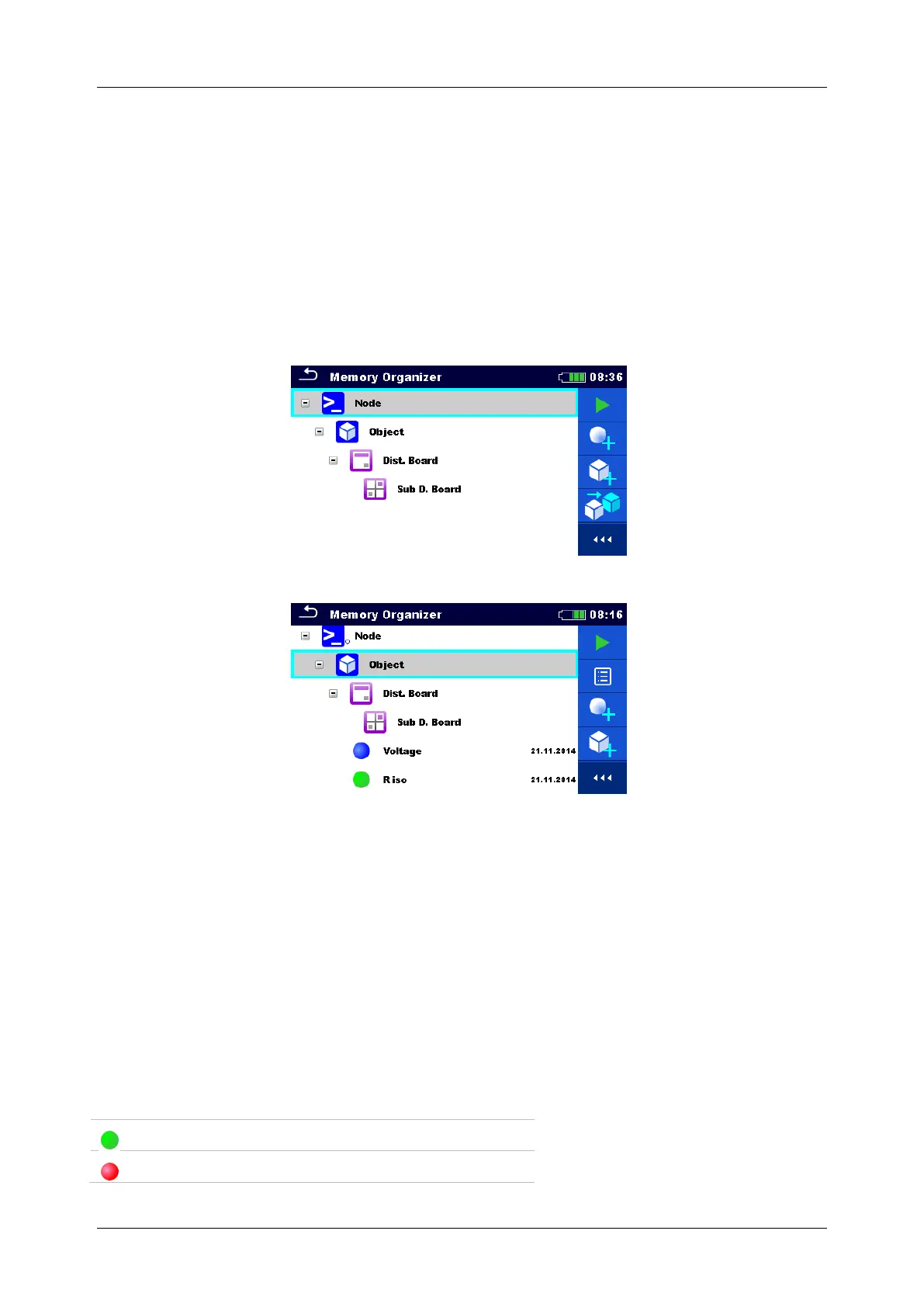

Figure 5.1: Default tree structure and its hierarchy
Figure 5.2: Example of a tree menu
5.1.1 Measurement statuses
Each measurement has:
 a status (Pass or Fail or no status),
 a name,
 results,
 limits and parameters.
A measurement can be a Single test or an Auto Sequence®. For more information refer to
chapters 7 Tests and measurements and 8 Auto Sequences®.
Statuses of Single tests
passed finished single test with test results
failed finished single test with test results
