METREL EurotestXC MI 3152 User Manual

MI 3152(H) EurotestXC (2,5 kV) Tests and measurements
102
 Compensate the test leads resistance if necessary, see section 7.6.1 Compensation of
test leads resistance.
 Disconnect device under test from mains supply and discharge it as required.
 Connect test leads to device under test, see Figure 7.22.
 Start the measurement.
 Stop the measurement.
 Save results (optional).

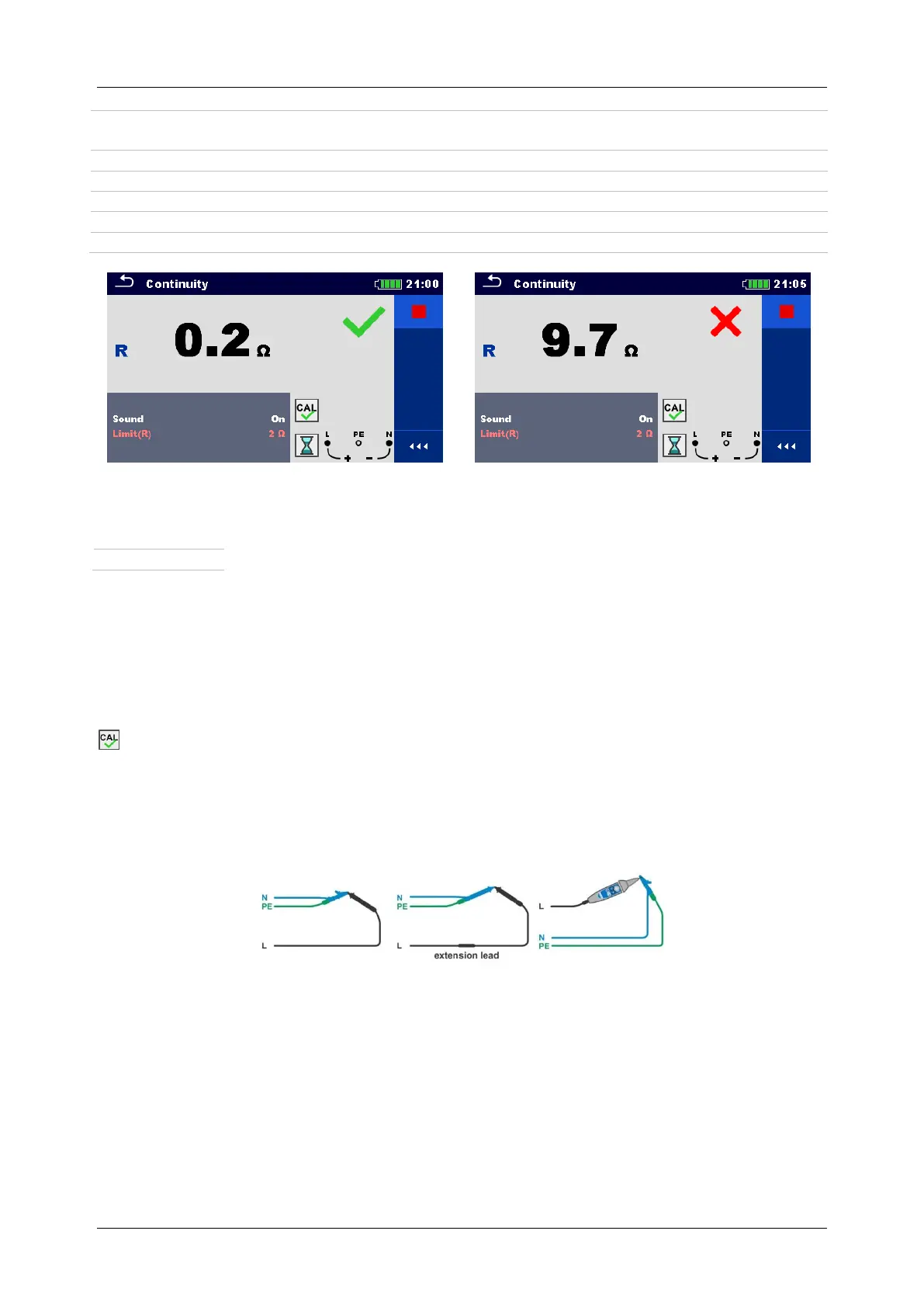

Figure 7.23: Examples of Continuity resistance measurement result
Measurement results / sub-results
R
Resistance
7.6.1 Compensation of test leads resistance
This chapter describes how to compensate the test leads resistance in R low and Continuity
functions. Compensation is required to eliminate the influence of test leads resistance and the
internal resistances of the instrument on the measured resistance. The lead compensation is
therefore a very important feature to obtain correct result.
symbol is displayed if the compensation was carried out successfully.
Connections for compensating the resistance of test leads
Figure 7.24: Shorted test leads
