11
Attach black wire to
terminal or lead that is
“
hot
”
with ignition on.
D
o NOT c
onnect
the red wir
e
.
Tie back and tape off.
C
ar
efully route switch
c
able t
o a 12-v
olt sour
ce.
4-amp in-line fuse (NOT PROVIDED) required for unprotected circuits.
Electrical Installation
This section explains how to connect your SprayMate II to a 12-
volt power source, and how to connect your boom shut-off
valves.
NOTE: The SprayMate II must be connected to a 12-volt DC
negative ground electrical system.
POWER/BATTERY CONNECTION:
Locate the power cable for the SprayMate II and route to the
battery. When routing cable to console, avoid areas where the
cable may be subjected to abrasion or excessive heat. Attach
the BLUE wire (ground) to a screw or bolt on the equipment
frame.
See Illustration 2. Be sure there is a good metal-to-metal
contact. Connect the ORANGE wire to the positive battery
terminal.
Connect the power to the SprayMate II console by plugging the
2-pin W/P tower on the power cable into the 2-pin W/P shroud
of the display console.
ON/OFF SWITCH CONNECTION:
The SprayMate II system includes a provision for either using a
switched (ignition) source or an optional power switch to turn
the system on.
If the optional power switch is used, simply mount the switch
bracket as shown on page 7, and plug the connector into the
mating cable from the console. If you want to use the ignition
switch to turn the system on and off, route the ignition cable
(P/N 14314) from the console to the switched source, plug the
connector into the mating plug for the console and connect
the black wire to the switched power source as shown in
Illustration 3 (terminal or wire). Do NOT connect the red wire.
Use your test light to locate a terminal or wire connected to
your ignition switch which is “hot” when the ignition is turned
on and “dead” when the ignition is off.
Your SprayMate II is equipped with a non-volatile memory
which does not require a constant supply of power to retain
daily totals or calibration values. This type of memory
conserves battery power and will not discharge the vehicle's
battery when equipment is not in use.

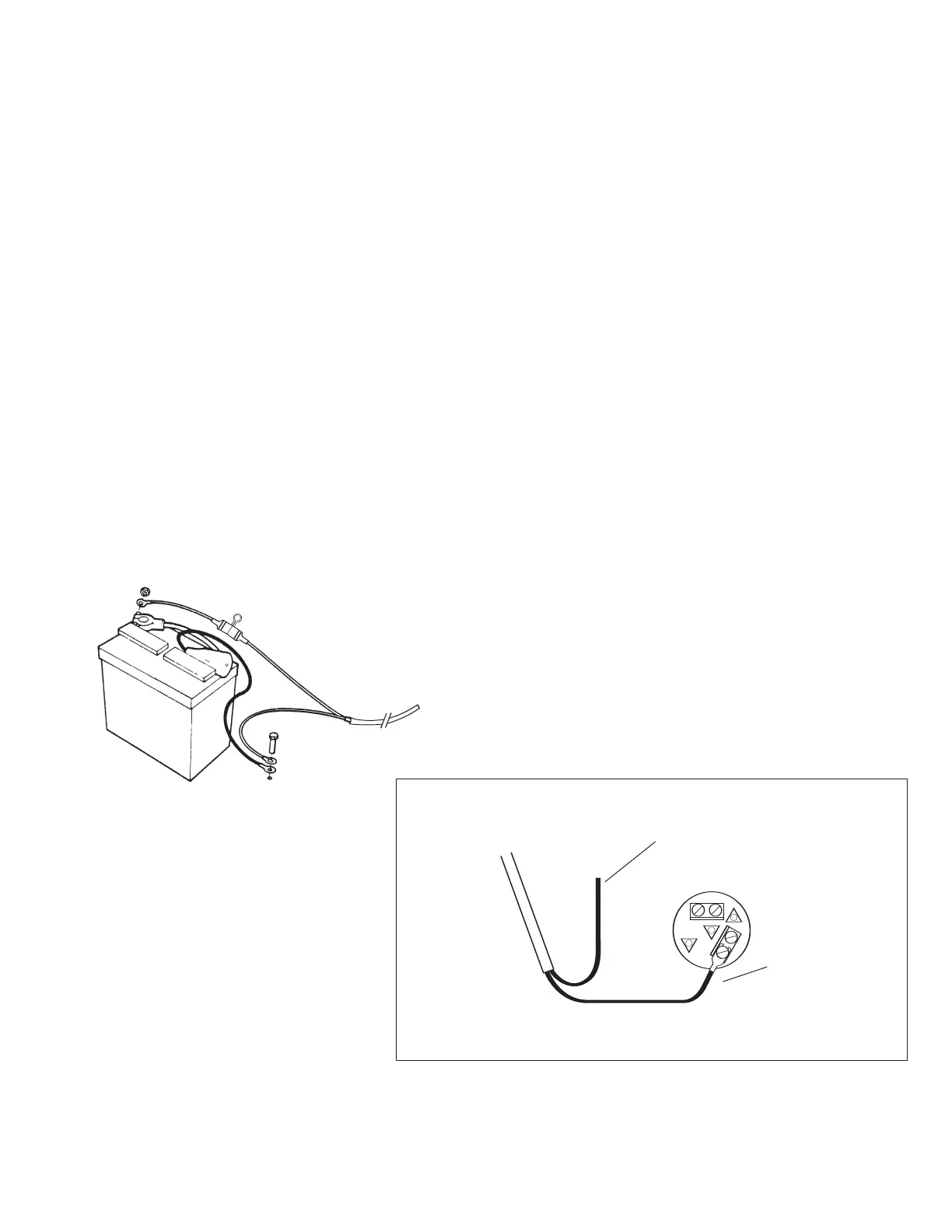

Illustration 3
Connecting to ignition to turn SprayMate II system on/off.
Illustration 2
Hot
(ORANGE)
Ground
(
BL
UE
)
10-amp in-line fuse
required.
