18
Mounting and Plumbing Flowmeter
The Flowmeter must be installed in the main boom
line after any strainers, return lines, or valves. Securely
mount flowmeter (hardware not supplied) in a vertical
position in an area away from intense vibration. DO
NOT install flowmeter closer than 12" to the servo
valve or the boom shut-off valves. The flow meter is a
bidirectional meter (exception: Polmac’s 1 1/2"–3").
Liquid can flow in either direction, but
up is preferred,
especially at rates below 5 GPM (19 lpm). Make con-
nections using appropriate fittings without the use of
reducers, elbows or sharp bends for a minimum of six
inches (15 cm) either side of meter.

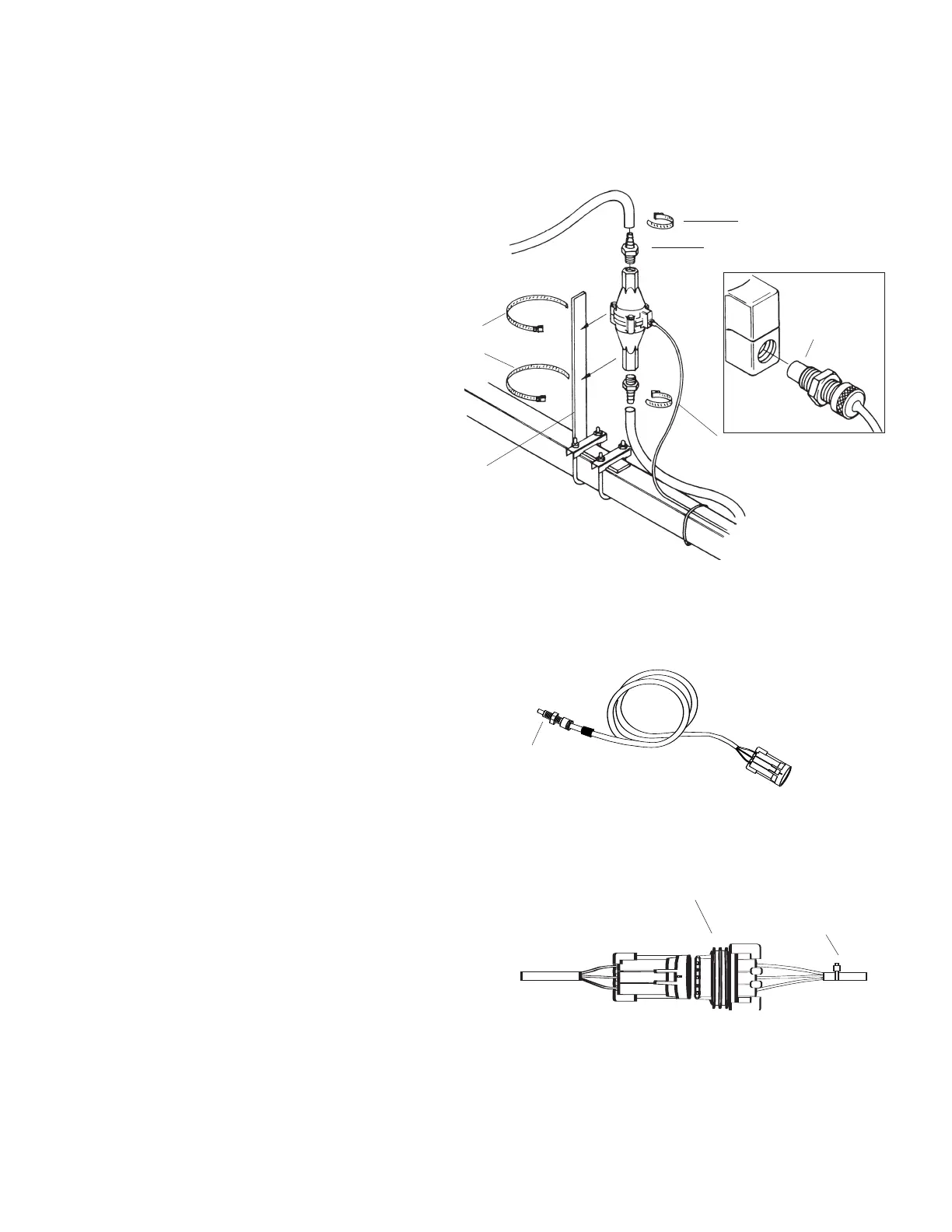

See Illustration 7.
Save plastic plugs to protect flowmeter during
storage. (The flowmeter may need periodic cleaning,
so it should be easy to remove.)
Hose
clamps*
“L” bracket*
*Not supplied
Illustration 7
Sprayer line*
Hose clamp*
Lock
nut
Sensor
(Green body)
With the flowmeter in place, install the flow sensor cable.
T
he flow sensor cable has a GREEN sensor body and mates with
the 3-pin connector on the main harness marked with a GREEN
cable tie. Screw sensor all the way into hole of flowmeter.
Tighten 3/8" jam nut to secure sensor in place.
Uncoil flow sensor cable and carefully route it to meet the main
har
ness flo
w c
onnec
tor marked with GREEN tie. Align
connectors and press firmly together until locking tab clicks
in
t
o plac
e
.
Secure cable with ties provided.
S
ee Illustr
ation 8 and
SprayMate II Wiring Diagram on page 10.
N
ot
e:
S
ensors with GREEN b
o
dies can be used for either SPEED or
FLOW but not for RUN/HOLD.
Installing Flow Sensor Cable
5' Hall-effect Flow Sensor Cable
with threaded sensor and male
connector (P/N 13096)
Connect flow sensor cable to green-tie console cable.
Green body
F
low sensor
c
able connector
M
ain Har
ness
flow connector
Illustration 8
GREEN tie
Flowmeter
Hose clamp*
3/4" NPT male fitting*
