19

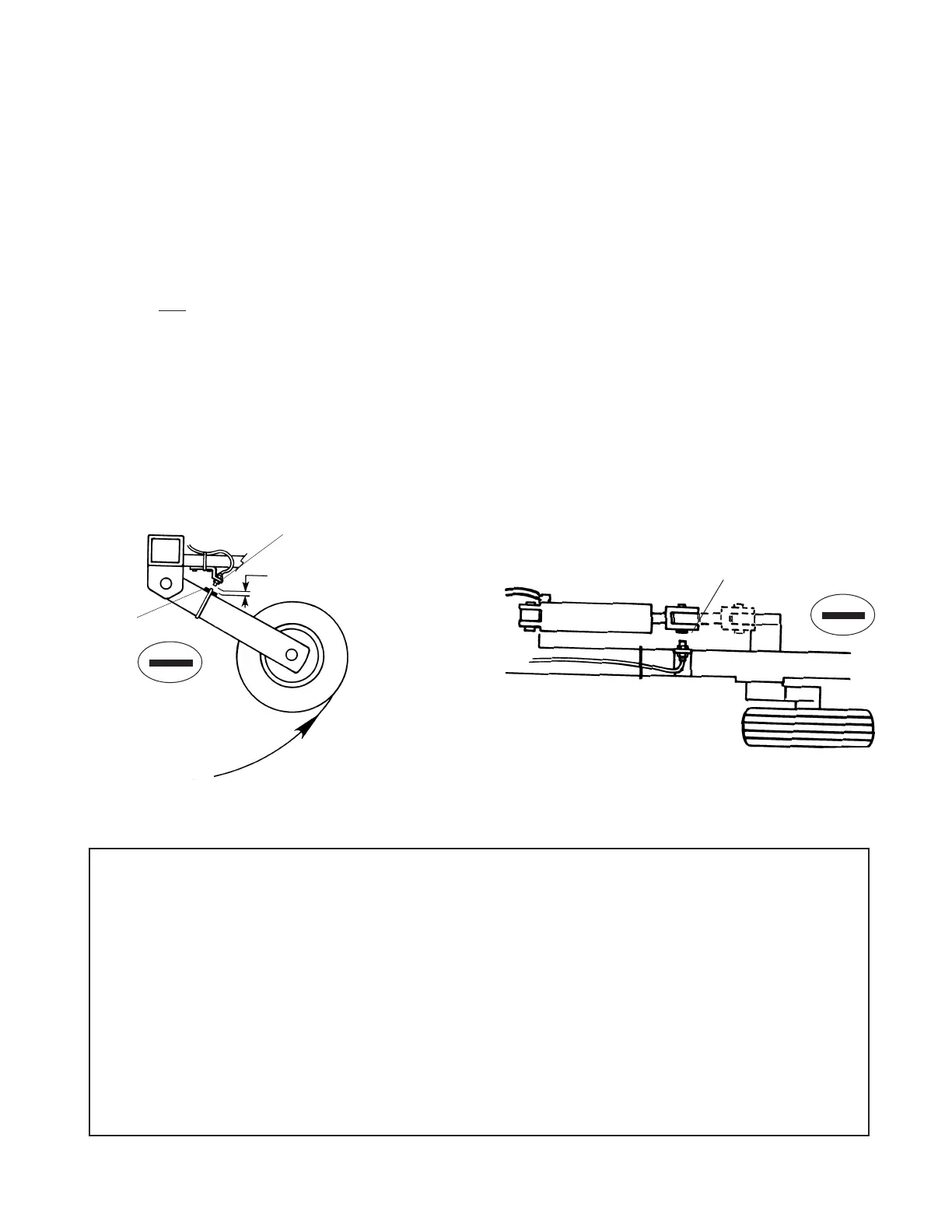

Lift Wheel Mounting
1/8" to 3/8"
(6 mm to 13 mm)
when wheels are up
Magnet
Sensor (Black body)
Sensor
(Black body)
Magnet
Hydraulic Cylinder Mounting
Remote Run sensor on hydraulic cylinder. Magnet and sensor are in line
when equipment is lowered and operating.
Remote Run/Hold
The run/hold sensor cable has a BLACK body and a GRAY tie near
the 3-pin M/P connector and mates with the main harness cable
having a GRAY cable tie near the 3-pin M/P connector. Make
certain that you install the correct sensor cable and connect it to
the correct connector on the main harness. If not using
Run/Hold cable for remote use, make certain a dust cover with
jumper is installed.
• The basic idea is to attach a magnet to a lever or some part
of the equipment that moves when the implement is
raised and lowered. The Hall-effect Run/Hold sensor is
sensitive only
to the south pole of the magnet. Install the
magnet with the dashed line facing the sensor. When the
magnet is away from the sensor, the console will be in
HOLD and the area and distance counting functions will
be disabled. The solenoid valves will also shut off. NOTE:
The run/hold kit includes a 5' sensor cable and 10'
extension. You may require additional extension cables
which are available in 5 ft. (1.5 m), 10 ft. (3 m), 15 ft. (4.5 m),
20 ft. (6 m) and 25 ft. (7.6 m) lengths.
South
North
North
South
• You may also use a toggle or other type switch.Simply cut
the blue jumper wire in the dust cover and splice on an
appropriate length of wire to reach your switch. Do not
connect to a switch with power.
When switch is closed, console is in RUN. When the switch is
open, the console is in HOLD.
Hold
Position
Run
Position
Care and Maintenance of your SprayMate II
Console
Store the console in a cool dry location if it will not be used for an extended period of time, such as during the off-
season. As with any electronic equipment, use care in cleaning so that water or other liquids do not enter the case.
Thoroughly flush Flowmeter with clean water, install plastic shipping plugs and keep from freezing.
Precautions
• The input pressure on the glass-filled nylon flowmeter FM750 GFN should not exceed 100 PSI (689 kpa).
•
D
o not e
xp
ose the flo
wmet
er to liquid temperatures exceeding 130 degrees F (55 degrees C).
• Some chemicals may damage the turbine material. If you are in doubt, contact the chemical manufacturer.
