21

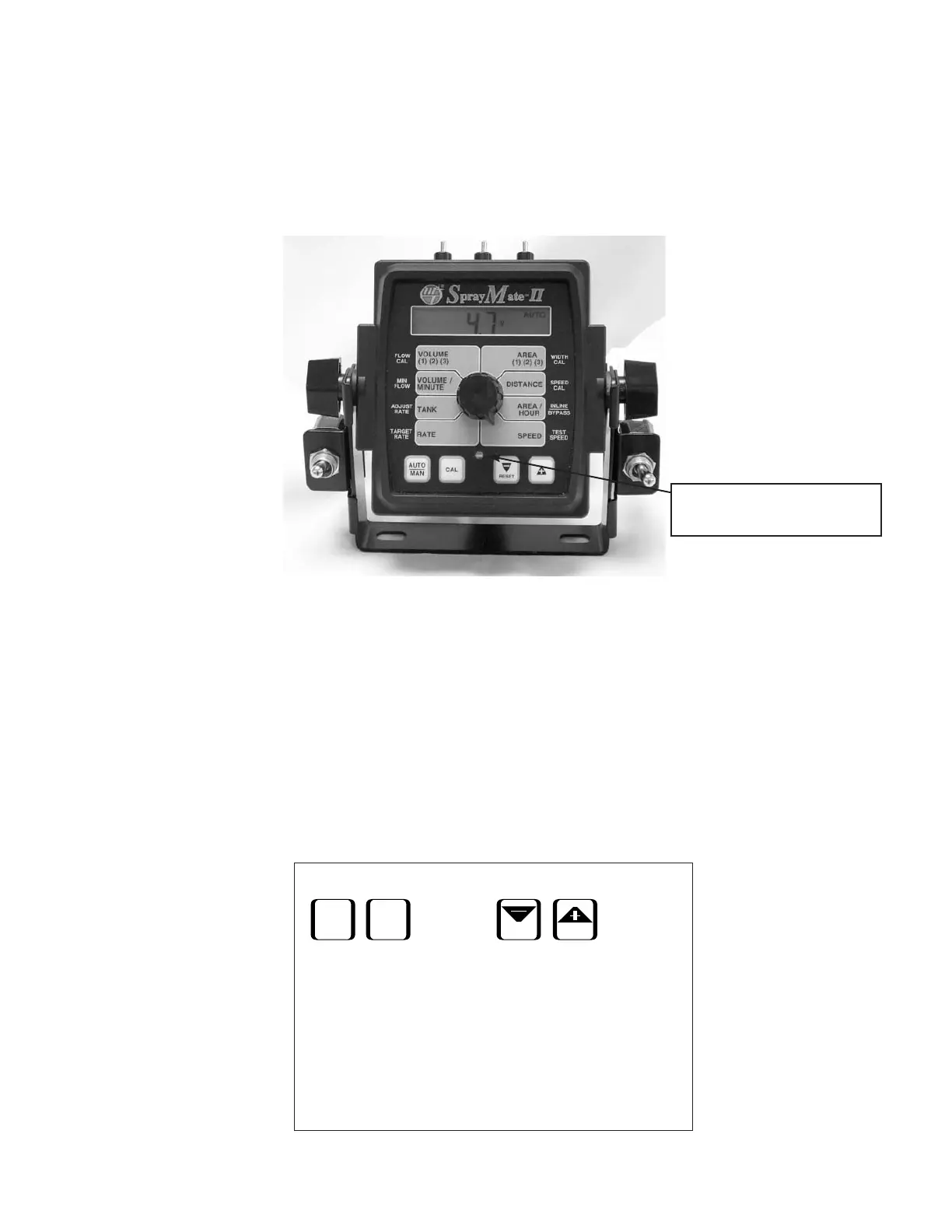

SprayMate II Console Functions
T
he SprayMate II features a large, easy-to-read liquid crystal display, easy-to-use rotary dial and lighted panel for night use.
VOLUME/MINUTE: Displays
total gallons (liters) of liquid
applied per minute, or lbs. (kg)
NH3 per minute.
TANK: Displays gallons (liters)
of liquid remaining or lbs. (kg)
of NH3 remaining.
INLINE/BYPASS: For establishing servo polarity. (If servo
is in the main spray line, select "Inline". If servo is installed
in a return line, select "Bypass".)
ADJUST RATE: Used in calibration mode to enter an
amount of change for on-the-go adjustments to the
target rate (GPA/LPH), or lbs/acre (kg/hec) N.
TARGET RATE: Used in calibration mode to enter the
target application rate (GPA/LPH) or lbs/acre (kg/hec) N.
R
ATE:
D
isplays application
rate GPA(LPH), or lbs. N/acre (kg
of N/hec).
AREA (1) (2) (3): Keeps a running count of the total acres
(hectares) worked. May be reset. (Note: VOLUME and AREA
c
ounters work in pairs, if AREA counter 1 is reset, it also
resets VOLUME counter 1.
DISTANCE: Displays distance
traveled in feet (meters). May be
reset.
AREA/HOUR: Displays
current work rate in acres per
hour (hectares per hour).
WIDTH CAL: Used in calibration mode to enter the
working width of your sprayer booms or other equipment.
SPEED: D
isplays ground
speed in miles per hour
(kilometers per hour).
SPEED CAL: Used in calibration mode to enter the speed
calibration number in inches (cm) per pulse.
TEST SPEED: Used in calibration mode to enter a test
sp
eed in miles p
er hour (kilometers per hour).
MIN FLOW: Used in the calibration mode to enter the
minimum flow rate (GPM/LPM) of the spray boom.
AUTO/MAN: Key which
changes operation from
aut
oma
tic c
ontrol to
manual.
C
AL:
T
his k
ey is used to
enter & exit the calibration
mode.
Key Functions:
PROGRAM KEYS: Used
to increment and decrement the
diff
er
en
t c
alibr
ation values.
• RESET when not in C
AL, clears
the selec
ted counter when
held f
or two seconds.
• When in CAL, the “+”key
increases and the “
-”decreases
the value displayed.
VOLUME (1) (2) (3) : Displays total gallons (liters) or lbs.
(
kg) of NH3 applied. May be reset. (Note:VOLUME and AREA
counters work in pairs, if VOLUME counter 1 is reset, it also
resets AREA counter 1.
FL
OW CAL:
Used in calibration mode to enter the
calibration value assigned to your flowmeter (see flowmeter
tag.)
WARNING LIGHT: Indicates over
or under application of 10% of the
Target Rate. Also lit when in CAL.
Calibration Positions
Calibration P
ositions
