micro-trak SprayMate II - Boom and Sensor Connections; Boom Shut-Off Valve Connections

12
BOOM SHUT-OFF VALVES: Locate solenoid boom valve
wires. Connect cables to appropriate booms. Apply silicone
grease to solenoid terminals to avoid corrosion.
Connect ground wire tabs to ground connections on valves.
Note: 16-gauge WHITE wire is auxiliary power for use with
motorized ball valves ONLY. Tie back and tape off to avoid
shorting (if not used).

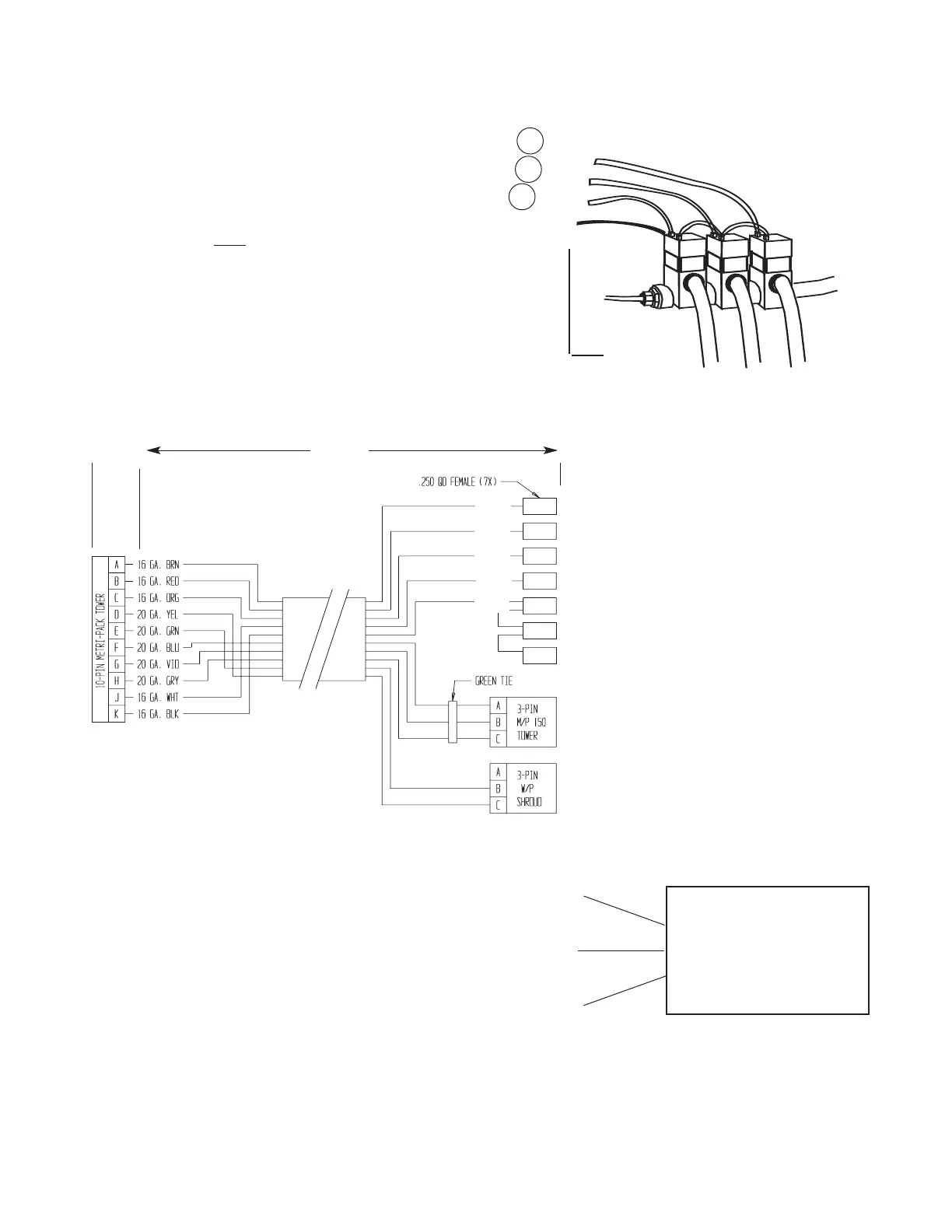

Illustration 4B
Ground
(BLACK)
Boom
Wire
+12V
(
WHITE)
If using 2-wire ball valves, contact a Micro-Trak representative
for assistance.
SprayMate II Boom Connections
120 in
120 in
Monitor Special
ball valve
Ground
(BLACK)
Brown
Red
Orange
Illustration 4A
BRN
RED
ORG
WHT
BLK
Boom 1
Boom 2
Boom 3
GND
GND
GND
Aux. 12V
3
2
1
