56
Appendix G: SprayMate II - NH3 Specific
Installation

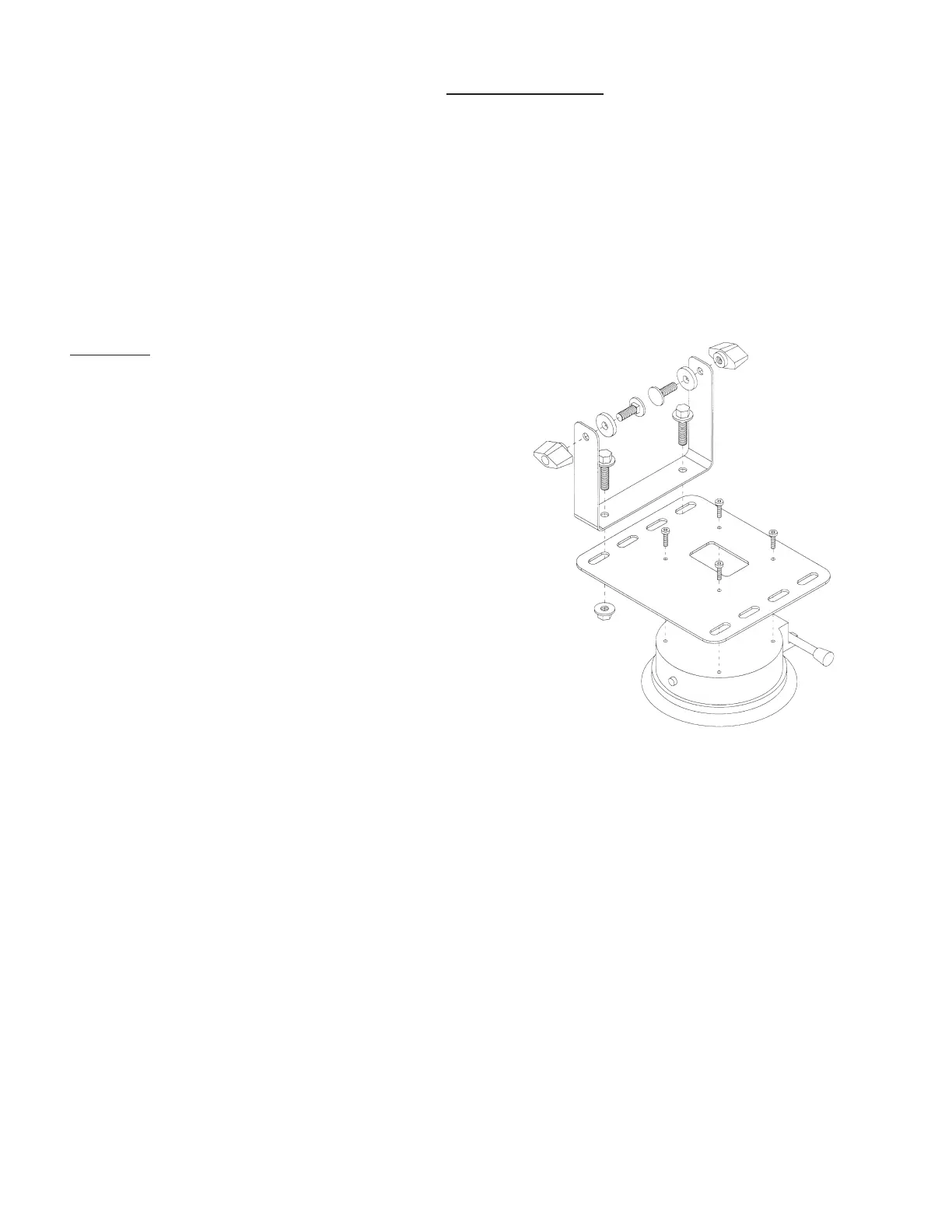

Optional Mounting: Base Plate/Suction Cup
Match the four holes on the base plate to the corresponding holes
on the suction cup. Fasten with the four 1/2" screws. Make sure the
plate is positioned (it will appear off-center) so that the suction cup
lever is free to open and close. Mount U-bracket to the suction cup
base plate with bolts, lockwashers and nuts provided.
See
Illustration 3.
NOTE: The suction cup will adhere to almost any clean, non-porous
surface.It may be mounted onto the glass on a vehicle or almost any
flat metal.
Mounting the Display Console
See installation section at front of manual for installation of console,
cables, speed, sensor, etc. The following sections describe
installation of NH3-specific items only.
Illustration 3
