7
Installation
Mounting the Display Console
Select a mounting location which seems most workable, and
that best fits your needs. It should be convenient to reach and
highly visible to the operator. DO NOT INSTALL IN A POSITION
THAT OBSTRUCTS THE VIEW OF THE ROAD OR WORK AREA.
Whenever possible, avoid locations that expose the console to
direct sunlight, high temperature, strong chemicals or rain.
Place the mounting bracket in selected location, mark holes,
drill 1/4" (7mm) holes and mount bracket with bolts, lockwash-
ers and nuts provided. (Use self-tapping screws if not practical
to use bolts.)
See Illustration 1A.
Put rubber washers on carriage bolts and put the bolts through
the br
acket holes from the inside out. Loosely attach the mount
knobs onto the bolts. Place console over carriage bolt heads
and tighten knobs to secure the console.
See Illustration 1B.
Mounting the Run/Hold Switch Kit
R
emo
ve the mount knob from either side of the console. Install
the br
acket over the carriage bolt and along side the console
br
ack
et. Install the mount knob on the carriage bolt and
tigh
t
en to secure the console and run/hold switch bracket in
place.
Install the swit
ch in the br
acket and attach the quick
disconnects on the switch harness to the switch. Then install
the swit
ch har
ness c
onnec
tor into the mating connector (gray
tie) on the console harness. An optional power (console on/off)
switch kit is also available, (P/N 14360).

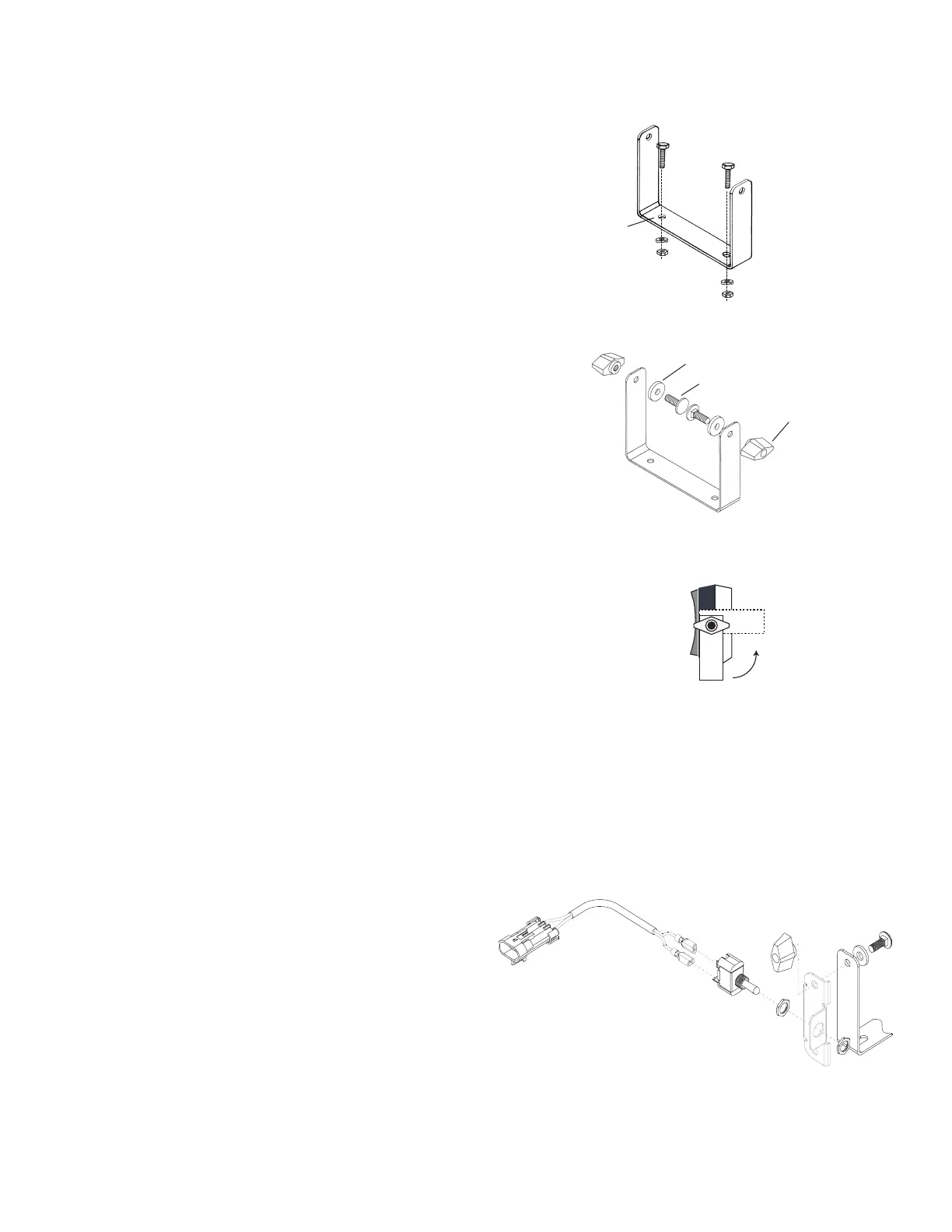

Illustration 1A
Illustration 1B
Drill 1/4" (7 mm)
holes for bolts,
or 3/16" (5mm)
holes for self-
tapping screws.
Lockwashers
and nuts
Bolts
Putting It All Together
Mount knobs
CONSOLE END VIEW
Console easily adjusts for
side or dashboard mounting.
Rubber washers
Carriage bolts
Console Run/Hold Switch Bracket
Attaching the Power and
Run/Hold Control Switches
To Next Page
