ATV Wheels
Sensor
bracket
Axle
N
ut
Swing arm
Hub
Rim
Plastic cable
tie
Magnet
Cut bracket
to clear rim
Cut and bend
bracket as
required
Axle
Hub
Magnet
Fork
tube
Rim
Metal
hose
clamps.

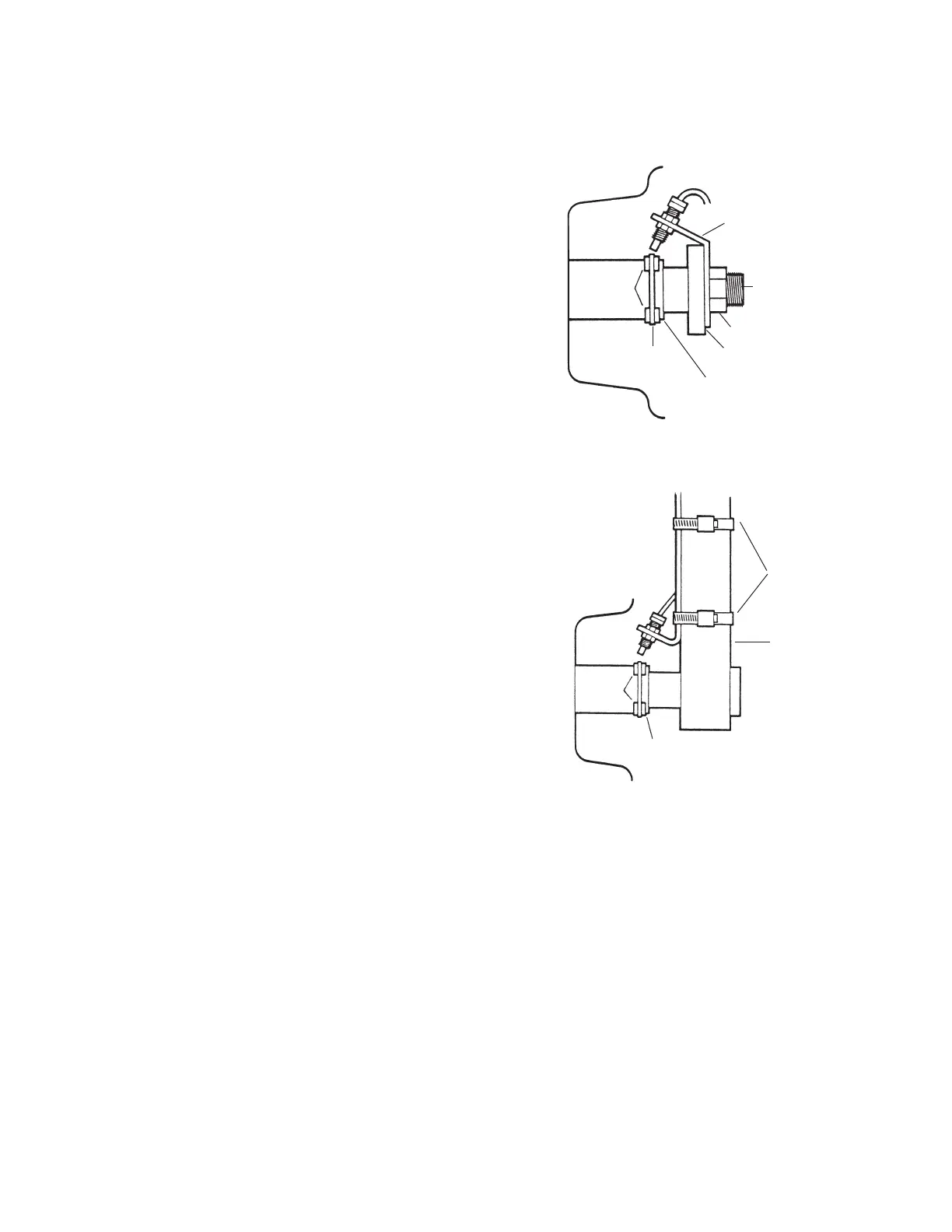

Two mounting examples are illustrated.
1. Using one cable tie (ribbed side toward magnets),secure two
magnets to the wheel hub so they are exactly opposite each
other. Alternate the magnets’ polarities.
2. Cut and bend sensor mounting bracket as needed and
rigidly mount.
3. Insert sensor, adjust spacing (1/4" to 1/2" or 6 to 13 mm) and
secure with 3/8" locking nuts.
CAUTION: Make sure valve stem cannot make contact with
sensor or bracket.
