micro-trak SprayMate II - Speed Sensor Cable Connection

15
Vansco Radar Speed Sensor
Sensor Sensor Body Color Main Harness Tie Color
S
peed Green Yellow
F
low Green Green
R
un/Hold Black Grey
SENSOR IDENTIFICATION CHART
Connecting the Speed Sensor Cable
The speed sensor cable has a GREEN sensor body and mates with
the 3-pin connector which is marked with a yellow cable tie. The
speed sensor and the flow sensor are identical, but must be
connected to the proper harness connector. The speed sensor
always connects to the 3-pin M/P connector with the YELLOW tie
and flow sensor always connects to the 3-pin M/P connector
with the GREEN tie.
See SprayMate II Wiring Diagram on page 10.
The optional Run/hold sensor also uses the same type of
connector as the speed and flow sensors.However, the Run/hold
sensor has a GRAY tie near the 3-pin connector, the sensor body
is BLACK, and it always connects to the main harness lead with
the GRAY tie.
See SprayMate II Wiring Diagram on page 10.
Speed Sensor Options
In addition to the standard Hall-eff
ect magnetic speed sensor,
the SprayMate II may be interfaced with a variety of other
speed sensing equipment. Several options are listed below.

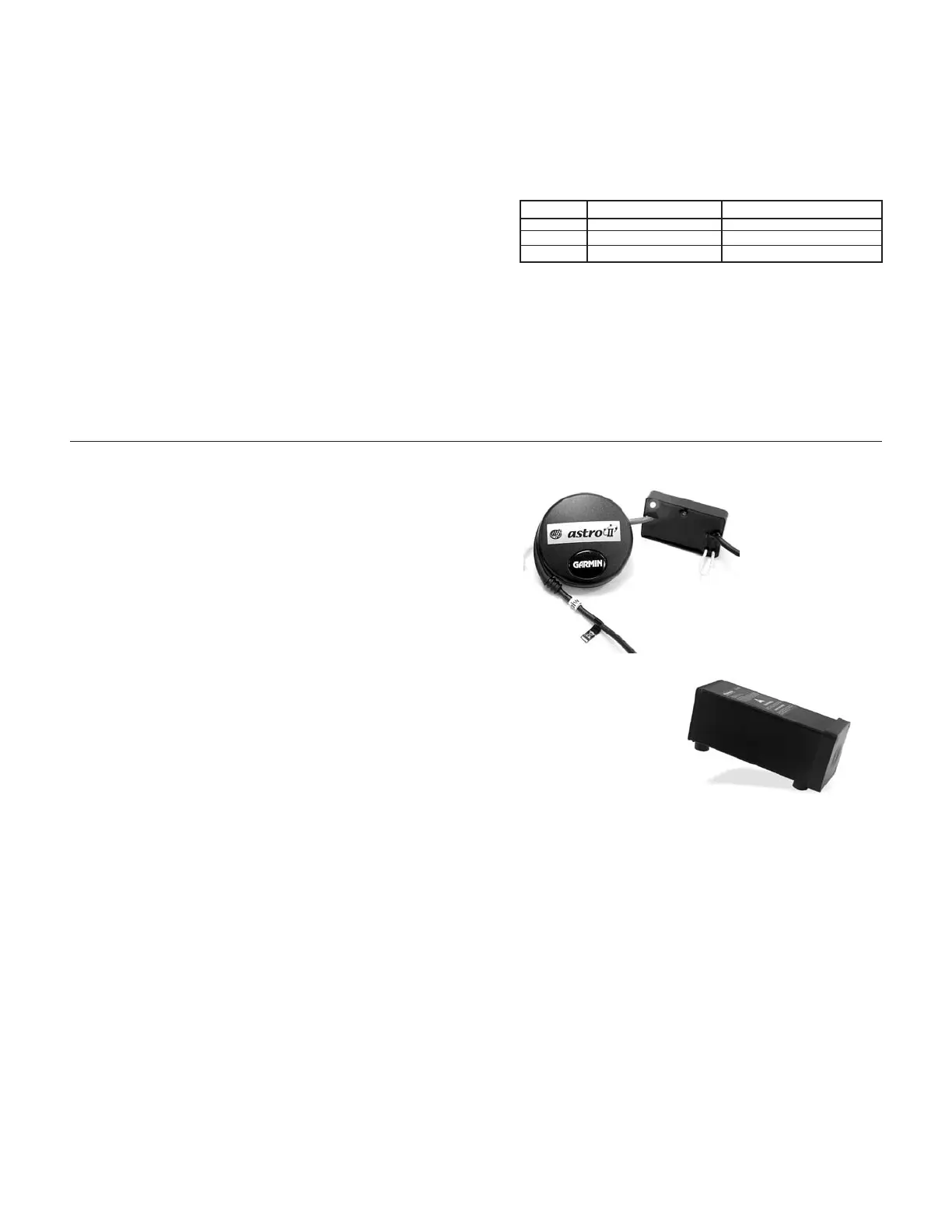

Astro GPS Speed Sensor
The Astro is an easy-to-install economical alternate to radar
speed sensors. The Astro is available with either a 1 HZ or 5 HZ
GPS receiver. The sensor converts GPS signals to a pulsed
speed signal, providing an accurate speed input even in
conditions where radar does not perform well.
Vansco
™
Radar Speed Sensor
The Vansco radar speed sensor uses a microwave (radar) signal
to deliver a reliable, accurate speed signal for electronic
equipment. It features state-of-the-art electronic
design/manufac
tur
ing, rugged aluminum housing and
complete testing and certification.
Radar Interface
The MT-NH3 II may also be interfaced with most popular radar
ground speed sensors. An adapter cable is required for proper
interface.
GPS Speed Sensor Interface
The MT-NH3 II may also be used with most other GPS speed
sensors that output a pulsed signal, such as SkyTrak or Dickey-
John GPS speed sensors. An adapter cable may be required.
SEE APPENDIX E FOR LIST OF ADAPTER C
ABLES FOR R
ADAR.
Contact a Micro-Trak sales representative for details on any of these products,
or c
all M
icr
o-Trak Systems, Inc. at 1-800-328-9613.
Astro GPS Speed Sensor
