57
The speed sensor cable has a GREEN sensor body and mates with
t
he main harness cable having a YELLOW cable tie near the 3-pin
M/P connector. Make certain that you install the correct sensor cable
and connect it to the correct connector on the main harness. The
s
peed sensor and the flow sensor are identical, but must be
connected to the proper harness connector. The speed sensor
a
lways connects to the main harness lead with the YELLOW tie and
flow sensor always connect to the main harness lead with the
GREEN tie.
See Illustration 8.
INSTALLATION NOTE: The main harness provides two connection
points for the speed sensor. For speed sensor installations in the cab
or near the control console, it may be more practical to use the local
access connector on the console end of the main harness (longer of
the two cables with YELLOW tie). Using this connection point will
disable the connection point on the implement end of the main
harness. For speed sensor installations on implements, it may be
more practical to use the speed connector on the implement end of
the main harness. When using this connection point, make certain
that the local access connector for speed/distance is mated
t
ogether. (Connectors with YELLOW ties on console end of main
harness mated together.)
Connecting the Speed Sensor Cable

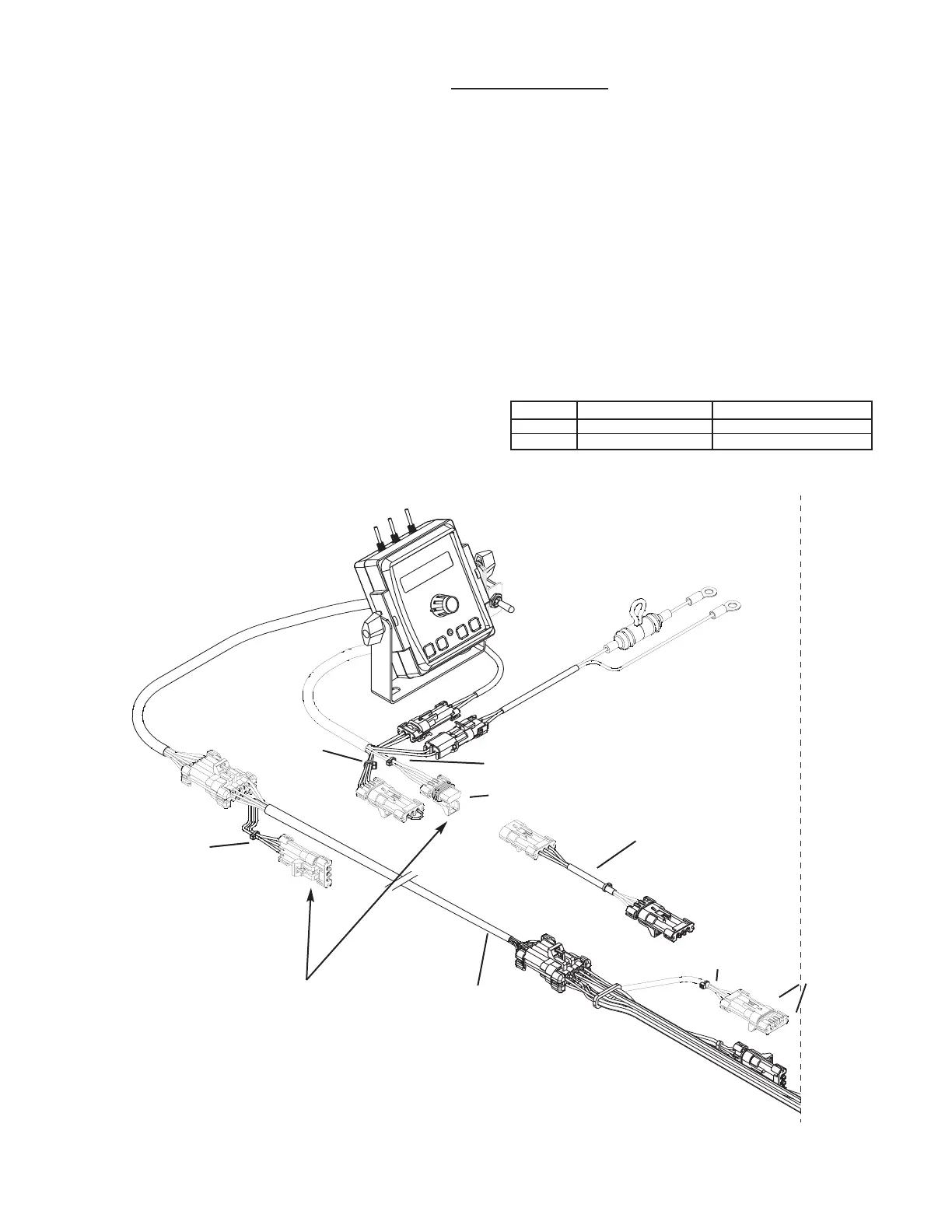

Illustration 8
Sensor Sensor Body Color Main Harness Tie Color
S
peed Green Yellow
Flow Green Green
SENSOR IDENTIFICATION CHART
Appendix G: SprayMate II - NH3 Specific
Installation continued
Gray Tie
Yellow Tie
NOTE: Connect
together if using
remote speed access
10 ft. NH3 Adapter
Cable
S
p
eed Ex
t
ension C
able
180 inch
R
emot
e S
p
eed A
ccess
Yellow Tie
Yellow Tie
Local Speed Access
To Next Page
