Version 1.9 Page 94 of 170
The starting foot of run and gait tests with modular systems can
be change several times. In a round-trip test, for example, it can
be useful to change the foot with which the athlete has entered
the area after having changed direction. By positioning the mouse
on the footprint to be changed and pressing the right button
'Invert foot' is viewed. Choosing this option, all following feet of the chosen foot are changed (e.g.
clicking on the footprint #7, the 7,8,9, etc. are inverted.).
In the round-trip used in modular systems, assigning a maximum flight time lower than the time it
takes the athlete to turn around in the test area, the ‘there’ footprints are deleted and substituted
with the ‘back’ footprints. Therefore, set the maximum flight time based upon one's needs (i.e. if
the ‘there’ and ‘back’ footprints are to be left superposed as shown in the figure, or the previous
ones deleted).

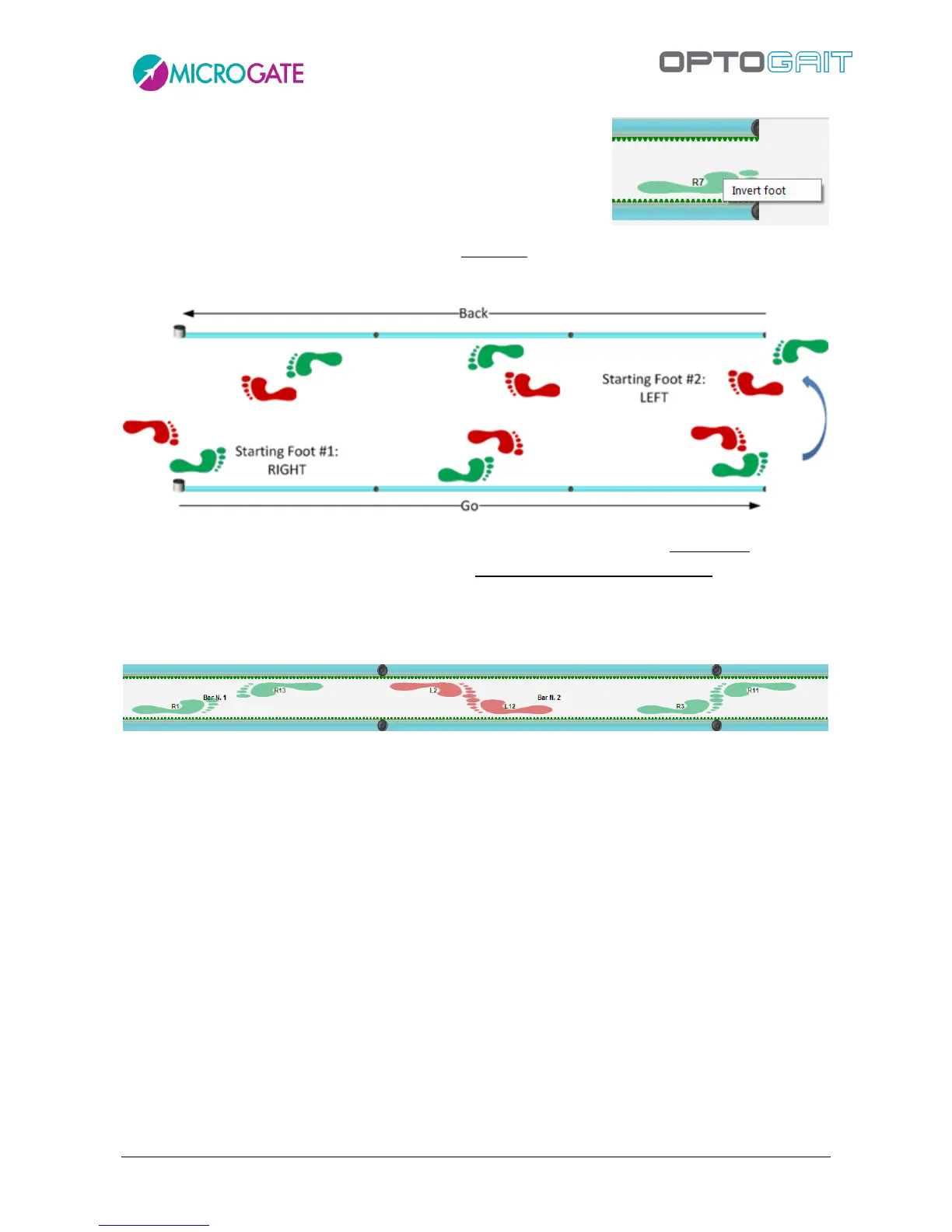

Figure 78 - There’ and ‘Back’ footprints
