INTERCONNECTION
Before interconnecting system components to the DPL+ terminals, verify all components have been installed
in accordance with the associated product instruction manuals.
Connect all associated equipment cable shields to the DPL+ shield connections. To avoid differential ground
potentials, do not connect cable shields to ground (earth) elsewhere. Insulate (tape) cable shields at all shield
junctions to prevent ground loops.

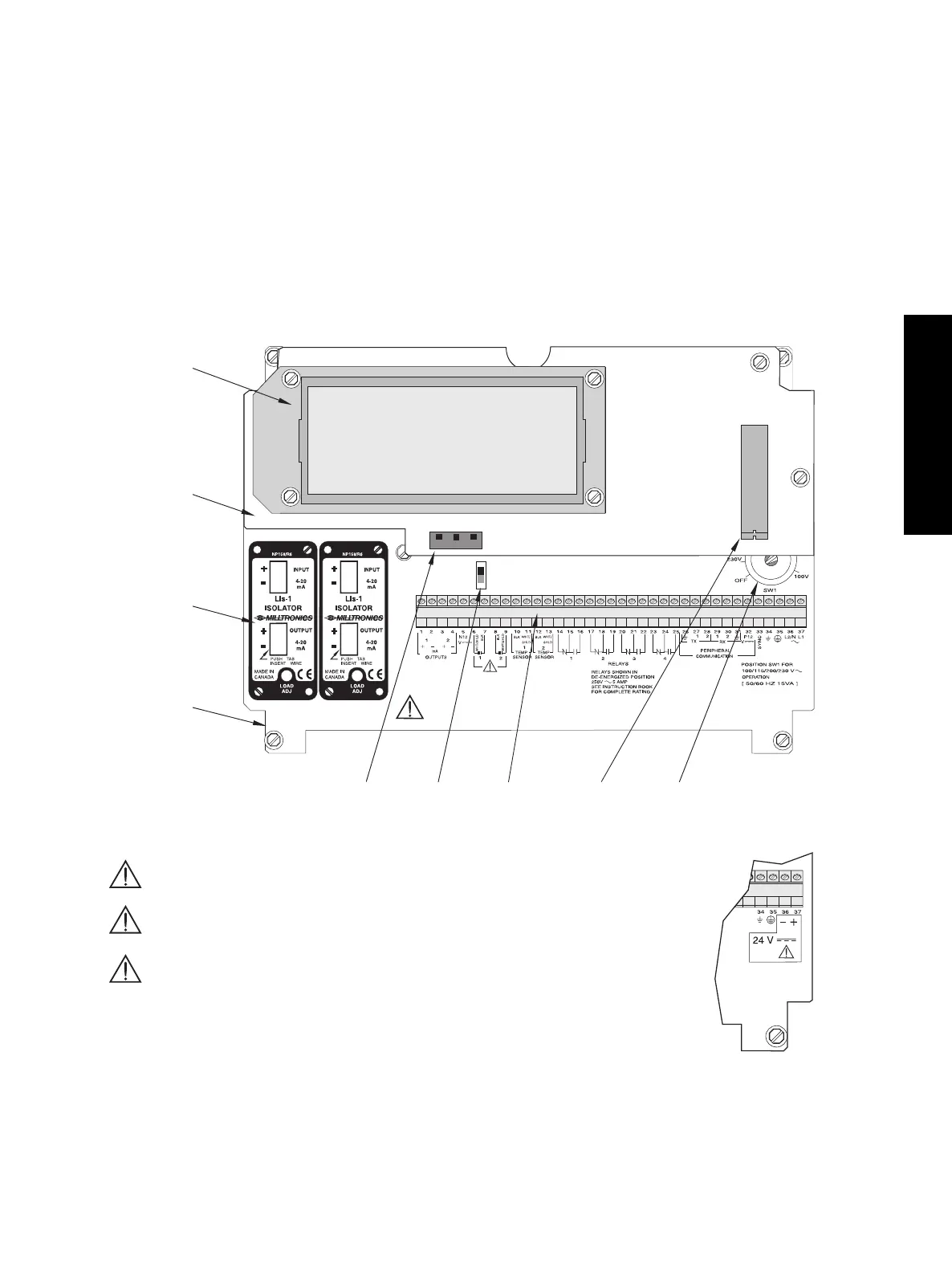

SW1 "Power"
selection
(AC Only)
Eprom
SW 2
"Tripper/
NORM"
scope
connections
terminal
block
display
board A
Isolators
(optional)
board B
Relay contact terminals are for use with equipment
having no accessible live parts and wiring having
insulation suitable for at least 250 V.
The maximum allowable working voltage between
adjacent relay contacts shall be 250 V.
Power connections for dc operation.
Hazardous voltage present on transducer terminals during operation.
dc terminals shall be supplied from an SELV source in
accordance with IEC 1010-1 Annex H.
All field wiring must have insulation suitable for at least 250 V.
INSTALLATION
PL-508 11
