POWER
Before making the power connection, ensure proper voltage selection.

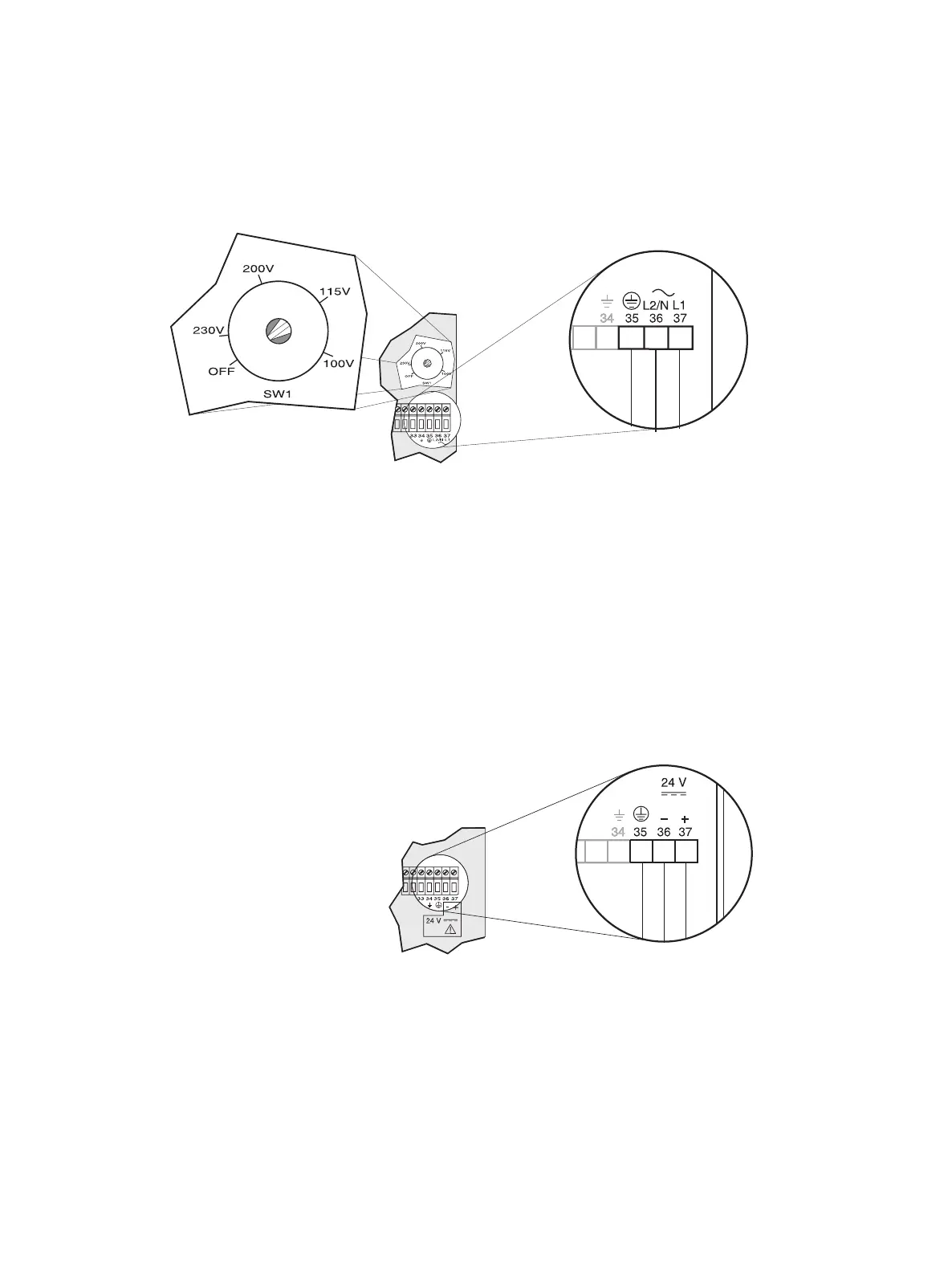

AC Supply Wiring
The equipment must be protected by a 15 A fuse or
circuit breaker in the building installation.
A circuit breaker or switch in the building installation, marked as the disconnect switch,
shall be in close proximity to the equipment and within easy reach of the operator.
DC Supply Wiring ( 24 V )
Never operate the DPL+ with the enclosure lid open, or with the
ground (earth) wire disconnected.
Ensure that any associated alarm or control equipment is
disconnected until satisfactory operation is verified.
SW 1 switch shown in the
‘OFF’ position.
Select appropriate voltage.
100 / 115 / 200 / 230 V
50 / 60 Hz
select voltage via SW 1
18 to 30 V dc
PL-508 16
