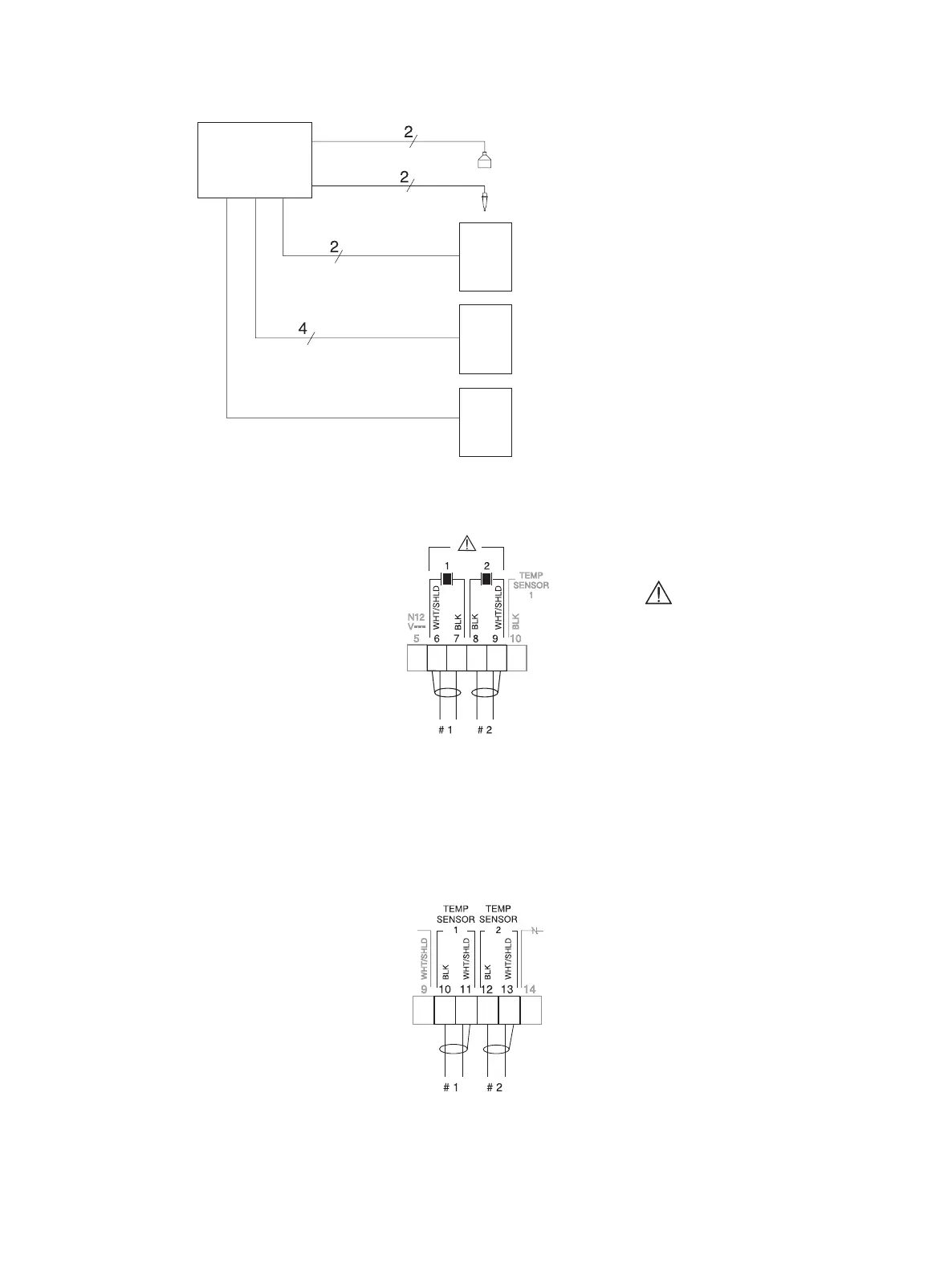

SYSTEM DIAGRAM
Maximum system capability. Not all components or their maximum quantity may be required.
TRANSDUCER
Transducer cables must be run in a grounded metal conduit separate from
other wiring (except TS-3 temperature sensor wiring, if applicable).
TEMPERATURE SENSOR
Use TS-3 temperature sensors only. Don’t jumper the terminals if TS-3’s are not used.
to transducers
Belden 8760 (or equivalent)
18 AWG, 2 wire, shielded / twisted
to TS-3 (s)
AiRanger
DPL Plus
Milltronics transducer, see Specifications
Milltronics TS-3, temperature sensor
customer device
customer alarm, pump or control device
Milltronics BIC-2, buffered interface converter
communication loop
relay output
mA output
Hazardous voltage present
on transducer terminals
during operation.
PL-508 12
