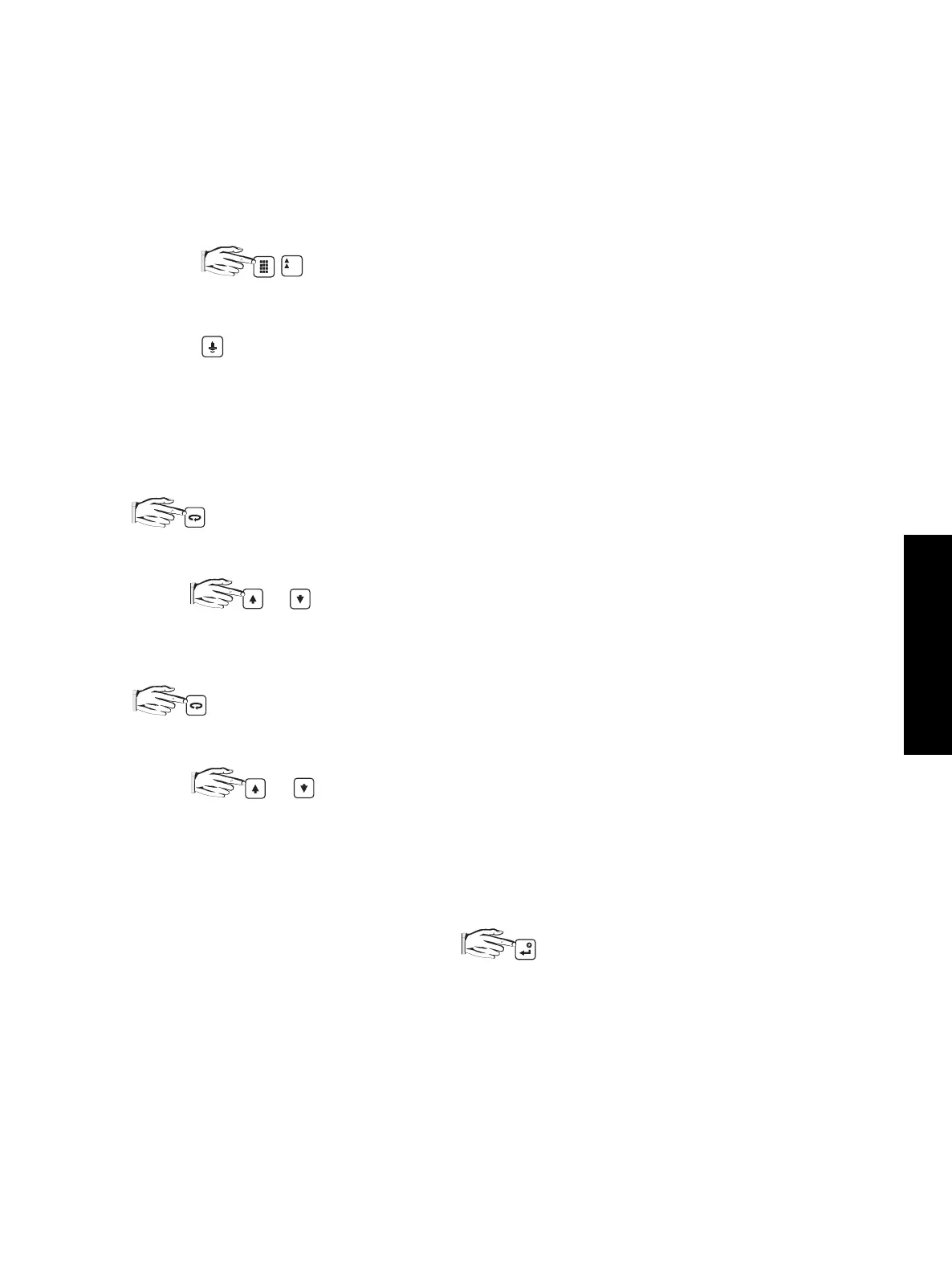

PROGRAM MODE ENTRY
Upon initial power application, the DPL+ displays "OFF". To enter the program mode...
1. Ensure the enclosure lid is secured by the 6 captivated screws.
2. Place the infrared programmer in the enclosure lid recess (no wiring or fastening required).
3.
When the program mode is entered after RUN mode operation, all operating data is retained in memory.
Relay status and mA output values are "held" at "last known" values (unless affected by a parameter
alteration or is pressed) until the RUN mode is re-entered. The RUN mode is automatically re-entered if
the DPL+ is left unattended in the program mode for an extended period.
PARAMETER VALUE ALTERATION
In the program mode...
1. as required to underline the Parameter Number display field and...
a) key in the desired Parameter Number, (
direct access
) or...
b) or as required (scroll access).
(As preset, Quick Start Parameters, and previously altered parameters may be scroll accessed ).
2. as required to underline the Point Number display field and...
a) key in the desired Point Number, (
direct access
) or...
b) or as required, (scroll access).
To alter the Parameter Value for all Point Numbers at
once, select Point Number 00.
3. With the desired Parameter Number and Point Number displayed...
key in the desired Parameter Value and,
Record each Parameter Value alteration on the appropriate
PROGRAMMING CHART for future reference, (especially should
complete reprogramming be required).
If Parameter Value alteration is not permitted, access the
Lock parameter (P000) and enter the security code
(See Programming Security).
%
PROGRAMMING
PL-508 21
