To save a manual record:
Copies the echo profile record in the scope
buffer and saves it in the selected address in
the record library. The parameter value field
displays the new record ordinates.
To display a record
Copies the echo profile record
in the selected address to the
scope buffer, for display.
To delete a record:
Deletes the echo profile record in the
selected address. Parameter value
returns to ‘ - - - - ’.
* Access the Scope Displays (P810) parameter to select the Transducer.
P331 (G) AUTO RECORD ENABLE
Use this feature (if desired) to enable/disable the Auto Profile Record function.
values: 0 = off
1 = on
P 332 (G) AUTO RECORD TRANSDUCER
Use this feature (if desired) to specify the Transducer Point Number for which
Auto Profile Records are saved.
This Feature is preset to Point Number 1.
values: 0 = any Transducer
1 = Transducer 1 (preset)
2 = Transducer 2
P333 (G) AUTO RECORD INTERVAL
Enter the time (in minutes) to elapse after an Auto Profile Record is saved before another
Auto Profile Record can be saved (subject to all other restrictions).
values: 0.000 to 9999 (preset to 120 minutes)
%
C

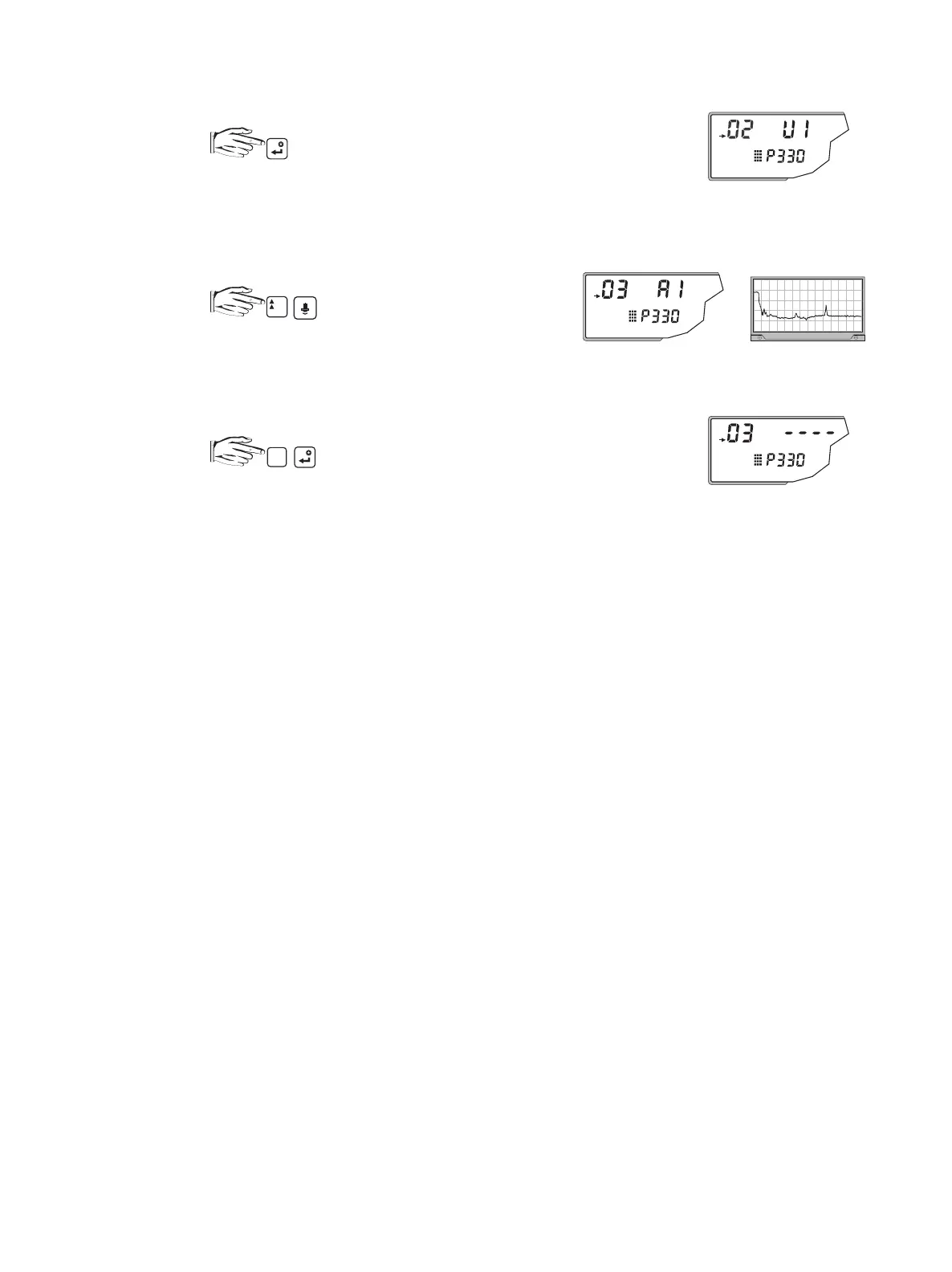

e.g. manually initiated record from
transducer 1 saved in address 2
e.g. oscilloscope displays record in address 3
e.g. record deleted, address 3 clear
PL-508 48
