TEST PARAMETERS (P900 to P913)
Test Parameters are intended for use by Milltronics Service personnel.
P900 (V) SOFTWARE REV. #
Access this parameter to determine the EPROM Rev. # without removing the enclosure lid.
values: 00.00 to 99.99
P901 (V) MEMORY
to activate the DPL+ memory test.
When the test is successful, "PASS" is displayed. Otherwise, one of the following values is
displayed, indicating the type of memory failure.
values: PASS (memory test successful)
F1 = RAM
F2 = NOVRAM
F3 = EEPROM
F4 = EPROM
P902 (V) WATCHDOG
to reset the microprocessor.
On successful completion (in about 15 seconds) the DPL+ enters the RUN mode.
P903 (V) DISPLAY
to activate the display test.
All LCD segments and symbols are temporarily displayed.
P904 (G) KEYPAD

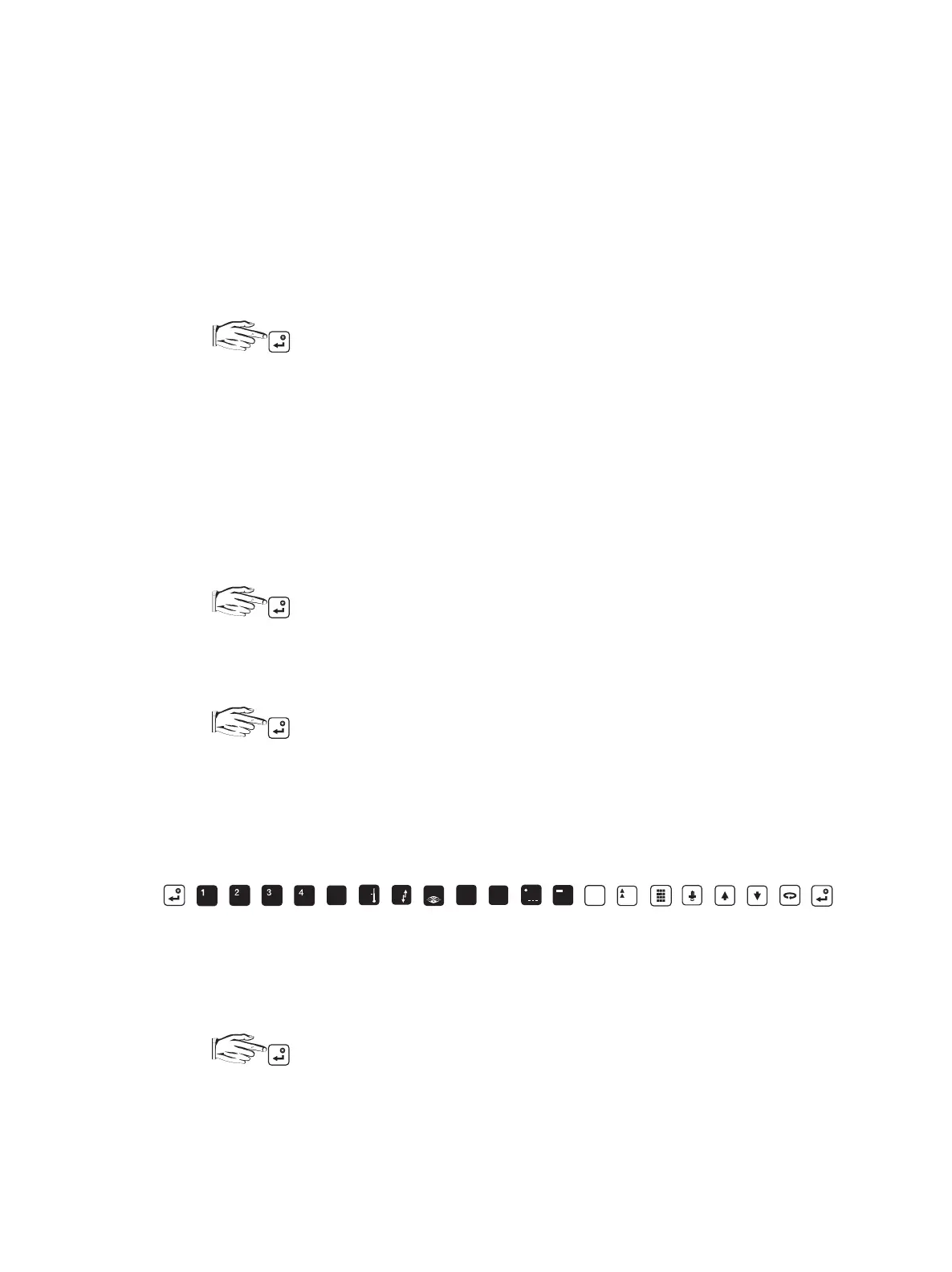

Press each keypad key in the following sequence:
As each key is pressed, the associated keypad number is displayed. On successful test
completion "PASS" is displayed. "FAIL" is displayed if a key is pressed out of sequence
or the programmer keypad malfunctions.
P905 TRANSMIT PULSE
to supply repeated transmit pulses to the transducer and/or view the transducer
operating frequency (automatically altered by (P004) Transducer) for the Point Number displayed.
This feature may be used to monitor the transmit pulse with an oscilloscope connected
to the transducer terminals.
values: 10.00 to 60.00
mA
5
6
7
8
9
0
P
PX XX
C
%
PL-508 72
