PROGRAMMING
Operator programmable features are identified by a Point Number and Parameter Number. The Point Number
refers to the Transducer (vessel) Number, Relay Number, mA Output Number, or TS-3 Number
as identified by the Point Type indicators. Parameter Numbers have a preset Parameter Value for each
Point Number.
Programming is accomplished by altering the preset Parameter Values as required to obtain the RUN mode
operation desired. All operator programmable features are defined in the Quick Start Parameters, Application
Parameters, and Enhancement Parameters sections of this instruction manual.

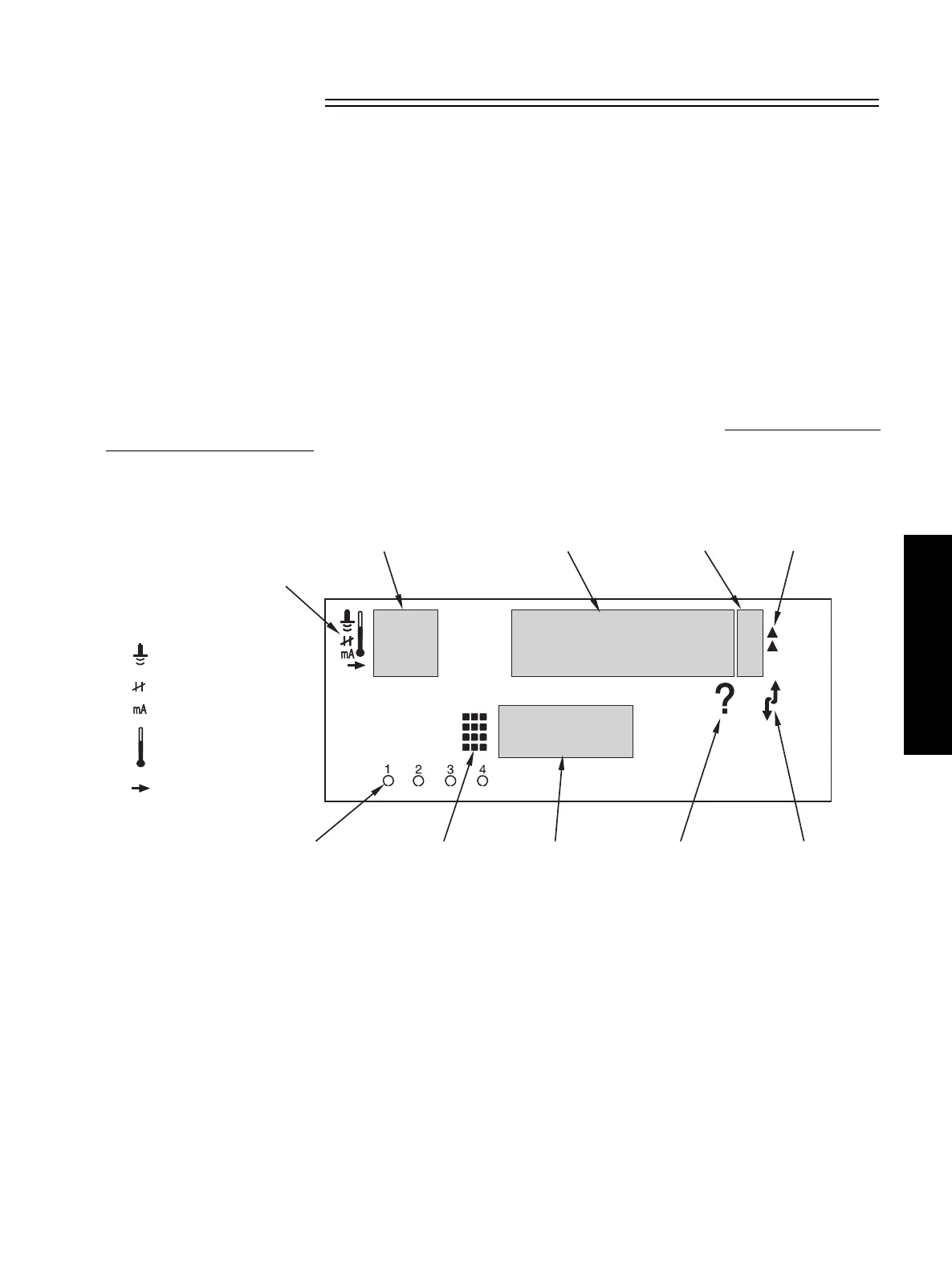

DISPLAY
In the program mode, the Point Type, Point Number, Parameter Number, and Parameter Value (as well as a
variety of other programming information) may be viewed.
Note that many indicators are specific to certain programming conditions and therefore,
all indicators are not
displayed at any given time.
Parameter Number the programmable feature the Parameter Value pertains to.
Point Type the Point Number refers to a Transducer, Relay, mA Output, or TS-3.
Point Number the Transducer, Relay, mA Output or TS-3 # the Parameter Value pertains to.
Parameter Value the current value of the Parameter Number for the Point Number displayed.
Percent indicates the Parameter Value is displayed in percent.
Invalid Entry indicates the value entered is questionable (are you sure?).
Auxiliary Function indicates Auxiliary Function access (applies to only some Parameter Numbers).
Scroll Access Tag indicates the Parameter Value may be scroll accessed.
Program Mode indicates the program mode is accessed.
Parameter
Value
Point Number
Point Type
Units
Invalid
Entry
Auxiliary
Function
Scroll
Access
Tag
Parameter
Number
Program
Mode
Transducer
Relay
Analog Output
TS-3
Index
Relay in
Service
PROGRAMMING
PL-508 19
