OPERATION
With Quick Start parameter alteration complete, the DPL+ may be put into operation. (If APPLICATION or
ENHANCEMENT PARAMETERS are altered, OPERATION is altered accordingly from that indicated).

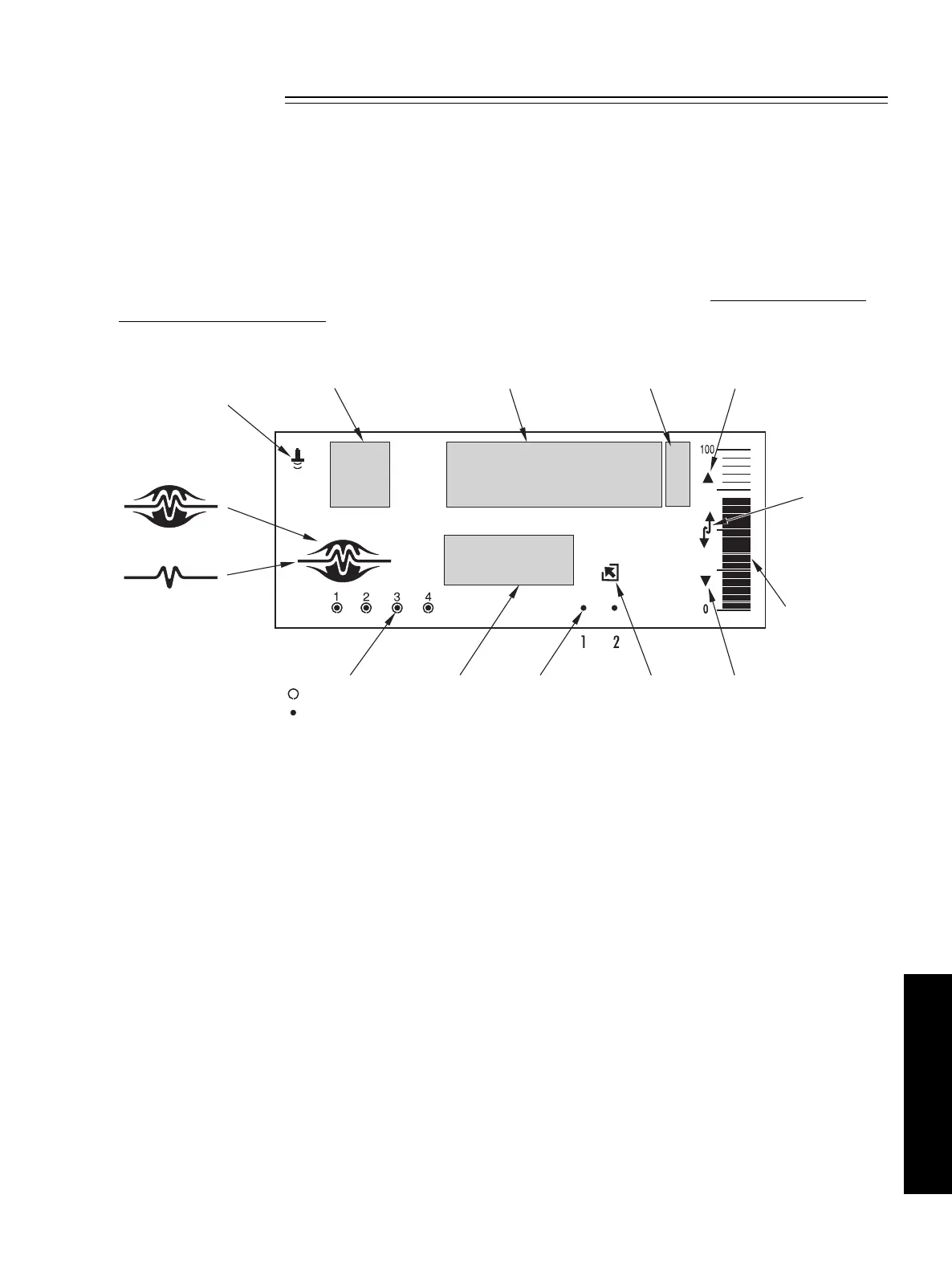

DISPLAY
In the RUN mode, the following values and indicators may be observed.
Note that many indicators are specific to certain operating conditions and therefore,
all indicators are not
displayed at any given time.
Transducer the current display pertains to a transducer measurement.
Point Number the Point Number (1 to 3) the current display pertains to.
Reading displays the level, space, or distance (flashes error messages, if any).
Percent the Reading is in percent.
Hi Alarm indicates level has risen above 80% (and not yet fallen below 75%).
Lo Alarm indicates level has fallen below 20% (and not yet risen above 25%).
Filling Indicator indicates the vessel is filling.
Emptying Indicator indicates the vessel is emptying.
Bar Graph indicates the
absolute
(always a positive value) material level from 0 to 100%.
Data Out indicates the DPL+ is transmitting data to the Peripheral Communications terminals.
Scanning Indicators indicate the Point Number scanned (independent from the Point Number display).
Auxiliary Reading as selected by the keypad (terminal numbers if transducer or TS-3 is wired wrong).
Relay Number indicates the relays programmed for operation.
Relay Status indicates the relay is de-energized (alarm is activated).
Normal Operation indicates operating conditions are good and the Reading is reliable.
Failsafe Operation indicates operating conditions are poor and the Reading may be incorrect.
ReadingPoint Number
Transducer
Normal
Operation
Failsafe
Operation
Relay
Number
Status
Auxiliary
Reading
Scanning
Indicators
Data Out
Indicator
Lo Alarm
Indicator
Hi Alarm
Indicator
Bar
Graph
Filling /
Emptying
Indicator
Units
OPERATION
PL-508 27
