– 3.31 –
Function Setting Description
MARK DETECT OFF This setting is specified with cutting a normal sheet instead
of the contour of a pattern.
A Only marks in direction A (TP1-TP2) will be detected. In
the case where two or more sheets (same in type and mark-
to-mark distance in direction A) are to be cut, the mark
detection B may be cancelled.
AB Marks in directions A and B (TP1-TP2-TP3) will be detected.
This setting is specified when the sheet type is changed.
PAPER HOLD ON The sheet clamps mounted on the carriage hole the sheet to
facilitate the mark detection.
OFF The sheet clamps are not used for the mark detection. If the
sheet clamps are not used, the clamp detection may fail.
DIST.COMP. ON This sheet is specified in the case where the distance between
printed marks is different from that between marks in terms
of data.
OFF The device will not conduct the distance compensation.
Once the distance compensation is executed, it may be
cancelled provided that to or more sheets (same in type and
mark-to-mark distance in direction A) are to be cut.
TYPE2
Set the pinch roller
away from the marks.

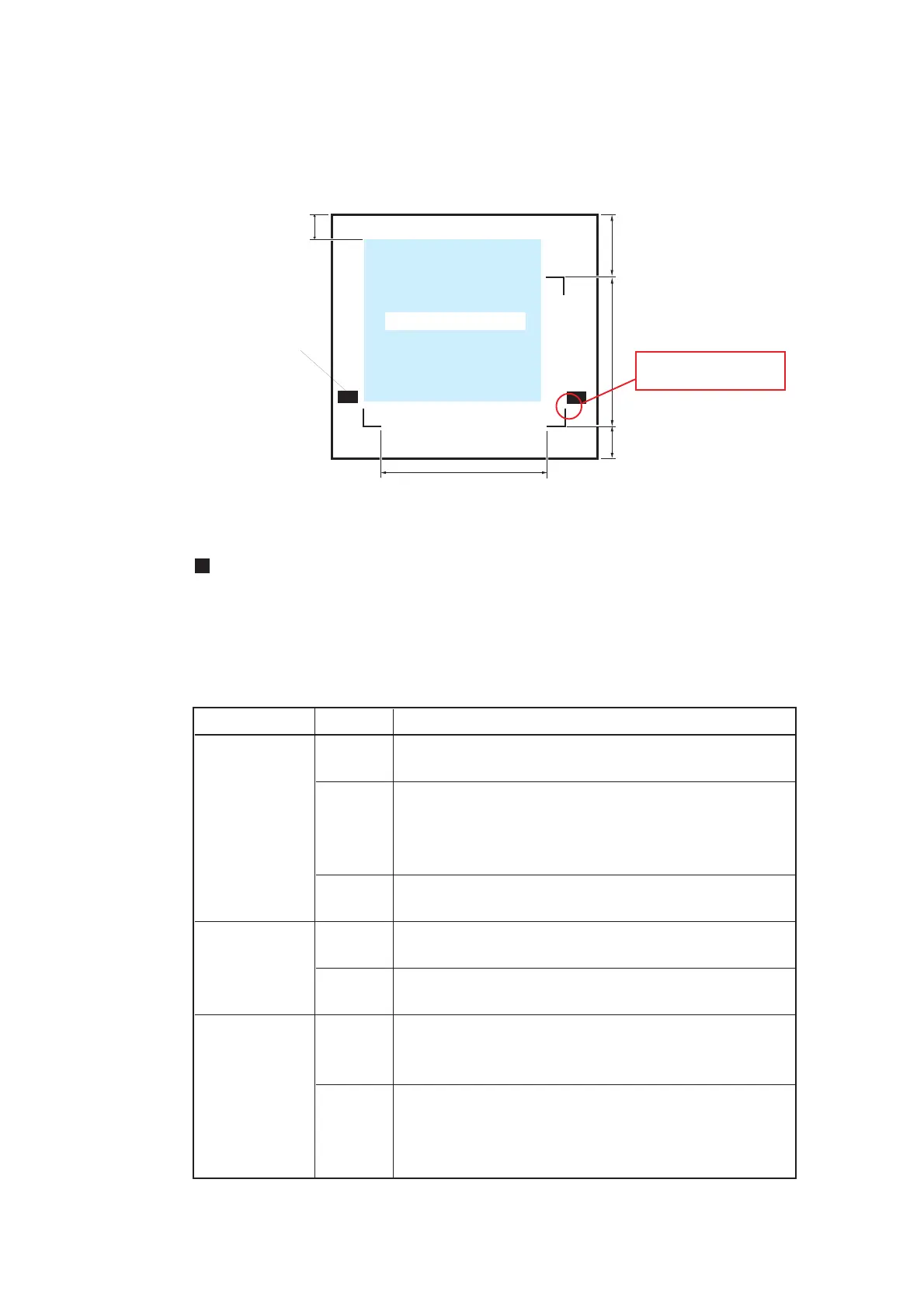

Printable, cuttable range
Pinch roller
30 mm or more from
the sheet backend
B: 50 mm or more
A: 50 - 2000 mm
40 mm or more from
the sheet backend
20 mm or more from
the sheet
Operation settings for detection of marks
The settings of the following three functions are specified when detecting a mark.
To Next Page
