Repair and Disassembly Disassemble the Assemblies
agents are water and green soap tincture. Ensure thar the O2 flush button is completely dry
before reinstall it.

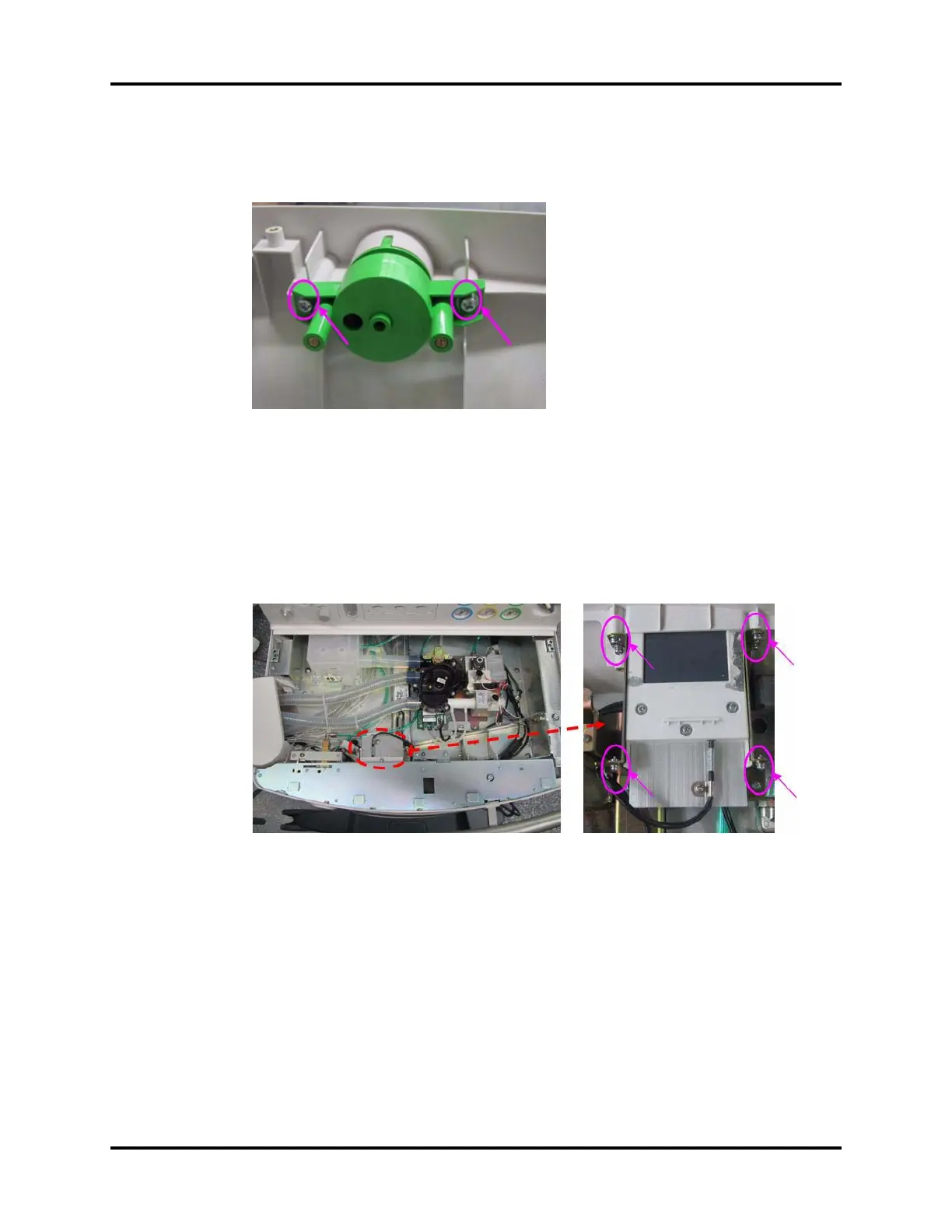

FIGURE 6-65
6.2.3.7 Remove the Touch Panel
1. Remove the work surface cover plate and refer to “Remove the Work Surface Cover Plate” on
page 6-28..
2. Remove the metal cover plate and refer to “Remove the Metal Cover Plate” on page 6-29..
3. Unplug the touch panel data cable.
4. Unscrewthe six screws on the touch panel to remove the panel.
FIGURE 6-66
6.2.3.8 Remove the separate ACGO outlet
1. Remove the work surface cover plate and refer to “Remove the Work Surface Cover Plate” on
page 6-28...
2. Remove the metal cover plate and refer to “Remove the Metal Cover Plate” on page 6-29.
3. Remove the Rotating Block of Breathing Circle and refer to “Remove the Rotating Block of
Breathing Circle” on page 6-60.
4. Unplug the tubes from the separate ACGO outlet.
5. Unscrew the four screws on the separate ACGO outlet and romove,and pull out the outlet to
remove the cover sheet.
