Operator’s Manual of Anesthesia System 9 - 15
Maintenance Cleaning and Disinfection

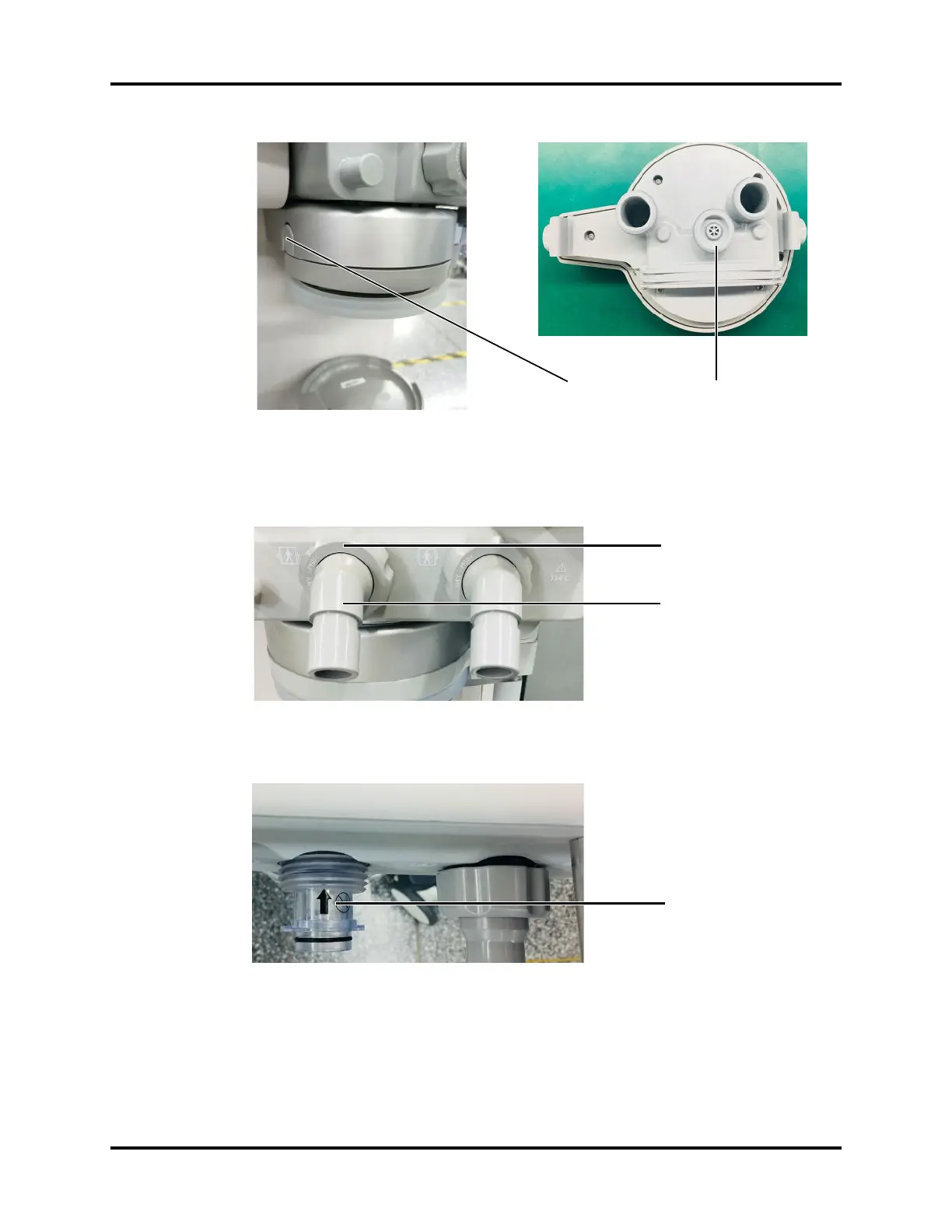

Figure 9-10 Remove bypass
9.7.3.1.6 Flow Sensor
1. Loosen the locking nut anticlockwise, remove the inspiration/expiration connector.
Figure 9-11 Remove the inspiration/expiration connector and locking nut
2. Remove the flow sensor from the breathing system.
Figure 9-12 Remove the flow sensor
Buckle button Bypass assembly
Locking nut
Inspiration/
expiration
connector
Flow sensor

Mindray A9 Specifications

General

Type	Anesthesia Workstation
Integrated Gas Analysis	Yes
Backup Battery	Yes
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 55°C
Battery Type	Lithium-ion
Ventilation Modes	Volume Control, Pressure Control, SIMV, Manual Ventilation
Display	Touchscreen
Patient Monitoring	ECG, SpO2, NIBP, EtCO2, Temperature
Connectivity	Ethernet, USB
Portability	Mobile (with wheels)
Battery Life	Minimum 90 minutes (typical)
Altitude	Up to 3000 meters
Power Supply	100-240 VAC, 50/60 Hz
Charging Time	Approximately 4 hours
Storage	Internal storage for patient data and system logs
Supported Languages	Multiple languages
Certifications	CE, FDA
