Mindray A9 Operating Instructions

Cleaning and Disinfection Maintenance
9 - 16 Operator’s Manual of Anesthesia System
9.7.3.1.7 Bag Arm
At the base of the bag arm, locate the retaining ring. Turn the ring anticlockwise until it is no longer
threaded.

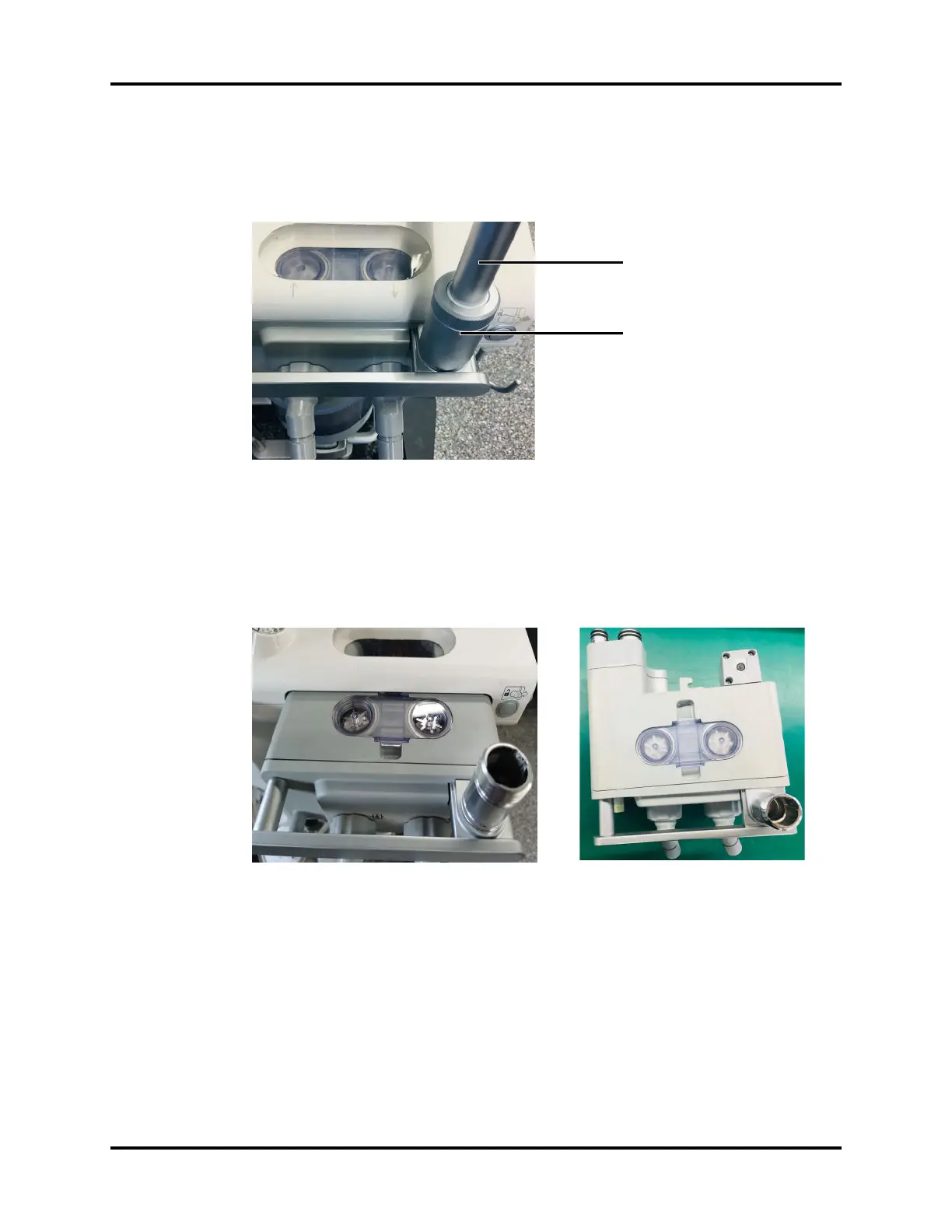

Figure 9-13 Remove the bag arm
3. Lift the bag arm from the breathing system body.
9.7.3.1.8 Breathing System Body
Hold the handrails on one side of the breathing system body, firmly separate and slide it away from its
mounting arm.
Figure 9-14 Remove the breathing system body
9.7.3.1.9 Inspiration and Expiration Valves
1. Press the buckle to remove the valve dome from the breathing system body.
Retaining ring
Bag arm

Mindray A9 Specifications

General

Type	Anesthesia Workstation
Integrated Gas Analysis	Yes
Backup Battery	Yes
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 55°C
Battery Type	Lithium-ion
Ventilation Modes	Volume Control, Pressure Control, SIMV, Manual Ventilation
Display	Touchscreen
Patient Monitoring	ECG, SpO2, NIBP, EtCO2, Temperature
Connectivity	Ethernet, USB
Portability	Mobile (with wheels)
Battery Life	Minimum 90 minutes (typical)
Altitude	Up to 3000 meters
Power Supply	100-240 VAC, 50/60 Hz
Charging Time	Approximately 4 hours
Storage	Internal storage for patient data and system logs
Supported Languages	Multiple languages
Certifications	CE, FDA
