Mindray A9 Operating Instructions

Operator’s Manual of Anesthesia System 9 - 17
Maintenance Cleaning and Disinfection

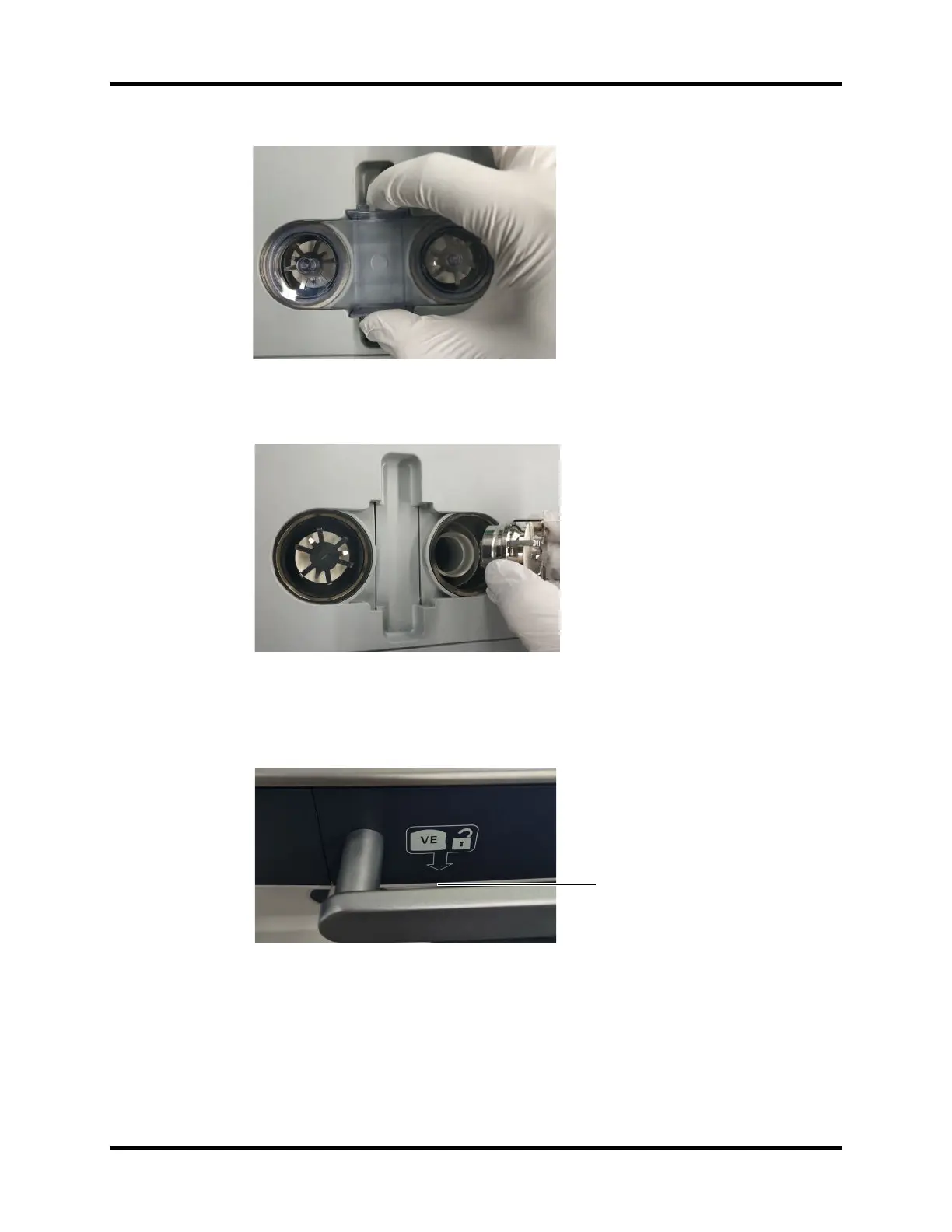

Figure 9-15 Remove the valve dome
2. Lift the inspiration and expiration valves from the breathing system body.
Figure 9-16 Remove the inspiration and expiration valves
9.7.3.1.10 Volume Exchanger
1. As shown in the figure, pull the unlocking button outward.
Figure 9-17 Open the volume exchanger cover
2. Put out the volume exchanger following the screen-printed instructions.
Unlocking
Button

Mindray A9 Specifications

General

Type	Anesthesia Workstation
Integrated Gas Analysis	Yes
Backup Battery	Yes
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 55°C
Battery Type	Lithium-ion
Ventilation Modes	Volume Control, Pressure Control, SIMV, Manual Ventilation
Display	Touchscreen
Patient Monitoring	ECG, SpO2, NIBP, EtCO2, Temperature
Connectivity	Ethernet, USB
Portability	Mobile (with wheels)
Battery Life	Minimum 90 minutes (typical)
Altitude	Up to 3000 meters
Power Supply	100-240 VAC, 50/60 Hz
Charging Time	Approximately 4 hours
Storage	Internal storage for patient data and system logs
Supported Languages	Multiple languages
Certifications	CE, FDA
