Mindray A9 Operating Instructions

Operator’s Manual of Anesthesia System 1 - 13

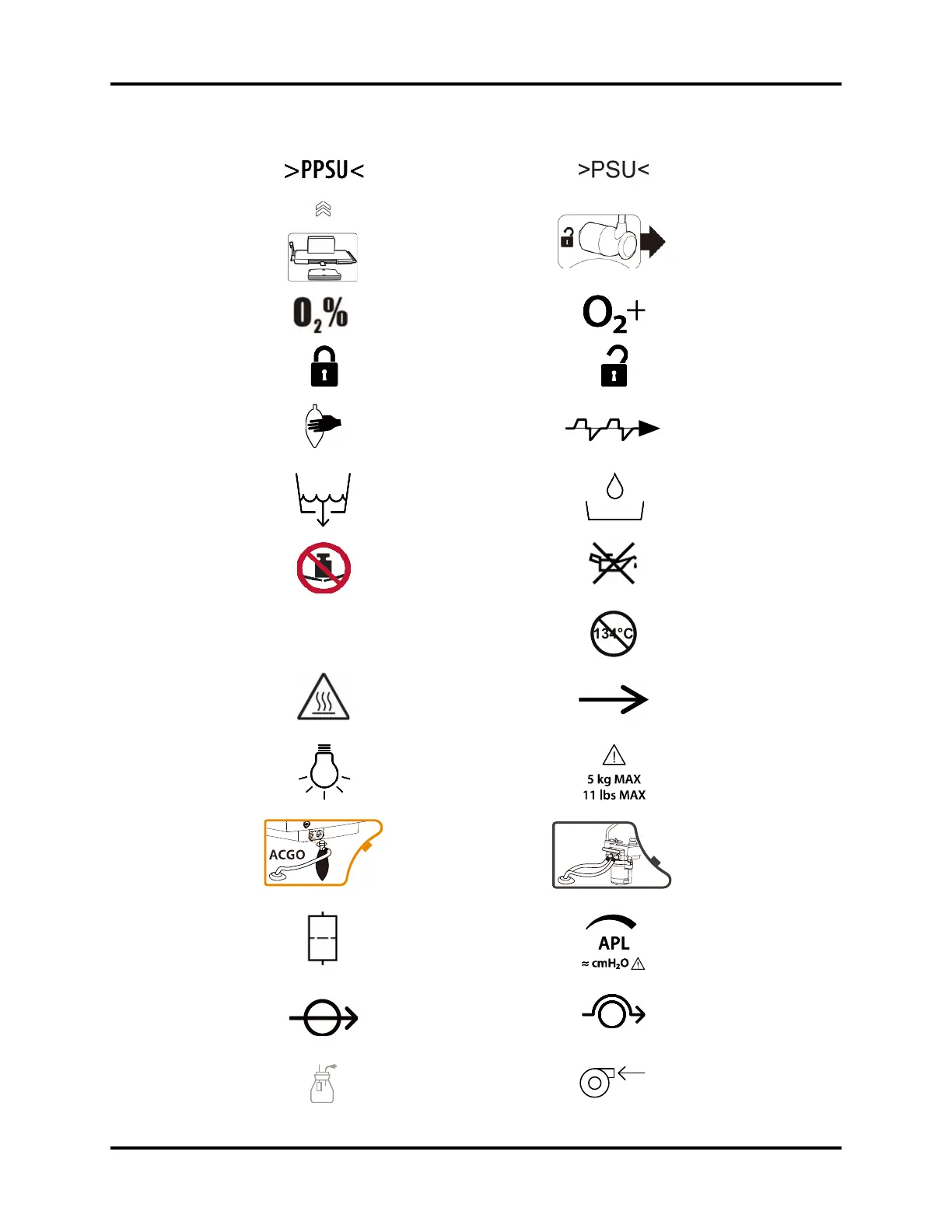

Safety Symbols
Material: polyethylene
sulfone (PPSU)
Material: polysulfone
Assemble volume
exchanger
Disassemble O
2
sensor
O
2
Sensor Connector Gas: O
2
flush button
Lock/Unlock: locked Lock/Unlock: unlocked
Manual ventilation Automatic ventilation
Water Drain Watertrap
No heavy objects:
Do Not Crush
Do Not Oil
Autoclavable Not Autoclavable
Caution: Hot Direction
Electrical: light Weight limit
ACGO mode
Automatic ventilation
mode
Filter Access APL valve
Canister opened Canister closed
Negative pressure
suction device
Negative pressure gas
supply
134°C
134°C

Mindray A9 Specifications

General

Type	Anesthesia Workstation
Integrated Gas Analysis	Yes
Backup Battery	Yes
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 55°C
Battery Type	Lithium-ion
Ventilation Modes	Volume Control, Pressure Control, SIMV, Manual Ventilation
Display	Touchscreen
Patient Monitoring	ECG, SpO2, NIBP, EtCO2, Temperature
Connectivity	Ethernet, USB
Portability	Mobile (with wheels)
Battery Life	Minimum 90 minutes (typical)
Altitude	Up to 3000 meters
Power Supply	100-240 VAC, 50/60 Hz
Charging Time	Approximately 4 hours
Storage	Internal storage for patient data and system logs
Supported Languages	Multiple languages
Certifications	CE, FDA
