Mindray A9 Operating Instructions

Anesthetic Gas Scavenging System (AGSS) Installation and Disassembly
3 - 10 Operator’s Manual of Anesthesia System
• When the gas path of the patient monitor does not meet the biological compatibility standard,
the patient monitor needs to scavenge the waste gas to the AGSS. Use the adapter as shown
below.

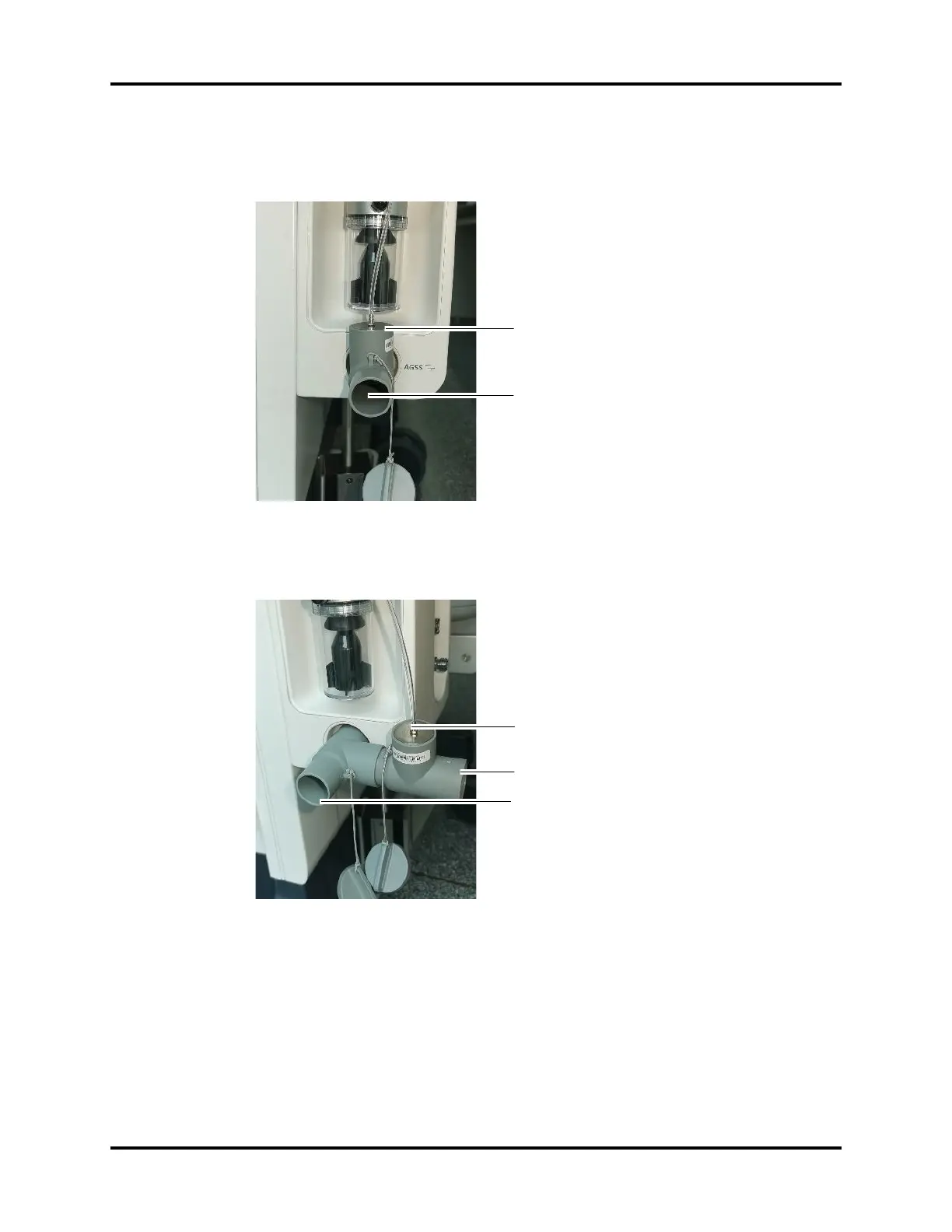

Figure 3-10 Passive AGSS (connecting to the patient monitor)
• When both the patient monitor and ACGO circuit need to scavenge the gas to the AGSS, use two
adapters (one adapter as Figure 3-9and one adapter as Figure 3-10) as shown below.
Figure 3-11 Passive AGSS (connecting to the patient monitor and ACGO circuit)
Connecting to the patient
monitor via sampling tube
Connecting to the hospital's
waste gas scavenging system
Connecting to the patient
monitor via sampling tube
Connecting to the ACGO circuit
Connecting to the hospital's
waste gas scavenging system

Mindray A9 Specifications

General

Type	Anesthesia Workstation
Integrated Gas Analysis	Yes
Backup Battery	Yes
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 55°C
Battery Type	Lithium-ion
Ventilation Modes	Volume Control, Pressure Control, SIMV, Manual Ventilation
Display	Touchscreen
Patient Monitoring	ECG, SpO2, NIBP, EtCO2, Temperature
Connectivity	Ethernet, USB
Portability	Mobile (with wheels)
Battery Life	Minimum 90 minutes (typical)
Altitude	Up to 3000 meters
Power Supply	100-240 VAC, 50/60 Hz
Charging Time	Approximately 4 hours
Storage	Internal storage for patient data and system logs
Supported Languages	Multiple languages
Certifications	CE, FDA
