Mindray M6 User Manual

12-18 Probes and Biopsy
 NGB-006/ NGB-007

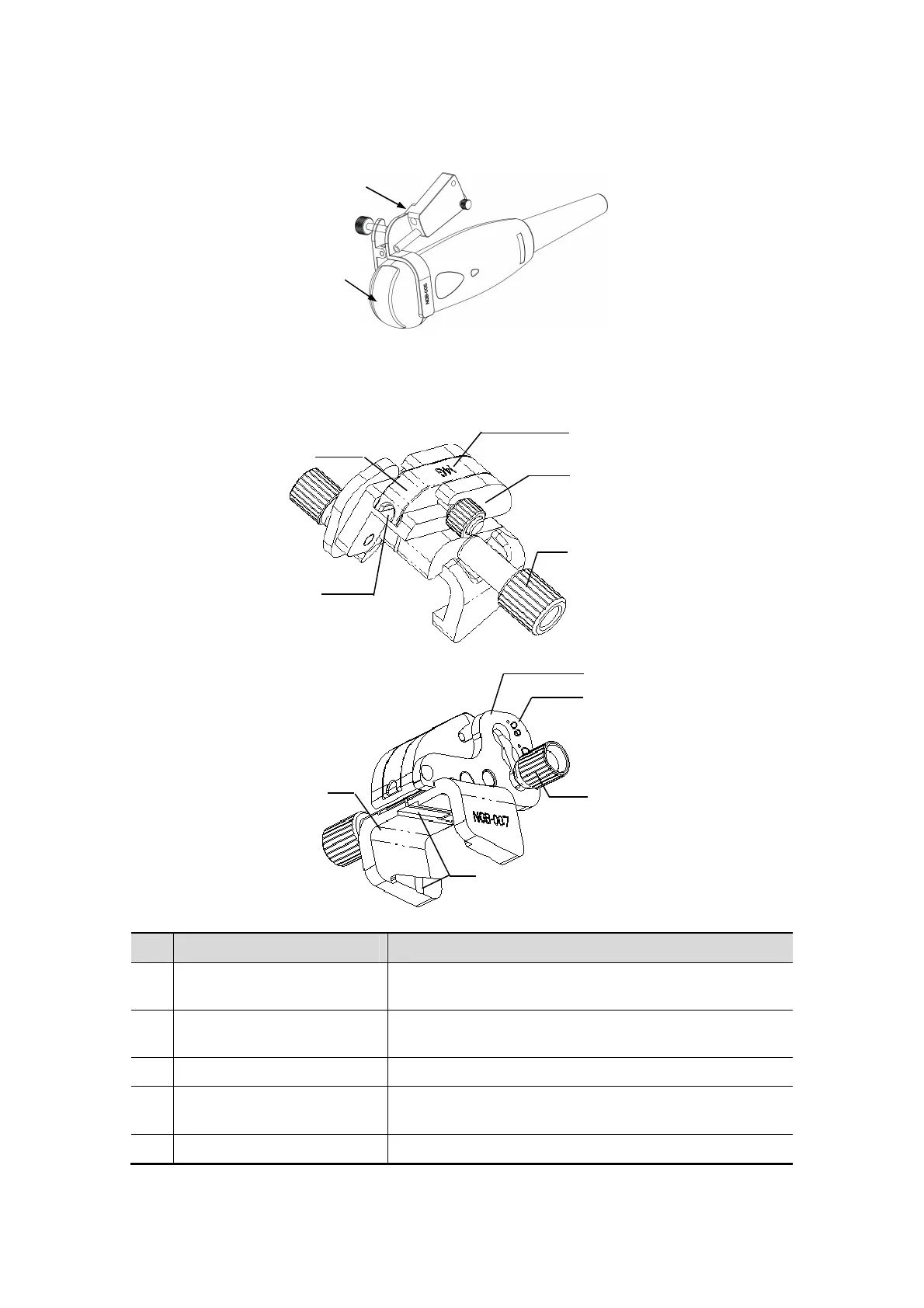

 Metal needle-guided bracket:
No. Name Description
1.
Support of needle-guided
bracket
Used for installing the needle-guided bracket on the
probe.
2.
Groove and tab of the
needle-guided bracket
Respectively matches with the tab and groove of the
probe
3. Angle adjusting base There are 3 types of angles available to be adjusted.
4.
Angle shift sign(40°, 50°,
60°)
Matched with the biopsy angle (40°, 50°, and 60°).
5. Angle pinch nut Used for fixing the angle lock at a chosen angle.
Probe
Needle-guided
bracket
6
9
7
10
8
2
4
3
5
1

Mindray M6 Specifications

General

Type	Portable Ultrasound System
Applications	Abdominal, Cardiac, Vascular, Small Parts, Musculoskeletal
Operating System	Windows-based
Ports	Ethernet, USB
Supported Probes	Convex, Linear, Phased Array
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
